CP 215518HV (80658) - Snapper 21" Walk-Behind Mower, 5.5hp CUTTING DECK, BLADE Parts Diagram

21" Walk-Behind Mower, 5.5hp

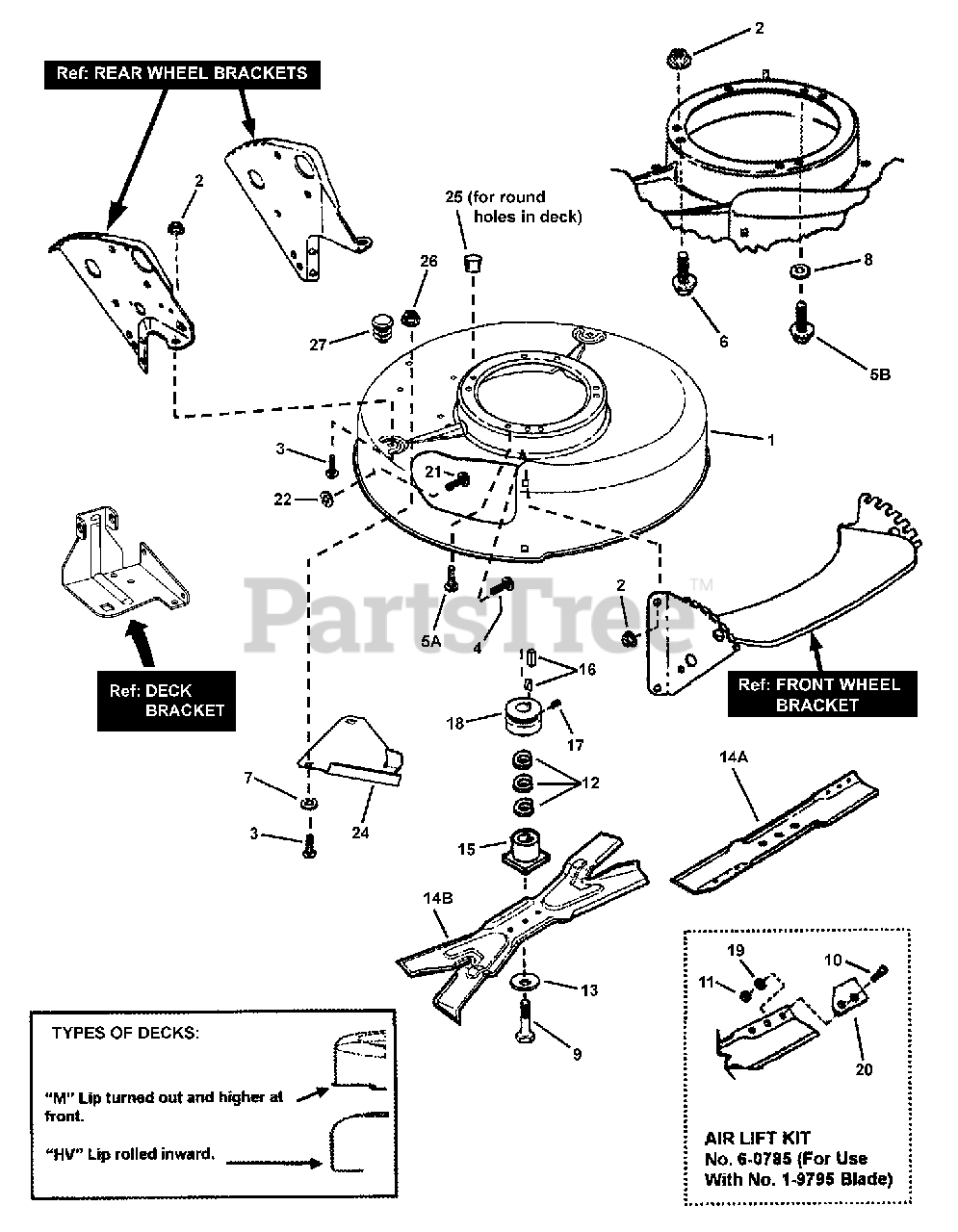

CUTTING DECK, BLADE Parts Diagram

  • Title

1

Snapper 7057663

* DECK, Mower (incl. painted "HV" Deck w/Wheel Brackets & Decals)
(Superseded to 7500549DYP)

Note: CP215518HV & CP216018KWV

$

$

Not available

1

Snapper 7057884

* ASSEMBLY, Non-Adjustable Air, 21" Deck
(Superseded to 7600034DYP)

Note: Was 57667 for CRP216018KWV

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
(Superseded to 703798)

Note: or 92061

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, GR 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5A

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping
(Superseded to 704000)

Note: engine mount bolts (Kawasaki)

$4.99

$

In Stock, only 4 left!

0

5B

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap GR5
(Superseded to 703301)

Note: engine mount bolts (Honda)

$3.99

$

In Stock, Qty 6

0

6

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR5
(Superseded to 7091602SM)

Note: engine mount bolts (Honda)

$3.99

$

In Stock, Qty 5

0

7

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

Note: on engine mount bolts (Honda)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

Note: CP215518HV

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7090228

SCREW, 5/16-24 x 21/32" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

11

Snapper 7091297

NUT, 5/16-24 Hex, GR5
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7044770

1/16" THICK SPACER, Blade Hub
(Superseded to 7044770YP)

Note: CRP216018KWV

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

14A

Snapper 7026691

BLADE, Cutter (Standard Lift)
(Superseded to 7026691BZYP)

Note: CP215518HV & CP216018KWV

$23.99

$

In Stock, Qty 20+

0

14B

Snapper 7026407

BLADE, 21" Ninja (Quad Edge)
(Superseded to 7026407AYP)

Note: CRP216018KWV

$54.99

$

In Stock, Qty 7

0

15

Snapper 7015626

HUB, Blade Drive 25mm I.D.
(Superseded to 7015626YP)

Note: CP216018KWV, CRP216018KWV

$15.99

$

Usually ships in 2-12 days

0

15

Snapper 7012927

HUB, Blade Drive 7/8"
(Superseded to 7012927YP)

Note: CP215518HV

$13.99

$

In Stock, only 1 left!

0

16

Snapper 7010783

KEY, #505 Hi-Pro
(Superseded to 7010783YP)

Note: CP215518HV

$3.99

$

In Stock, only 2 left!

0

16

Snapper 7091214

KEY, #HP-506 Hi-Pro
(Superseded to 7091214YP)

Note: CP216018KWV & CRP216018KWV

$4.99

$

In Stock, only 2 left!

0

17

Snapper 7090201

SCREW, 5/16-18 Hex Socket Head
(Superseded to 7090201SM)

$

$

Not available

18

Snapper 7015780

PULLEY-Engine (25mm I.D. x 2-1/8 O.D.)
(Superseded to 7015780YP)

Note: CP216018KWV & CRP216018KWV

$30.99

$

Usually ships in 2-12 days

0

18

Snapper 7021822

PULLEY, Engine (1" I.D. x 2.275" O.D.)
(Superseded to 7021822YP)

Note: CP215518HV

$34.99

$

Usually ships in 2-12 days

0

19

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7032558

AIR LIFT
(Superseded to 7032558YP)

$9.99

$

Usually ships in 2-12 days

0

21

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7011762

COVER, Spark Plug
(Superseded to 7011762YP)

Note: not shown

$3.99

$

Usually ships in 2-12 days

0

60785

Snapper 7060785

KIT, Air Lift
(Superseded to 7060785YP)

Note: (Incl. items 10, 11, 19 & 20)

$

$

Not available

24

Snapper 7074568

COVER, Belt (Baffle)
(Superseded to 7074568YP)

$12.99

$

Usually ships in 2-12 days

0

25

Snapper 7045264

PLUG, 5/16" Hole
(Superseded to 7045264YP)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

27

Snapper 7046780

PLUG, Hole, Polyethylene
(Superseded to 7046780SM)

$4.99

$

In Stock, only 1 left!

0

* ENGINE, 5.5HP Honda Mod. GXV160-KA12

Note: used on CP215518HV

$

$

Not available

* ENGINE, 6HP Kawasaki Mod. Fj180V-AS13-R

Note: used on CP216018KWV & CRP21601/8KWV

$

$

Not available
