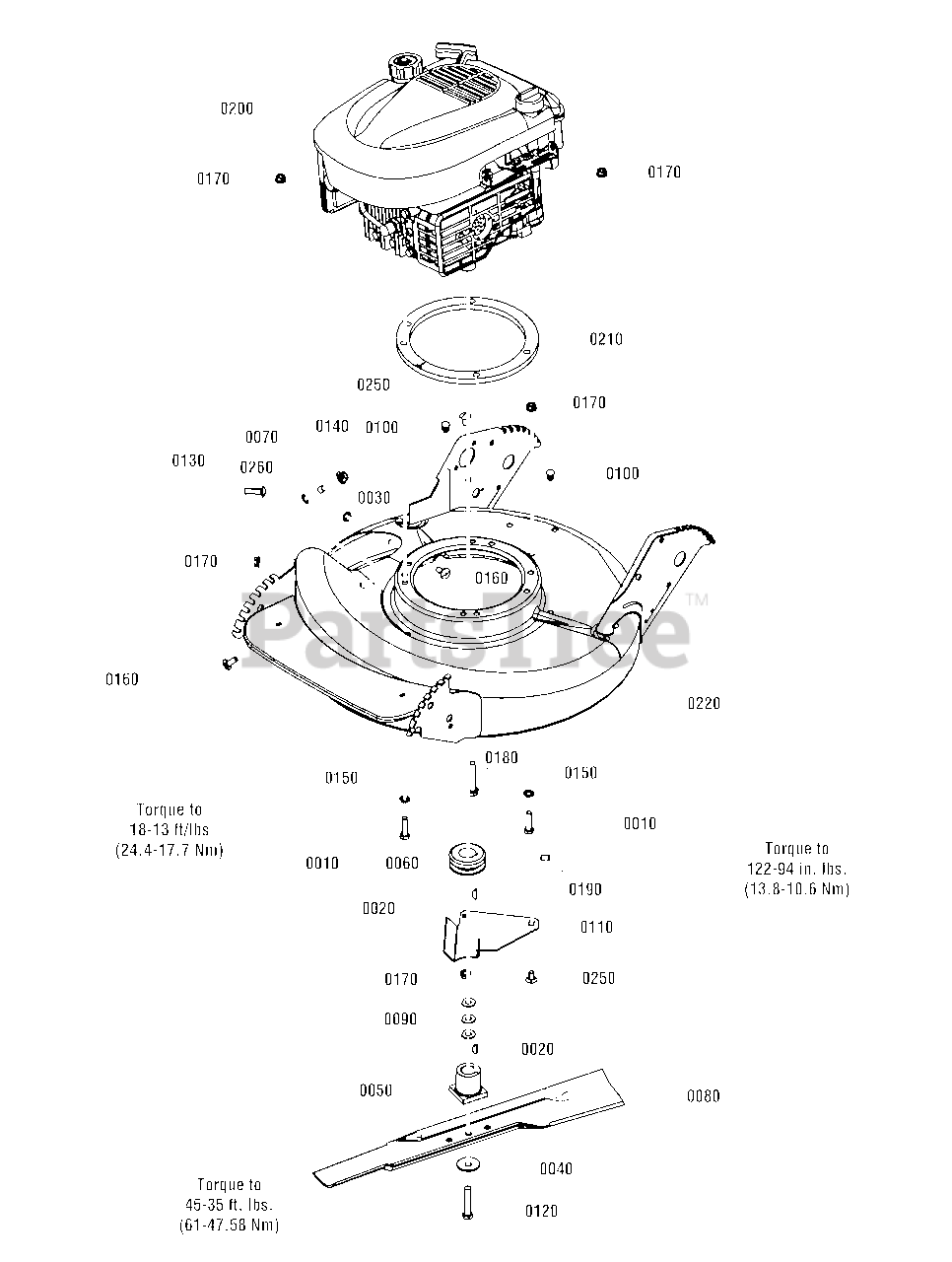

CP 215520HV (7800849-04) - Snapper 21" Walk-Behind Mower, 5.5hp Deck, Engine & Blade Group Parts Diagram

21" Walk-Behind Mower, 5.5hp

Deck, Engine & Blade Group Parts Diagram

  • Title

0010

Snapper 703299

SCREW, 5/16-24 X 1.25, Hex Head Cap, GR5, Zinc/Clear

$4.99

$

Usually ships in 2-12 days

0

0020

Snapper 7010783YP

KEY, HI-PRO, #505

$3.99

$

In Stock, only 3 left!

0

0030

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0260

Snapper 704015

WASHER, Flat, 5/16

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 7012927YP

HUB, Blade, 7/8" ID

$13.99

$

In Stock, only 1 left!

0

0060

Snapper 7021822YP

PULLEY, Engine, 1" ID X 2-1/8" OD, Yellow

$34.99

$

Usually ships in 2-12 days

0

0070

Snapper 7024340SM

SPACER, .375 OD X .316 ID X .305 L

$4.99

$

In Stock, only 4 left!

0

0080

Snapper 7026691BZYP

BLADE, 21" L, .97" Standard Lift

$23.99

$

In Stock, Qty 20+

0

0090

Snapper 7044770YP

SPACER, .874 OD X .385 ID X .060 L, YZ

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0110

Snapper 7074568YP

COVER, Belt, Zinc/Clear

$12.99

$

Usually ships in 2-12 days

0

0120

Snapper 703999

SCREW, 3/8-24 X 2, Hex Head Cap, GR5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

0130

Snapper 704002

BOLT, 5/16-18 X 1.125, Carriage, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

0140

Snapper 704001

NUT, 5/16-18 Large Flange Center Lock, ZC/CL

$4.49

$

In Stock, Qty 19

0

0150

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0180

Snapper 704062

BOLT, Serrated Flanged Head, 5/16-18 X 2.0

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 704003

SCREW, 5/16-18 X .50, Hex Socket Head, Phosp/Oil

$4.49

$

Usually ships in 2-12 days

0

0200

Snapper GXV160-UH2A1AS

* ENGINE, 5.5 GTP Honda Comm Tier III, Model GXV160UH2-A1AS Code 649061

Note: (Model GXV160UH2-A1AS Code 649061)

$

$

Currently unavailable

0210

Snapper 7300969AYP

RING, Engine Spacer

$146.99

$

Usually ships in 2-12 days

0

0220

Snapper 7500549DYP

WELDMENT, Deck, 21", Self-Propell, HV (Red w/Decals)

$

$

Not available

0250

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0260

Snapper 704015

WASHER, Flat, 5/16

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0
