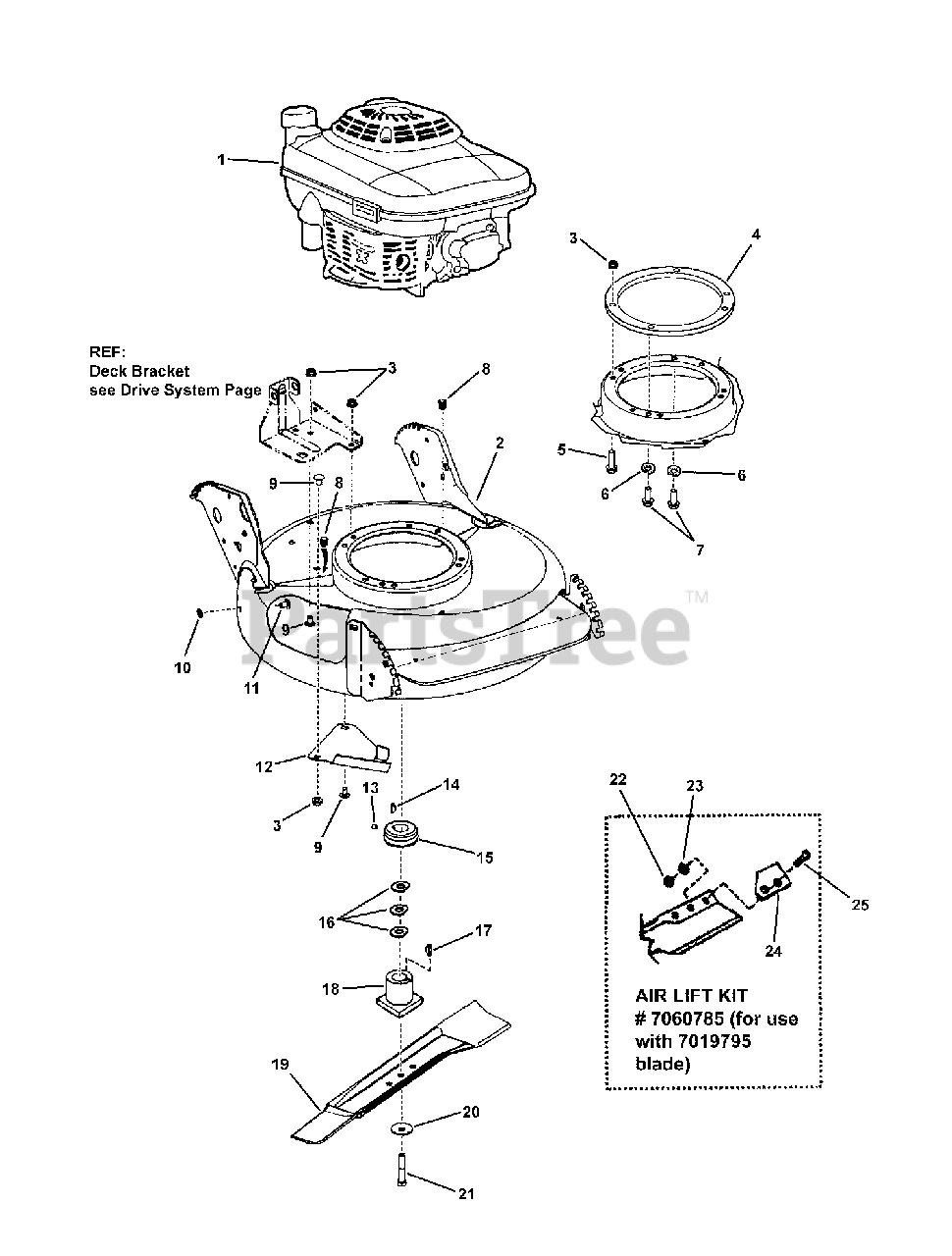

CP 215520HVFC (7800289) - Snapper 21" Walk-Behind Mower, 5.5hp Engine, Cutting Deck, Blade Parts Diagram

21" Walk-Behind Mower, 5.5hp

Engine, Cutting Deck, Blade Parts Diagram

  • Title

1

Snapper FJ180V-BS23-R

* ENGINE, 6 TP Kawasaki w/side recoil

Note: (used on CP216019KWVFC)

$

$

Currently unavailable

1

Snapper GXV160-UH2A1AS

* ENGINE, 5.5 TP Honda (not shown)

Note: (used on CP215520HVFC)

$

$

Currently unavailable

2

Snapper 7500549

WELDMENT, Deck, 21", Self-Propelled, Hi-Vac
(Superseded to 7500549DYP)

Note: was 7400027

$

$

Not available

3

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: (used on Honda only)(or 7091601 or 7090585)

$5.49

$

In Stock, Qty 20+

0

4

Snapper 7300969A

RING, Engine Spacer
(Superseded to 7300969AYP)

Note: (used on CP215520HVFC)

$146.99

$

Usually ships in 2-12 days

0

5

Snapper 7091602

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR5
(Superseded to 7091602SM)

Note: (engine mount bolt, Honda)

$3.99

$

In Stock, Qty 5

0

5

Snapper 7090324

SCREW, 3/8-16 X1, Hex Washer Self-Tap, BZ
(Superseded to 704000)

Note: (engine mount bolt, Kawasaki)

$4.99

$

In Stock, only 4 left!

0

6

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

Note: (on engine mount bolts, Honda)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 1921982

SCREW, 5/16-24 x 1-1/4" Hex Head Cap GR 5
(Superseded to 703299)

Note: (engine mount bolts, Honda)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7046780

PLUG, Hole, Polyethylene
(Superseded to 7046780SM)

$4.99

$

In Stock, only 1 left!

0

9

Snapper 7090731

BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
(Superseded to 703798)

Note: (or 7092061)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR 5
(Superseded to 703185)

Note: (or 7090001)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7074568

COVER, Belt
(Superseded to 7074568YP)

$12.99

$

Usually ships in 2-12 days

0

13

Snapper 7092086

SET SCREW, 5/16-18 x 1/2" Hex Socket Head
(Superseded to 7092086YP)

Note: (used with 7021822)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7091214

KEY, Woodruff #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 2 left!

0

15

Snapper 7015780

PULLEY- Engine (25mm I.D. x 2-1/8" O.D.)
(Superseded to 7015780YP)

Note: (used on Kawasaki engines)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 7021822

PULLEY- Engine (1.085 I.D. x 2-1/8" O.D.)
(Superseded to 7021822YP)

Note: (used on Honda engines)

$34.99

$

Usually ships in 2-12 days

0

16

Snapper 7044770

SPACER, .06 Blade Hub
(Superseded to 7044770YP)

Note: (used on CP215520HVFC)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7010783

KEY, #505 Hi-Pro
(Superseded to 7010783YP)

$3.99

$

In Stock, only 2 left!

0

18

Snapper 7015626

** HUB, Blade Drive, 25mm I.D.
(Superseded to 7015626YP)

Note: (used on CP216019KWVFC)

$15.99

$

Usually ships in 2-12 days

0

18

Snapper 7012927

** HUB, Blade Drive, 7/8" I.D.
(Superseded to 7012927YP)

Note: (used on CP215520HVFC)

$13.99

$

In Stock, only 1 left!

0

19

Snapper 7026691

BLADE, Cutter (Standard Lift)
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

20

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

21

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7090223

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7032558

AIR LIFT
(Superseded to 7032558YP)

$9.99

$

Usually ships in 2-12 days

0

25

Snapper 7090228

SCREW, 5/16-24 x 21/32" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0
