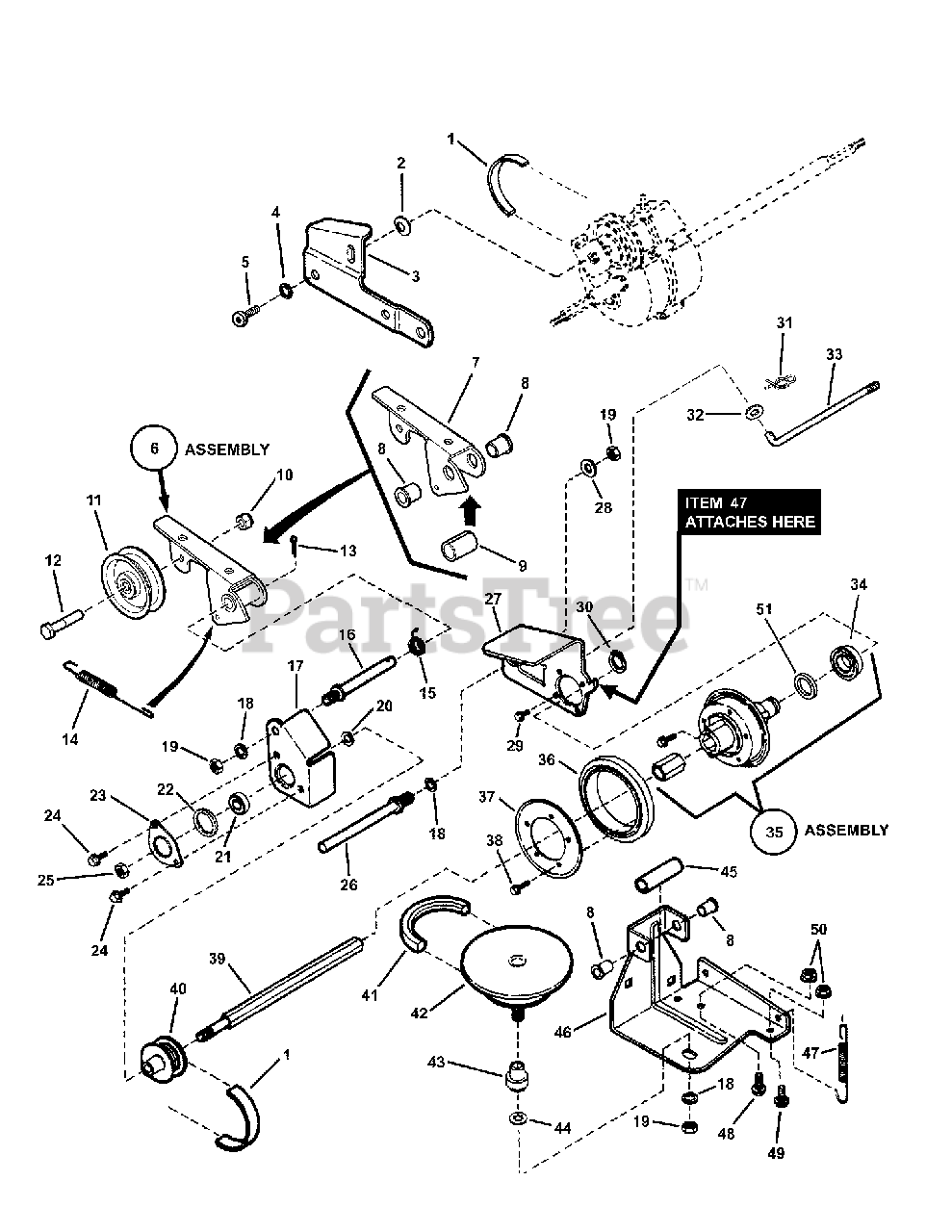

CP 216019KWVFC (7800288) - Snapper 21" Walk-Behind Mower, 6hp Drive System, Self-Propelled Parts Diagram

21" Walk-Behind Mower, 6hp

Drive System, Self-Propelled Parts Diagram

  • Title

1

Snapper 7012354

BELT, Poly-V
(Superseded to 7012354YP)

$13.99

$

In Stock, Qty 20+

0

2

Snapper 7011724

WASHER, 44 x .78 x .025 Curved
(Superseded to 703940)

$4.49

$

In Stock, Qty 5

0

Snapper 7051913

ASSEMBLY, Clutch Idler (incl. items 3 thru 6)
(Superseded to 7051921YP)

$108.99

$

Usually ships in 2-12 days

0

3

Snapper 7034179

LINK, Differential
(Superseded to 7034179BMYP)

$21.99

$

In Stock, only 2 left!

0

4

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head Self-Tap (Torx)
(Superseded to 703932)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7500154

ASSEMBLY, Idler Arm, Bushing & Spacer
(Superseded to 7600173YP)

$34.99

$

In Stock, only 1 left!

0

7

Snapper 7032832

ARM, Clutch Idler
(Superseded to 7032832AYP)

$22.99

$

In Stock, only 3 left!

0

8

Snapper 7012306

BUSHING, Flange (Powdered Metal)
(Superseded to 703973)

$6.49

$

In Stock, Qty 8

0

9

Snapper 7100447

SPACER, Idler Arm
(Superseded to 703974)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 5

0

11

Snapper 7012124

PULLEY, Idler
(Superseded to 7012124YP)

$18.99

$

In Stock, Qty 10

0

12

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, GR 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7090555

COTTER PIN, 3/32 x 1/2"
(Superseded to 703312)

Note: (or 7091597)

$4.49

$

In Stock, Qty 8

0

14

Snapper 7012122

SPRING, Clutch- 21S
(Superseded to 7012122YP)

$9.99

$

In Stock, Qty 19

0

15

Snapper 7012126

SPRING, Idler- Torsion
(Superseded to 7012126YP)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7012111

STUD, Idler (3/8-24 thread)
(Superseded to 703836)

$8.49

$

In Stock, only 3 left!

0

17

Snapper 7031873

HOLDER, Bearing (Inner Half)
(Superseded to 7031873YP)

$

$

Not available

18

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7012316

WASHER, 3/8" Flat
(Superseded to 703946)

$3.99

$

In Stock, Qty 17

0

21

Snapper 7028014

BALL BEARING, Spherical O.D., .38 I.D.
(Superseded to 7028014YP)

$17.99

$

In Stock, Qty 20+

0

22

Snapper 7011025

O-RING
(Superseded to 704008)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7031809

HOLDER, Bearing (Outer Half)
(Superseded to 7031809YP)

$4.49

$

In Stock, only 4 left!

0

24

Snapper 7090539

SCREW, 1/4-20 x 1/2" Hex Flange Self-Tap
(Superseded to 704130)

Note: (or 7091122)

$3.99

$

In Stock, Qty 17

0

25

Snapper 7090289

NUT, 3/8-24 Hex Center Lock, GR 5
(Superseded to 703458)

$4.99

$

In Stock, Qty 10

0

26

Snapper 7012125

GUIDE, Thrust Plate (3/8-24 thread)
(Superseded to 703837)

$8.49

$

In Stock, Qty 9

0

27

Snapper 7300977A

THRUST PLATE, Short
(Superseded to 7300977AYP)

$

$

Not available

28

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7090981

SCREW, #10-32 x 1/4" Self-Tap Machine
(Superseded to 704061)

$3.99

$

In Stock, Qty 8

0

30

Snapper 7010746

RETAINING RING, .625 External
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7090673

COTTER PIN, .06 x .50
(Superseded to 703464)

Note: (or 7091629)

$4.49

$

In Stock, only 1 left!

0

32

Snapper 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7074145

LINK, Transfer (1/4-28 thread)
(Superseded to 7074145YP)

$9.99

$

In Stock, Qty 8

0

34

Snapper 7029027

BALL BEARING, 3/4" Bore- Commercial
(Superseded to 707608)

$8.99

$

In Stock, Qty 16

0

Snapper 7501000

ASS'Y, DRIVEN DISC (incl. items 18, 19, 26-29, 30, 32, & 34-38)
(Superseded to 7600109YP)

$143.99

$

Usually ships in 2-12 days

0

35

Snapper 7061276

* KIT, Bushing & Hub Assembly
(Superseded to 7061276YP)

$79.99

$

Usually ships in 2-12 days

0

36

Snapper 7023364

DRIVEN RING, 21P
(Superseded to 704059)

$14.99

$

In Stock, Qty 20+

0

37

Snapper 7031013

PLATE, Ring Retaining
(Superseded to 7031013YP)

$5.99

$

In Stock, Qty 7

0

38

Snapper 7090913

SCREW, #10-24 x 1/2" Self-Tap Machine
(Superseded to 704060)

$3.99

$

In Stock, only 2 left!

0

39

Snapper 7072284

SHAFT, Hex (3/8-24 thread, one end)
(Superseded to 7072284YP)

$

$

Not available

40

Snapper 7019383

PULLEY, Poly-V (2.00" O. D.)
(Superseded to 7019383YP)

$58.99

$

In Stock, Qty 5

0

41

Snapper 7046784

BELT, Engine Drive (Stretch)
(Superseded to 7046784YP)

$19.99

$

In Stock, Qty 18

0

42

Snapper 7073528

ASSEMBLY, Steel Drive Disc
(Superseded to 7073528YP)

$39.99

$

In Stock, Qty 8

0

43

Snapper 7017696

BUSHING, Powdered Metal
(Superseded to 703971)

$5.99

$

In Stock, Qty 8

0

44

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 9

0

Snapper 7052987

ASSEMBLY, Deck Bracket (Incl. items 8, 45 & 46)
(Superseded to 7052987YP)

$

$

Not available

45

Snapper 7021758

SPACER, .500 x .65 x 1.75
(Superseded to 703941)

$29.99

$

In Stock, only 3 left!

0

46

Snapper 7033774

BRACKET, Deck, P21S
(Superseded to 7033774YP)

$

$

Not available

47

Snapper 7029025

SPRING, Wheel Drive
(Superseded to 7029025YP)

$6.49

$

Usually ships in 2-12 days

0

48

Snapper 7090731

BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
(Superseded to 703798)

Note: (or 7090261)

$4.49

$

In Stock, only 4 left!

0

49

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR 5
(Superseded to 703447)

Note: (or 7091026)

$4.49

$

In Stock, Qty 18

0

50

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock GR 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

51

Snapper 7010121

WASHER, 3/4" Shim
(Superseded to 7010121YP)

$4.49

$

In Stock, Qty 5

0
