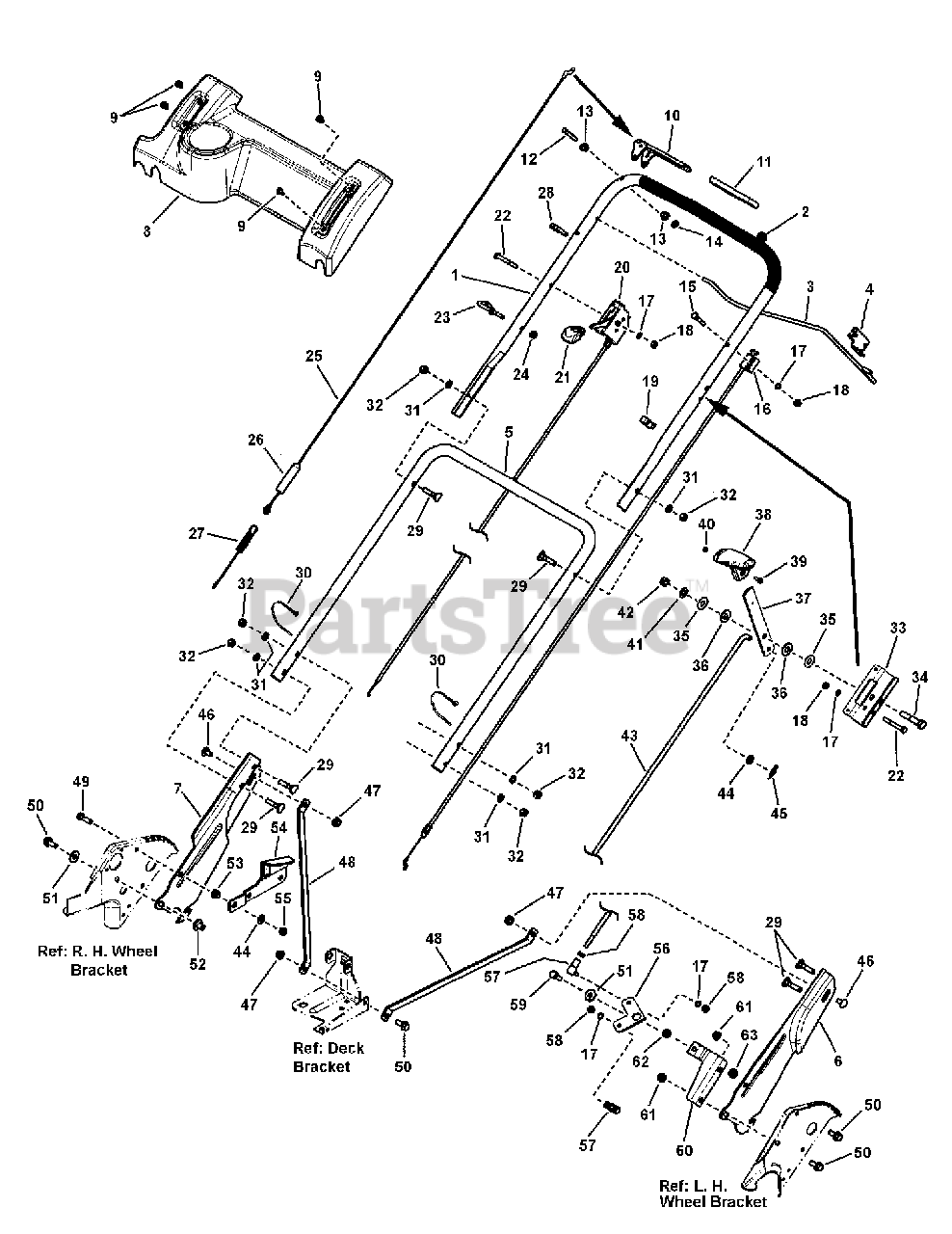

CP 218520 (7800848) - Snapper 21" Walk-Behind Mower, 8.75hp Handles & Controls Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

Handles & Controls Group Parts Diagram

  • Title

1

Snapper 7074411A

HANDLE, Upper
(Superseded to 7106258AYP)

$

$

Not available

2

Snapper 7023810

FOAM GRIP, 18.75" long
(Superseded to 7023810YP)

$8.49

$

Usually ships in 2-12 days

0

3

Snapper 7074418A

BAIL, OPC Control
(Superseded to 7074418AYP)

$34.99

$

In Stock, only 1 left!

0

4

Snapper 7034872

CLIP, Zone Control
(Superseded to 7034872YP)

$5.99

$

In Stock, only 1 left!

0

5

Snapper 7074156A

HANDLE, Middle
(Superseded to 7106232AYP)

$

$

Not available

6

Snapper 7033985A

HANDLE, Lower, Adjustable, LH
(Superseded to 7033985AYP)

$43.99

$

Usually ships in 2-12 days

0

7

Snapper 7033986A

HANDLE, Lower, Adjustable, RH
(Superseded to 7033986AYP)

$36.99

$

In Stock, only 4 left!

0

8

Snapper 7074140

CONTROL PANEL, No Electric Switch
(Superseded to 7074140YP)

$70.99

$

Usually ships in 2-12 days

0

9

Snapper 7900067

SCREW, 1/4-20 x .550" Pan Head Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7074473A

HANDLE, Clutch
(Superseded to 7074473BMYP)

$16.99

$

In Stock, Qty 14

0

11

Snapper 7028407

GRIP, International Symbol
(Superseded to 7028407YP)

$5.49

$

In Stock, Qty 6

0

12

Snapper 7023792

PIN, 1/4 x 1-1/2"
(Superseded to 704031)

$3.99

$

In Stock, Qty 9

0

13

Snapper 7014343

BUSHING, .27 x .35 x .4 Flange
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091020

PUSH-NUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

16

Snapper 7102593

CABLE, Zone Control, W14
(Superseded to 7102593YP)

$21.99

$

Usually ships in 2-12 days

0

17

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock, YZ
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

18

Snapper 7091576

NUT, 1/4-20 Hex, GR 5
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

19

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 10

0

20

Snapper 7102594

THROTTLE CONTROL, (63.12" Long)
(Superseded to 7102594YP)

Note: (B&S Clamp #213146 not shown)

$41.99

$

Usually ships in 2-12 days

0

21

Snapper 7075308

KNOB, Throttle
(Superseded to 7075308YP)

$11.99

$

Usually ships in 2-12 days

0

22

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7028488

GUIDE, Rope (1/4-20 thread)
(Superseded to 7028488MA)

$6.49

$

In Stock, only 1 left!

0

24

Snapper 7076978

NUT, 1/4-28 Hex GR 5 or B
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7034604

CONTROL, Clutch, 21"
(Superseded to 7034604YP)

$21.99

$

In Stock, Qty 20+

0

26

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$1.99

$

Usually ships in 2-12 days

0

27

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

28

Snapper 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, only 1 left!

0

29

Snapper 7091190

BOLT, 5/16-18 X1-1/2" Curved Head Square Neck, GR 2 BZ
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

30

Snapper 7012080

CABLE-TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B, BZ
(Superseded to 7091511SM)

Note: (Was 7091069)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7074003

BRACKET, Shift
(Superseded to 7074003YP)

$6.99

$

Usually ships in 2-12 days

0

34

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 7091305SM)

$4.49

$

In Stock, Qty 9

0

35

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 7028465

WASHER, Nylon
(Superseded to 704004)

$3.99

$

In Stock, only 1 left!

0

37

Snapper 7074113

LEVER, Shift
(Superseded to 7074113YP)

$9.49

$

Usually ships in 2-12 days

0

38

Snapper 7075182

KNOB, Shift
(Superseded to 7075182YP)

$9.99

$

In Stock, only 1 left!

0

39

Snapper 7091167

SCREW, #8-32 x 1/2" Cross Recess Filister Head Machine
(Superseded to 7091167YP)

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 11

0

41

Snapper 7028568

WASHER, Belleville
(Superseded to 704006)

$3.99

$

In Stock, only 1 left!

0

42

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

43

Snapper 7074133

ROD, Speed Control
(Superseded to 7074133YP)

$27.99

$

In Stock, only 4 left!

0

44

Snapper 7090188

WASHER, .34 x .69 x .08 Flat, YZ
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7034162

COTTER PIN, 5/16" Self Lock
(Superseded to 704030)

$4.49

$

In Stock, only 2 left!

0

46

Snapper 7090799

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck, GR 5 BZ
(Superseded to 703447)

Note: (Was7091026)

$4.49

$

In Stock, Qty 20+

0

47

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

48

Snapper 7046707A

BRACE, Handle
(Superseded to 7046707YP)

$34.99

$

In Stock, only 2 left!

0

49

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, GR 5, BZ
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

50

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 18

0

51

Snapper 7091130

WASHER, .327 x .875 x .09 Flat, BZ
(Superseded to 7091130SM)

$3.99

$

In Stock, Qty 5

0

52

Snapper 7090895

T-NUT, 5/16-18
(Superseded to 7090895YP)

$3.49

$

Usually ships in 2-12 days

0

53

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 12

0

54

Snapper 7034179A

LINK, Differential, Commercial
(Superseded to 7034179BMYP)

Note: (also part of Drive System Group)

$20.99

$

In Stock, only 1 left!

0

55

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, GR B, BZ
(Superseded to 703896)

Note: (Was 7091074)

$3.49

$

In Stock, Qty 8

0

56

Snapper 7073913

BELL CRANK, Black Zinc
(Superseded to 7073913YP)

$24.99

$

Usually ships in 2-12 days

0

57

Snapper 7015753

BALL JOINT
(Superseded to 7015753YP)

$10.99

$

In Stock, Qty 6

0

58

Snapper 7090095

NUT, 1/4-28 Hex GR 5 or B, YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

59

Snapper 7091904

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5 YZ
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

60

Snapper 7073822A

BRACKET, Bell Crank
(Superseded to 7073822YP)

$14.99

$

Usually ships in 2-12 days

0

61

Snapper 7090585

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

62

Snapper 7013849

SPACER, .623 OD x .328 ID x .151 L
(Superseded to 703970)

$4.49

$

In Stock, Qty 10

0

63

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 10
