CPLB-58V VN (107188034) - Echo Handheld Blower, 58V Battery, Revision 11 (2019-09) General Assembly Parts Diagram

Blower Parts, 58 V DC electric blower, motor voltage 58 V, variable-speed & turbo-boost switches, 550 CFM (turbo) / 430 CFM (non-turbo) airflow, 145 mph / 115 mph air velocity, includes blower tube, debris scraper, cruise control. Revision 11 (2019-09).

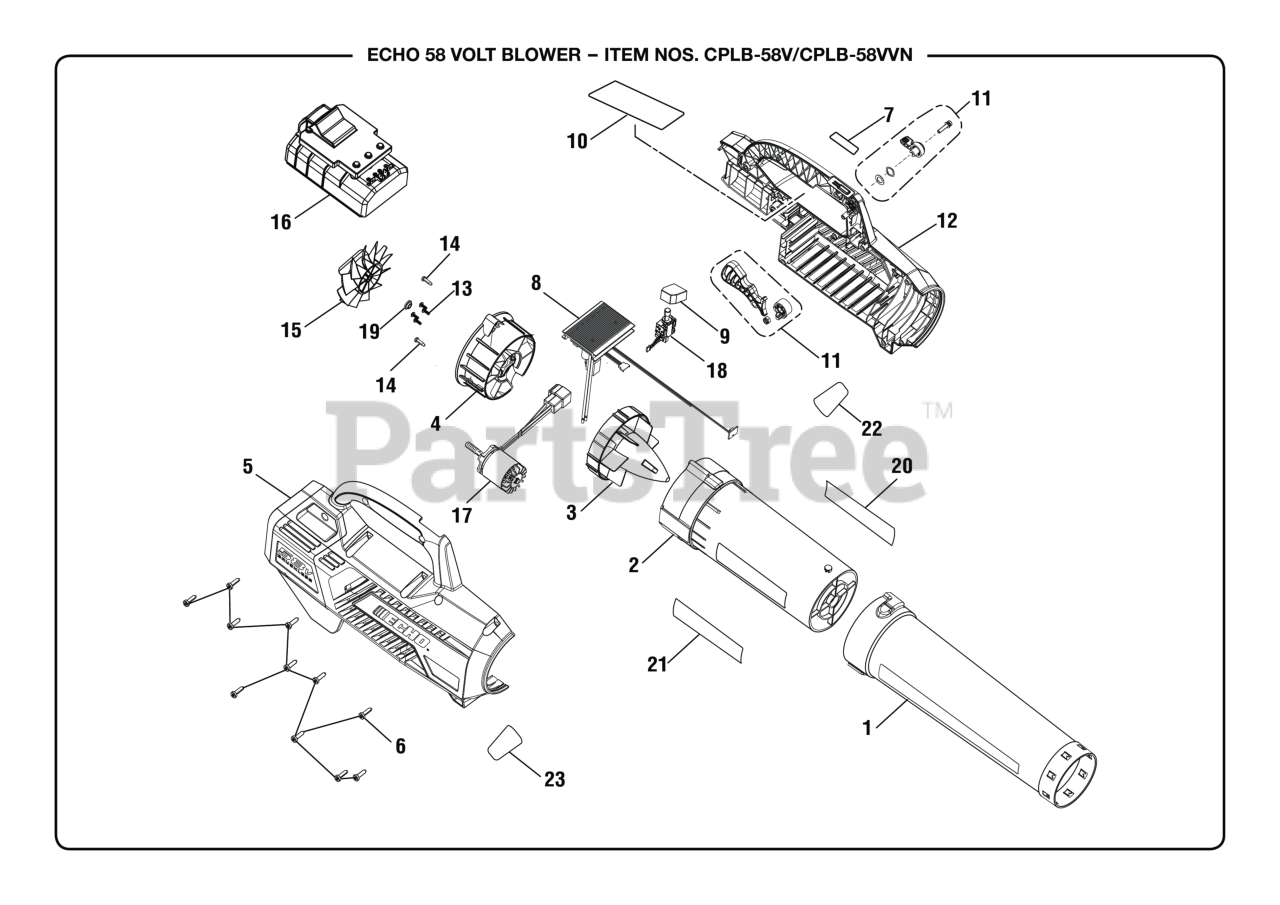

General Assembly Parts Diagram

  • Title

1

Echo 312506001

Nozzle & Scraper Assembly

$15.99

$

Usually ships in 2-4 days

0

2

Echo 312507001

Outlet Housing

$6.49

$

Usually ships in 2-4 days

0

3

Echo 531150001

Tailcone

$2.99

$

Usually ships in 2-4 days

0

4

Echo 312505001

Guide Vane Assembly

$4.99

$

Usually ships in 2-4 days

0

5

Echo 205151002

Right Housing Assembly

Note: (Inc. Key No. 23)

$

$

Currently unavailable

6

Echo 662051002

Screw (M5 x 17.5 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

7

Echo 940851174

Turbo Boost Label

$1.49

$

Usually ships in 2-4 days

0

8

Echo 280457001

Circuit Board

$92.99

$

Usually ships in 2-4 days

0

9

Echo 531189001

SWITCH PLATE

$1.49

$

Usually ships in 2-4 days

0

10

Echo 940657220

Warning Label

$1.49

$

Usually ships in 2-4 days

0

11

Echo 312503001

Cruise Control Lever Assembly

$1.49

$

In Stock, Qty 5

0

12

Echo 205151001

Left Housing Assembly

Note: (Inc. Key Nos. 7, 10 & 22)

$

$

Currently unavailable

13

Echo T662472001

Screw (M3 x 8 mm, Pan Hd.)

$1.49

$

In Stock, Qty 15

0

14

Echo 661817001

Screw (M4 x 13.5 mm, T15 Torx Pan Hd.)

$1.49

$

In Stock, Qty 19

0

15

Echo 531185001

FAN

$6.99

$

In Stock, Qty 8

0

16

Echo 380020001

Battery Carriage

$13.99

$

Usually ships in 2-4 days

0

17

Echo 742232001

Motor Assembly

$115.99

$

Usually ships in 2-4 days

0

18

Echo 760952002

Variable Signal Switch

$9.49

$

Usually ships in 2-4 days

0

19

Echo 612854002

BUSHING

$1.49

$

In Stock, Qty 5

0

20

Echo 940851170

Fan Label (Left)

$1.49

$

Usually ships in 2-4 days

0

21

Echo 940851169

Fan Label (Right)

$1.49

$

Usually ships in 2-4 days

0

22

Echo 941588332

Data Label

$

$

Currently unavailable

23

Echo 941588329

Data Label

$

$

Currently unavailable

Echo 000998945DG9

58V Battery Pack (CBP-58V20, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 000998946DG9

58V Battery Pack (CBP-58V40, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 140330001

58V Charger (CBC-58V, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 991000893

Operator's Manual (ECHO #99922205193)
(Superseded to Discontinued)

Note: Not Shown

$

$

Not available
