CPW 2000 (UT-01818) - Homelite Pressure Washer Pump Assembly (P/N 07837-01) Parts Diagram

Pressure Washer

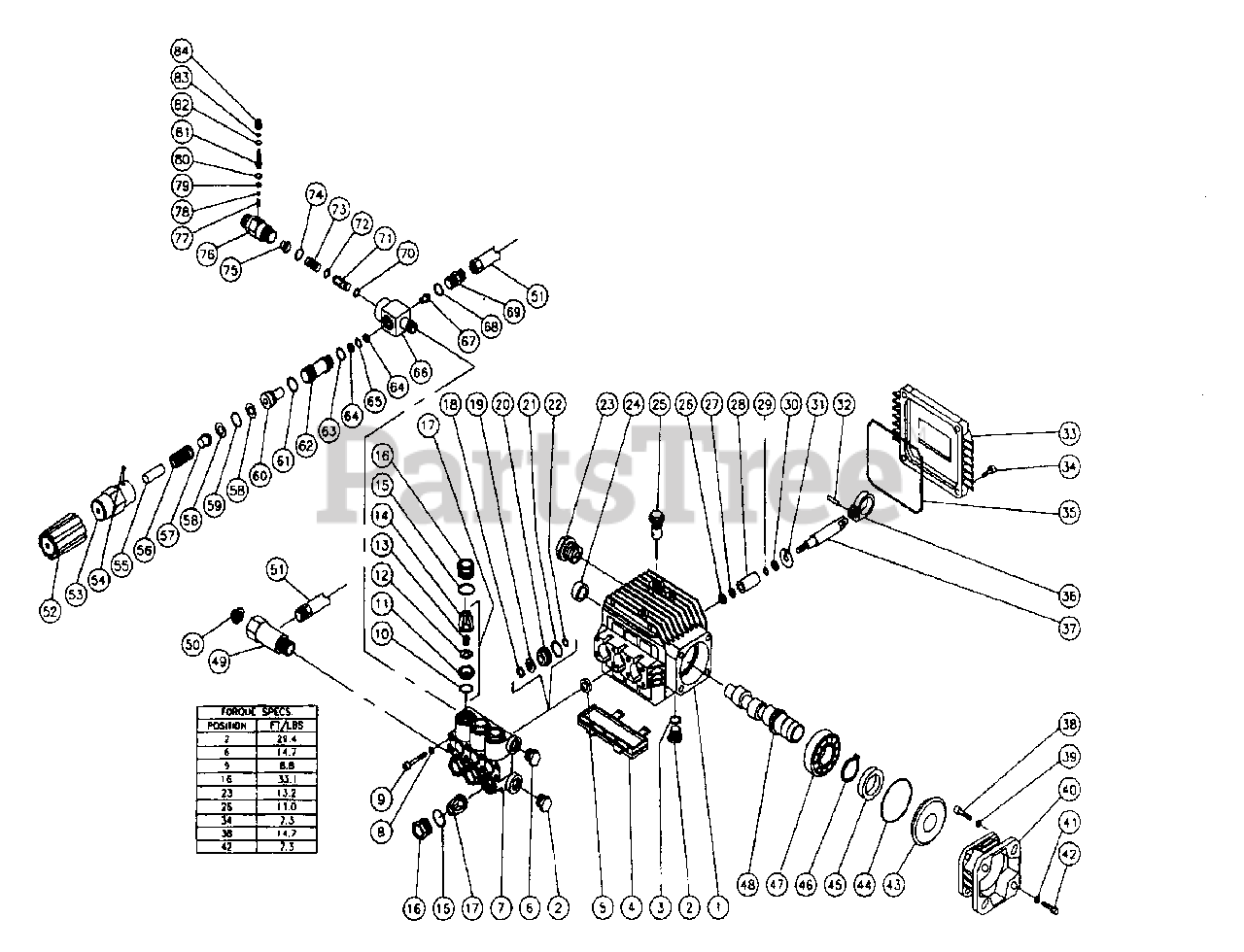

Pump Assembly (P/N 07837-01) Parts Diagram

  • Title

Homelite 0783701

Pump Assembly

Note: For CPW2000

$

$

Currently unavailable

1

Homelite 0812301

Crankcase

$

$

Currently unavailable

2

Homelite 0812302

Hex Plug

Note: Torque Specs, Ft/Lbs 29.4

$

$

Not available

3

Homelite 0812303

O-ring

$

$

Currently unavailable

4

Homelite 0812304

Drip Pan

$

$

Currently unavailable

5

Homelite 0783705

Oil Seal

$

$

Currently unavailable

6

Homelite 0812306

Hex Plug

Note: Torque Specs, Ft/Lbs 14.7

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 0812307

Manifold-Brass

$

$

Currently unavailable

8

Homelite 0812308

Lockwasher

$

$

Currently unavailable

9

Homelite 0812309

Bolt

Note: Torque Specs, Ft/Lbs 8.8

$8.99

$

Usually ships in 3-7 days

0

10

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 07837-02

$

$

Not available

11

N/A Sep.

Valve Seat

Note: Not Available Separately; See Kit P/N 07837-02

$

$

Not available

12

N/A Sep.

Valve Plate

Note: Not Available Separately; See Kit P/N 07837-02

$

$

Not available

13

N/A Sep.

Valve Spring

Note: Not Available Separately; See Kit P/N 07837-02

$

$

Not available

14

N/A Sep.

Valve Cage

Note: Not Available Separately; See Kit P/N 07837-02

$

$

Not available

15

Homelite 0812310

O-ring

$

$

Not available

16

Homelite 0812311

Valve Plug

Note: Torque Specs, Ft/Lbs 33.1

$

$

Currently unavailable

17

N/A Sep.

Valve Assembly

Note: Not Available Separately; See Kit P/N 07837-02

$

$

Not available

18

N/A Sep.

Head Ring

Note: Not Available Separately; See Kit P/N 07837-03

$

$

Not available

19

N/A Sep.

V-Packing

Note: Not Available Separately; See Kit P/N 07837-03

$

$

Not available

20

Homelite 0812312

V-Packing Retainer

$

$

Currently unavailable

21

Homelite 0812313

O-ring

$

$

Currently unavailable

22

Homelite 0812314

O-ring

$

$

Not available

23

Homelite 0812315

Oil Level Indicator

Note: Torque Specs, Ft/Lbs 13.2

$

$

Currently unavailable

24

Homelite 0812316

Needle Bearing

$

$

Currently unavailable

25

Homelite 0812317

Oil Dip Stick

$

$

Currently unavailable

26

Homelite 0812318

Nut

Note: Torque Specs, Ft/Lbs 11.0

$

$

Currently unavailable

27

Homelite 0812319

Washer

$

$

Not available

28

Homelite 0783704

Plunger

$

$

Not available

29

Homelite 0812321

O-ring

$

$

Currently unavailable

30

Homelite 0812322

Back-up Ring

$

$

Not available

31

Homelite 0812323

Washer

$13.99

$

Usually ships in 3-7 days

0

32

Homelite 0812324

Connecting Rod Pin

$

$

Currently unavailable

33

Homelite 0812325

Crankcase Cover

$

$

Currently unavailable

34

Homelite 0812326

Bolt

Note: Torque Specs, Ft/Lbs 7.3

$

$

Currently unavailable

35

Homelite 0812327

O-ring

$15.99

$

Usually ships in 3-7 days

0

36

Homelite 0812328

Connecting Rod

$

$

Currently unavailable

37

Homelite 0812329

Piston Guide

$

$

Currently unavailable

38

Homelite 0812330

Bolt

Note: Torque Specs, Ft/Lbs 14.7

$175.99

$

Usually ships in 3-7 days

0

39

Homelite 0762819

Lockwasher

$

$

Currently unavailable

40

Homelite 0812332

Flange

$

$

Currently unavailable

41

Homelite 0812308

Lockwasher

$

$

Currently unavailable

42

Homelite 0812326

Bolt

Note: Torque Specs, Ft/Lbs 7.3

$

$

Currently unavailable

43

Homelite 0812335

Spacer

$

$

Currently unavailable

44

Homelite 0812336

O-ring

$

$

Not available

45

Homelite 0812337

Oil Seal

$

$

Currently unavailable

46

Homelite 0812338

Snap Ring

$

$

Currently unavailable

47

Homelite 0812339

Ball Bearing

$

$

Currently unavailable

48

Homelite 0812340

Crankshaft

$

$

Currently unavailable

49

Homelite 0812341

Inlet Fitting

$

$

Not available

50

Homelite 0757507

Inlet Screen

$

$

Not available

51

Homelite 0783707

By-Pass Hole

$

$

Not available

52

Homelite 0812344

Plastic Adjustable Knob

$

$

Currently unavailable

53

Homelite 0812345

Adjusting Knob

$

$

Currently unavailable

54

Homelite 0812346

Stop Adjusting Knob

$

$

Currently unavailable

55

Homelite 0812347

Spring Guide

$

$

Currently unavailable

56

Homelite 0812348

Spring

$

$

Currently unavailable

57

Homelite 0812349

Spring Seat

$

$

Currently unavailable

58

N/A Sep.

Back-up Ring

Note: Not Available Separately; See Kit P/N 07837-08

$

$

Not available

59

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 07837-08

$

$

Not available

60

Homelite 0812350

Piston

$

$

Currently unavailable

61

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 07837-08

$

$

Not available

62

Homelite 0812351

Barrel Stem Retainer

$

$

Currently unavailable

63

Homelite 0812352

O-ring

$

$

Currently unavailable

64

N/A Sep.

Back-up Ring

Note: Not Available Separately; See Kit P/N 07837-08

$

$

Not available

65

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 07837-08

$

$

Not available

66

Homelite 0812353

Unloader Body

$

$

Currently unavailable

67

Homelite 0812354

Ball Piston

$

$

Currently unavailable

68

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 07837-08

$

$

Not available

69

Homelite 0812355

By-pass Seat

$

$

Currently unavailable

70

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 07837-09

$

$

Not available

71

Homelite 0812356

Backflow Check

$

$

Currently unavailable

72

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 07837-09

$

$

Not available

73

N/A Sep.

Check Spring

Note: Not Available Separately; See Kit P/N 07837-09

$

$

Not available

74

Homelite 0812357

O-ring

$8.99

$

Usually ships in 3-7 days

0

75

Homelite 0812358

Injector Orifice

$

$

Currently unavailable

76

Homelite 0812359

Injector

$

$

Not available

77

N/A Sep.

Ball

Note: Not Available Separately; See Kit P/N 08123-68

$

$

Not available

78

N/A Sep.

Spring

Note: Not Available Separately; See Kit P/N 08123-68

$

$

Not available

79

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 08123-68

$

$

Not available

80

N/A Sep.

O-ring

Note: Not Available Separately; See Kit P/N 08123-68

$

$

Not available

81

Homelite 0812360

Hose Barb

$

$

Currently unavailable

82

Homelite 0812361

O-ring

$

$

Not available

83

Homelite 0812362

O-ring

$8.99

$

Usually ships in 3-7 days

0

84

Homelite 0812363

Adjustment Knob

$

$

Currently unavailable

Homelite 0783702

Valve Kit

Note: Includes 6 each 10-14

$

$

Not available

Homelite 0783703

V-packing Kit

Note: Includes 3 each 18, 19, 21, 22

$

$

Currently unavailable

Homelite 0783709

Unloader Check Valve Kit

Note: Includes 70, 72, 73

$

$

Not available

Homelite 0783708

Unloader Repair Kit for 2000 PSI

Note: Inc. 54, 56, 58, 59, 61, 64, 65, 67-69

$

$

Currently unavailable

Homelite 0812368

Injector Repair Kit

$

$

Not available
