CPW 2800 (UT-01819) - Homelite Pressure Washer Unloader Assembly (07837-25) Parts Diagram

Pressure Washer

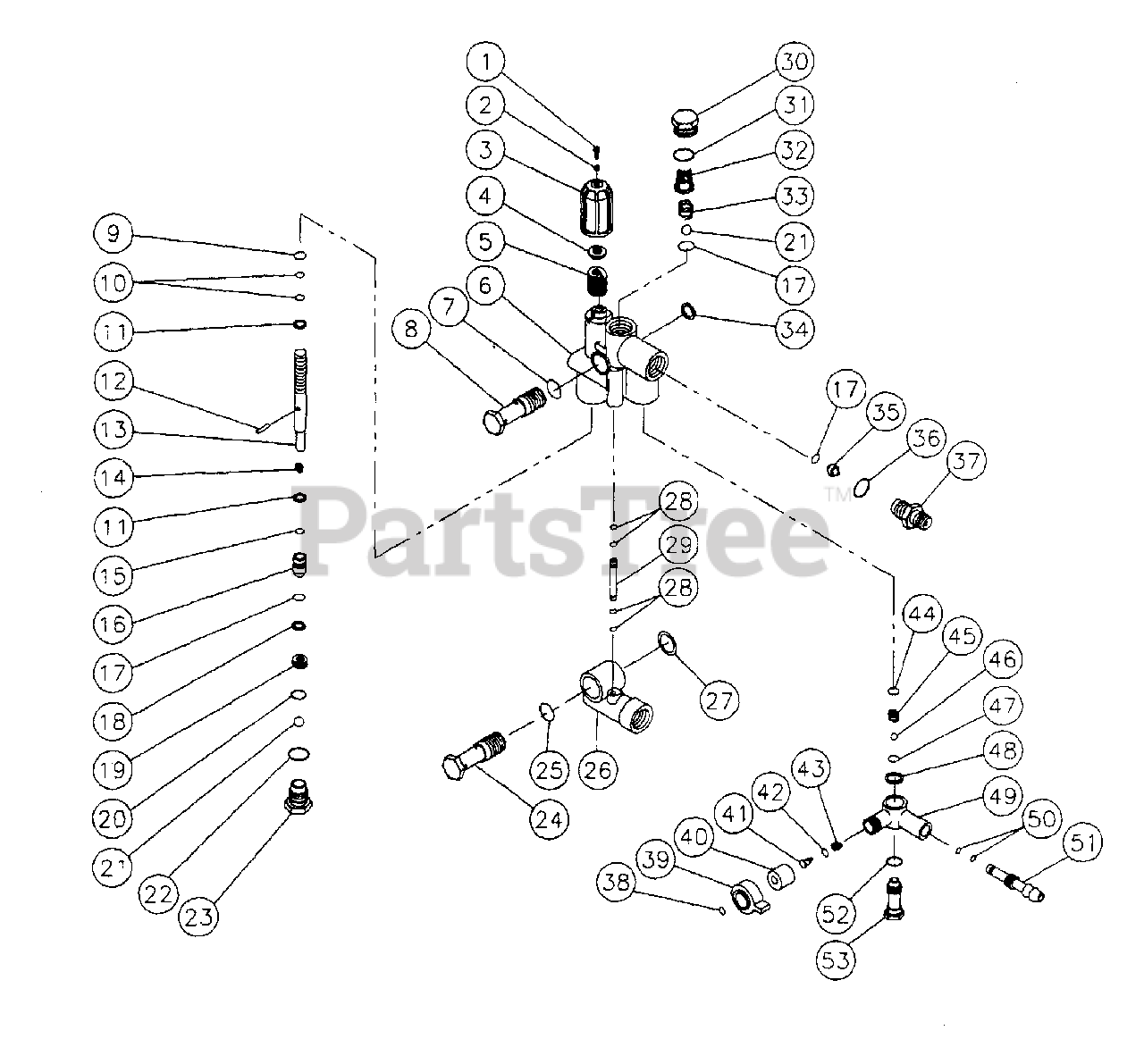

Unloader Assembly (07837-25) Parts Diagram

  • Title

Homelite 0783725

Unloader Assembly

Note: For CPW2800

$

$

Not available

1

Homelite 0812326

Screw

$

$

Currently unavailable

2

Homelite 0792550

Nut

$

$

Currently unavailable

3

Homelite 0792551

Pressure Regulating Knob

$

$

Currently unavailable

4

Homelite 0792552

Spring Guide

$

$

Currently unavailable

5

Homelite 0792553

Spring

$

$

Currently unavailable

6

Homelite 0792554

Valve Body-Brass

$

$

Currently unavailable

7

Homelite 0762854

O-ring

$3.99

$

Usually ships in 3-7 days

0

8

Homelite 0792555

Fixing Screw-Brass

$

$

Currently unavailable

9

Homelite 0792556

Anti-Extension Ring

$

$

Not available

10

Homelite 0792557

O-ring

$

$

Currently unavailable

11

Homelite 0792558

Washer

$

$

Currently unavailable

12

Homelite 0792559

Pin

$

$

Currently unavailable

13

Homelite 0792560

Piston Guide

$

$

Currently unavailable

14

Homelite 0792561

Spring

$

$

Currently unavailable

15

Homelite 0792562

O-ring

$

$

Currently unavailable

16

Homelite 0792563

Drive Piston

$

$

Currently unavailable

17

Homelite 0792564

O-ring

$

$

Currently unavailable

18

Homelite 0792565

Back-up Ring

$

$

Currently unavailable

19

Homelite 0792566

Valve Seat

$

$

Currently unavailable

20

Homelite 0792567

O-ring

$

$

Currently unavailable

21

Homelite 0792568

Ball

$

$

Currently unavailable

22

Homelite 0792569

O-ring

$

$

Not available

23

Homelite 0792570

Cap-Brass

$

$

Currently unavailable

24

Homelite 0792571

Fixing Screw

$

$

Currently unavailable

25

Homelite 0792572

O-ring

$

$

Currently unavailable

26

Homelite 0792573

Inlet Body

$

$

Currently unavailable

27

Homelite 0812371

Washer

$

$

Currently unavailable

28

Homelite 0792574

O-ring

$

$

Not available

29

Homelite 0792575

By-pass Tube

$

$

Currently unavailable

30

Homelite 0792576

Cap

$

$

Currently unavailable

31

Homelite 0792577

O-ring

$

$

Currently unavailable

32

Homelite 0792578

Valve Guide

$

$

Currently unavailable

33

Homelite 0792579

Spring

$

$

Currently unavailable

34

Homelite 0812369

Washer

$

$

Currently unavailable

35

Homelite 0783725

Orifice

$

$

Not available

36

Homelite 0792580

O-ring

$

$

Currently unavailable

37

Homelite 0792581

Nipple

$

$

Currently unavailable

38

Homelite 0792582

Snap Ring

$

$

Currently unavailable

39

Homelite 0792583

Injector Regulating Knob

$

$

Not available

40

Homelite 0792584

Knob Insert

$

$

Not available

41

Homelite 0792585

Shutter

$

$

Currently unavailable

42

Homelite 0792586

O-ring

$

$

Currently unavailable

43

Homelite 0792587

Spring

$

$

Currently unavailable

44

Homelite 0792588

O-ring

$

$

Currently unavailable

45

Homelite 0792589

Spring

$

$

Not available

46

Homelite 0792590

Ball

$

$

Currently unavailable

47

Homelite 0812321

O-ring

$

$

Currently unavailable

48

Homelite 0792591

Washer

$

$

Currently unavailable

49

Homelite 0792592

Injector Body

$

$

Currently unavailable

50

Homelite 0792593

O-ring

$

$

Currently unavailable

51

Homelite 0792594

Hose Barb

$

$

Not available

52

Homelite 0812393

O-ring

$

$

Not available

53

Homelite 0792595

Valve Seat

$

$

Currently unavailable

Homelite 0783729

Unloader Repair Kit

Note: Includes: 5, 7, 9, 10, 14, 15, 17-22, 25, 28, 31-33

$

$

Not available

Homelite 0783730

Detergent Repair Kit

Note: Includes: 17, 35, 42-47, 50, 52

$

$

Currently unavailable
