CR 30 (13A226JD897) - Columbia 30" Rear-Engine Riding Mower (2016) Fender Parts Diagram

30" Rear-Engine Riding Mower

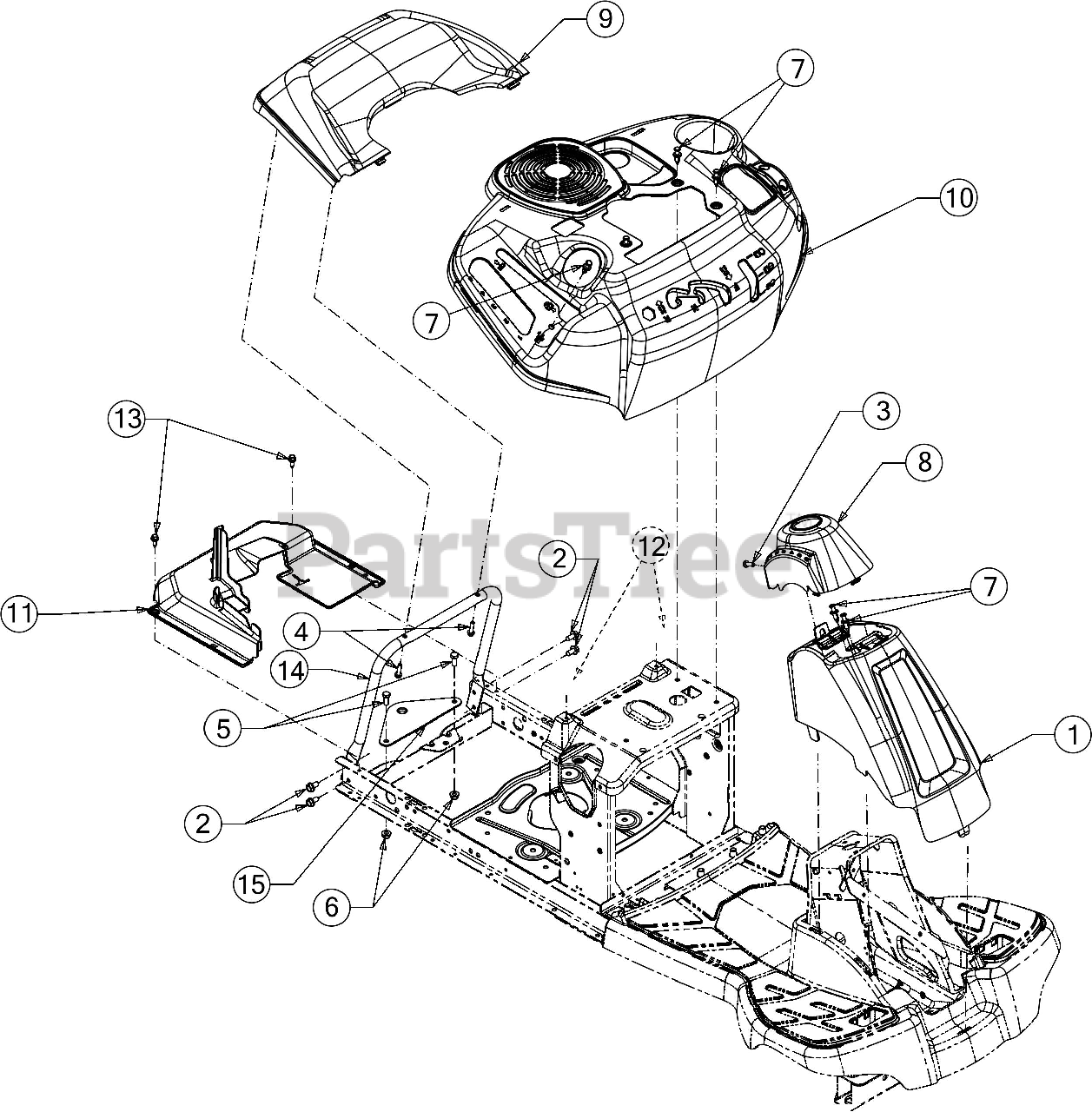

Fender Parts Diagram

  • Title

1

MTD 931-05067

COLUMN COVER ASSEMBLY (ORANGE)

$35.99

$

Usually ships in 3-6 days

0

1

MTD 712-04092

U NUT

Note: Not Shown

$5.99

$

Usually ships in 3-6 days

0

2

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, Qty 20+

0

5

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-09516

STEERING COLUMN CAP

$19.99

$

Usually ships in 3-6 days

0

9

MTD 731-09518

REAR COVER

$46.99

$

Usually ships in 3-6 days

0

10

MTD 931-10254

FENDER
(Superseded to 931-10254A)

$138.99

$

Usually ships in 3-6 days

0

11

MTD 731-10504

DRIVE OVER REAR

$50.99

$

In Stock, only 2 left!

0

12

MTD 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 15

0

13

MTD 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 20+

0

14

749-049320637

REAR SUPPORT TUBE

$

$

Not available

15

MTD 783-07208-0637

HITCH PLATE
(Superseded to 783-07208A-0637)

$8.49

$

In Stock, only 2 left!

0
