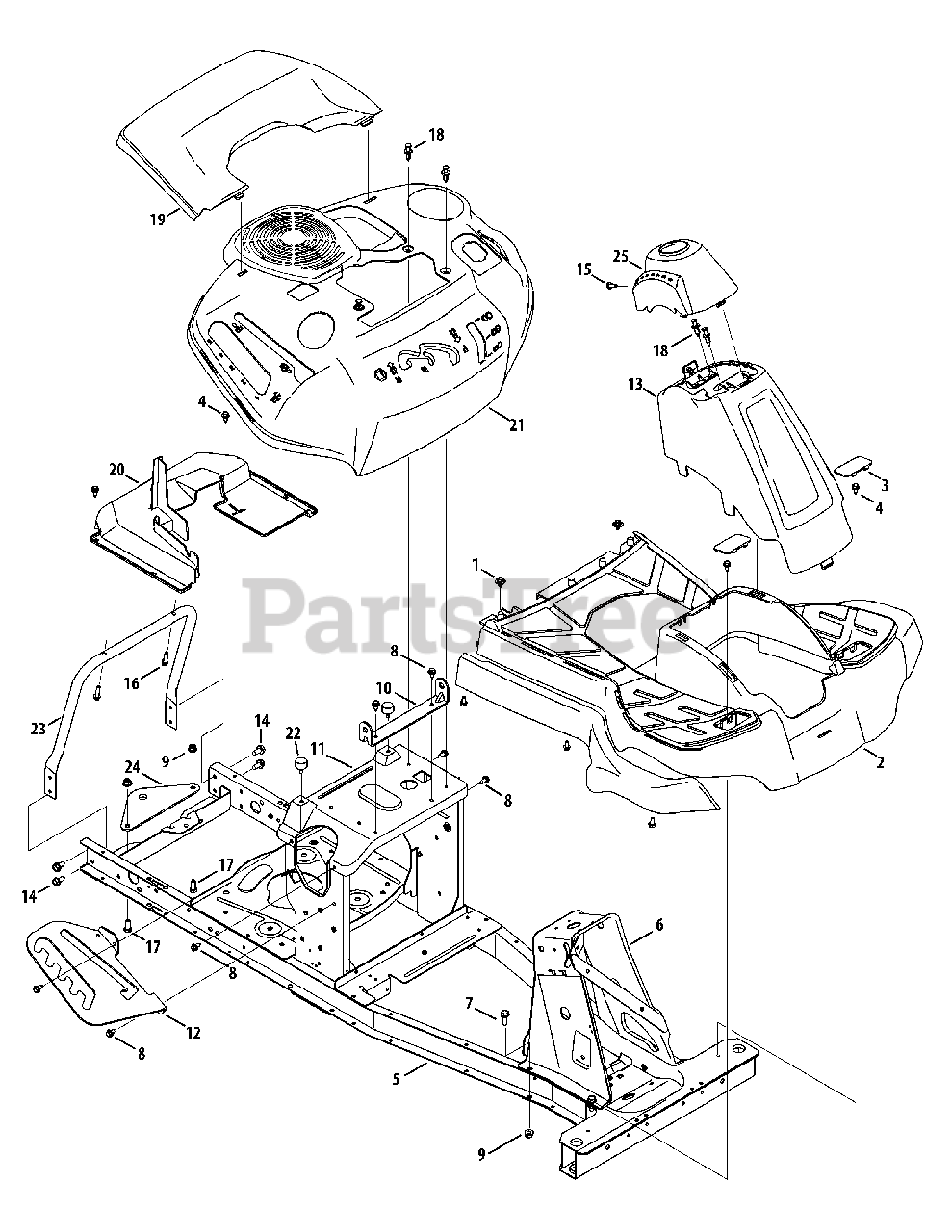

CR 30 (13AC26JD897) - Columbia 30" Rear-Engine Riding Mower (2013) Frame & Fender Parts Diagram

30" Rear-Engine Riding Mower

Frame & Fender Parts Diagram

  • Title

1

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-09588

Running Board, RMC
(Superseded to 931-09588)

$63.99

$

Usually ships in 3-6 days

0

3

MTD 731-08753A

Running Board Plug
(Superseded to 731-08753B)

$4.99

$

In Stock, Qty 20+

0

4

MTD 738-04184A

Shoulder Screw, .368 X.113: 1/4-20

$7.49

$

In Stock, Qty 20+

0

5

MTD 683-05015-0637

Frame Assembly

$271.99

$

Usually ships in 3-6 days

0

6

MTD 683-05019-0637

Column Assembly

$47.99

$

Usually ships in 3-6 days

0

7

MTD 710-1238

Hex Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

9

MTD 912-0429

Flange Locknut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

10

MTD 783-07168-0637

Seat Pivot Bracket
(Superseded to 783-13996-0637)

$6.99

$

Usually ships in 3-6 days

0

11

MTD 783-08197

Seat Pan
(Superseded to 783-13995-0637)

Variations

MTD 783-08197-0637

Seat Pan, Cr12 - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

12

MTD 783-08260-0637

Deck Lift Index Bracket

$31.99

$

In Stock, only 1 left!

0

13

MTD 631-05038

Column Cover

$36.99

$

Usually ships in 3-6 days

0

14

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0924

Machine Screw, 1/4-20, 0.750

$4.99

$

In Stock, Qty 20+

0

16

MTD 710-1241

Hex Screw, 1/4-15, 1.0

$6.99

$

In Stock, only 4 left!

0

17

MTD 710-3008

Hex Head Screw, 5/16-18, .75

$4.49

$

In Stock, Qty 20+

0

18

MTD 728-0199

Rivet, .3125

$4.99

$

In Stock, Qty 20+

0

19

MTD 731-08620A

Rear Cover

$35.99

$

In Stock, Qty 6

0

20

MTD 731-09185

Top Rear Drive Cover
(Superseded to 753-08259)

$76.99

$

Usually ships in 3-6 days

0

21

MTD 931-08708A

Fender, (B&S Eng.)
(Superseded to 931-08708B)

$91.99

$

Usually ships in 3-6 days

0

22

MTD 735-05006

Bumper, .62 Dia. x .50

$4.49

$

In Stock, Qty 20+

0

23

MTD 749-04932-0637

Rear Cover Support Tube

$36.99

$

In Stock, Qty 6

0

24

MTD 783-07208-0637

Hitch Plate
(Superseded to 783-07208A-0637)

$8.99

$

Usually ships in 3-6 days

0

25

MTD 731-09516

Steering Column Cap (Orange)

$20.99

$

Usually ships in 3-6 days

0
