CR 30 (13AC26JD897) - Columbia 30" Rear-Engine Riding Mower (2013) Pedal Controls Parts Diagram

30" Rear-Engine Riding Mower

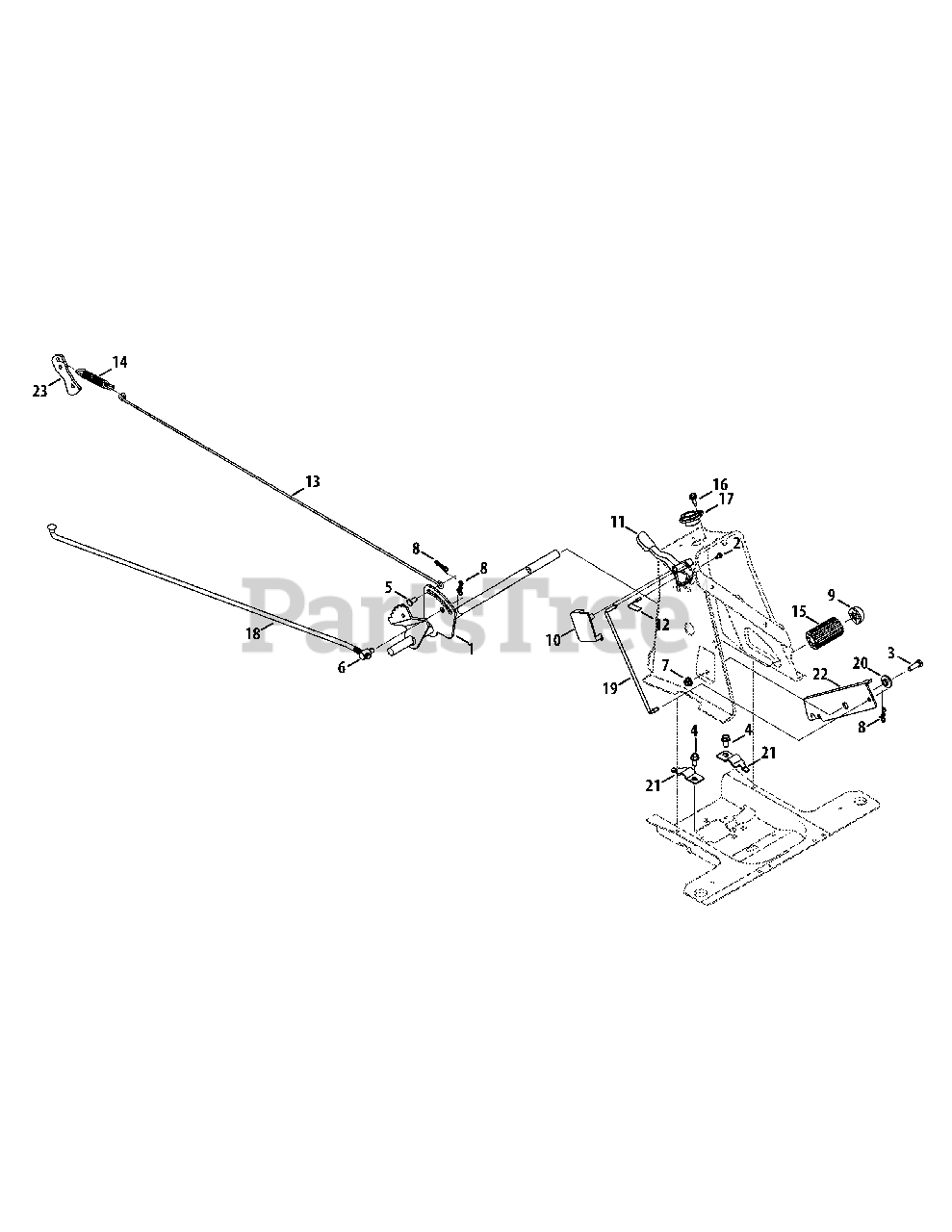

Pedal Controls Parts Diagram

  • Title

1

MTD 683-05017-0637

Brake Pedal Assembly
(Superseded to 683-05017B-0637)

$44.99

$

Usually ships in 3-6 days

0

2

MTD 910-0224

Screw #10-16 x 0.500

$3.99

$

In Stock, Qty 14

0

3

MTD 710-0376

Hex Head Screw 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-04484

Tap Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 711-06097A

Clevis Pin

$

$

Not available

6

MTD 711-06103

Ferrule 3/8-24 x .375 Dia.

$4.49

$

In Stock, Qty 9

0

7

MTD 712-04063

Flange Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

9

MTD 726-0214

Push Cap, 5/8

$11.99

$

In Stock, Qty 20+

0

10

MTD 731-08656A

Speed Control Cover
(Superseded to 731-08656B)

$4.49

$

In Stock, Qty 9

0

11

MTD 731-08743B

Speed Lever, 6-SPEED

$7.99

$

In Stock, Qty 11

0

12

MTD 732-04937

Shift Spring

$4.49

$

In Stock, only 2 left!

0

13

MTD 732-05042A

Brake Rod
(Superseded to 747-06033A)

$20.99

$

In Stock, only 2 left!

0

14

MTD 732-05072

Extension Spring .59 OD x 4.00 Lg.

$4.49

$

Usually ships in 3-6 days

0

15

MTD 735-04279

Foot Pad

$9.49

$

Usually ships in 3-6 days

0

16

MTD 738-04184A

Shoulder Screw .368 x .113, 1/4-20

$7.49

$

In Stock, Qty 20+

0

17

MTD 741-0356A

Steering Col. Bearing .880 ID x 1.36

$7.49

$

In Stock, only 2 left!

0

18

MTD 747-05506

Variable Speed Control Rod

$23.99

$

Usually ships in 3-6 days

0

19

MTD 747-06015

Speed Selector Control Rod

$12.99

$

Usually ships in 3-6 days

0

20

MTD 748-0234

Shoulder Spacer

$4.99

$

In Stock, Qty 10

0

21

MTD 783-05940

Pedal Strap Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

22

MTD 783-08116A-0637

Speed Latch Bracket
(Superseded to 783-08116C-0637)

$11.99

$

Usually ships in 3-6 days

0

23

MTD 717-0772B

Brake lever Bracket

$13.99

$

Usually ships in 3-6 days

0
