CR 38 (954040507-A) - Husqvarna Grass Catcher (1997-12)

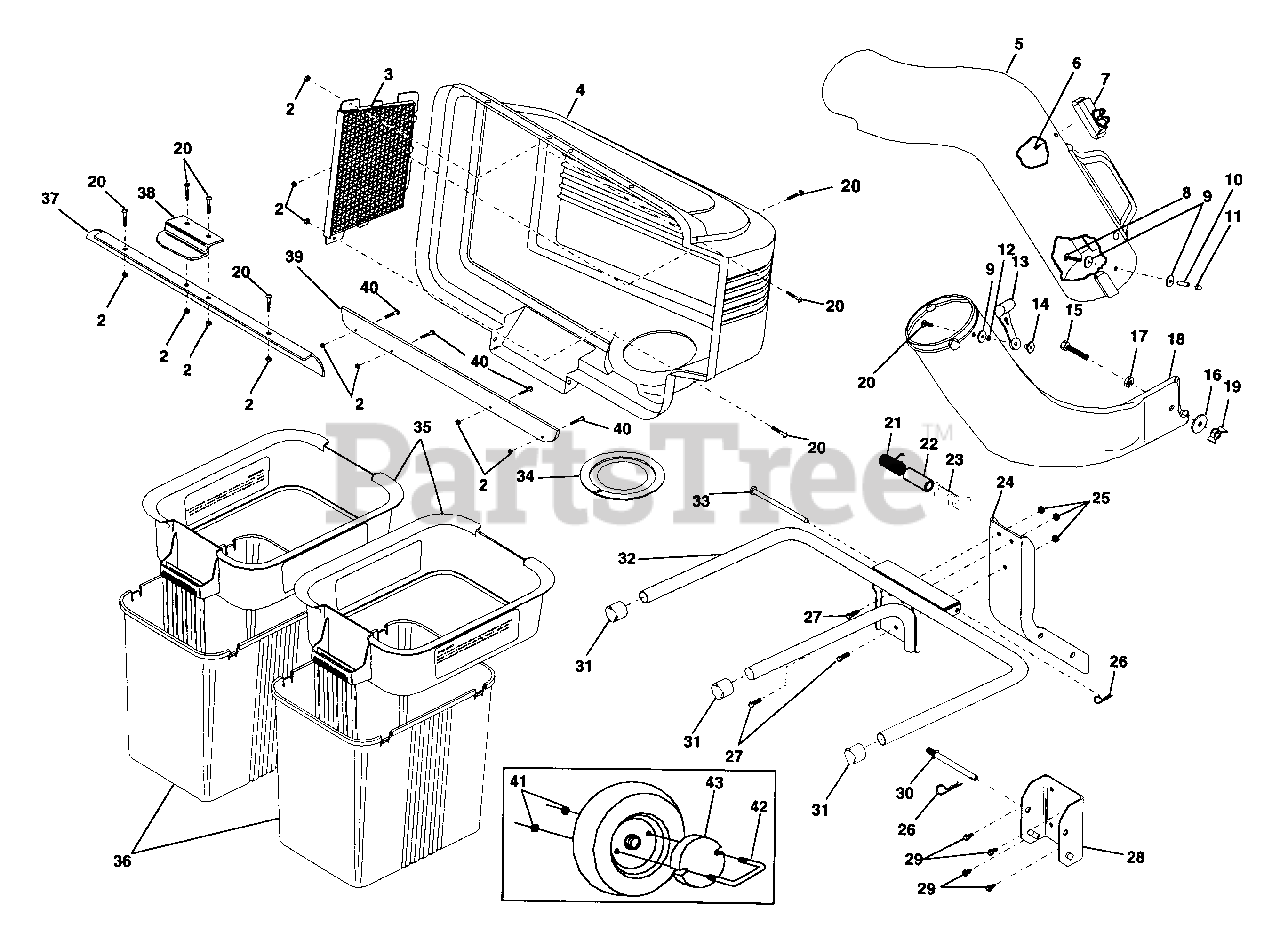

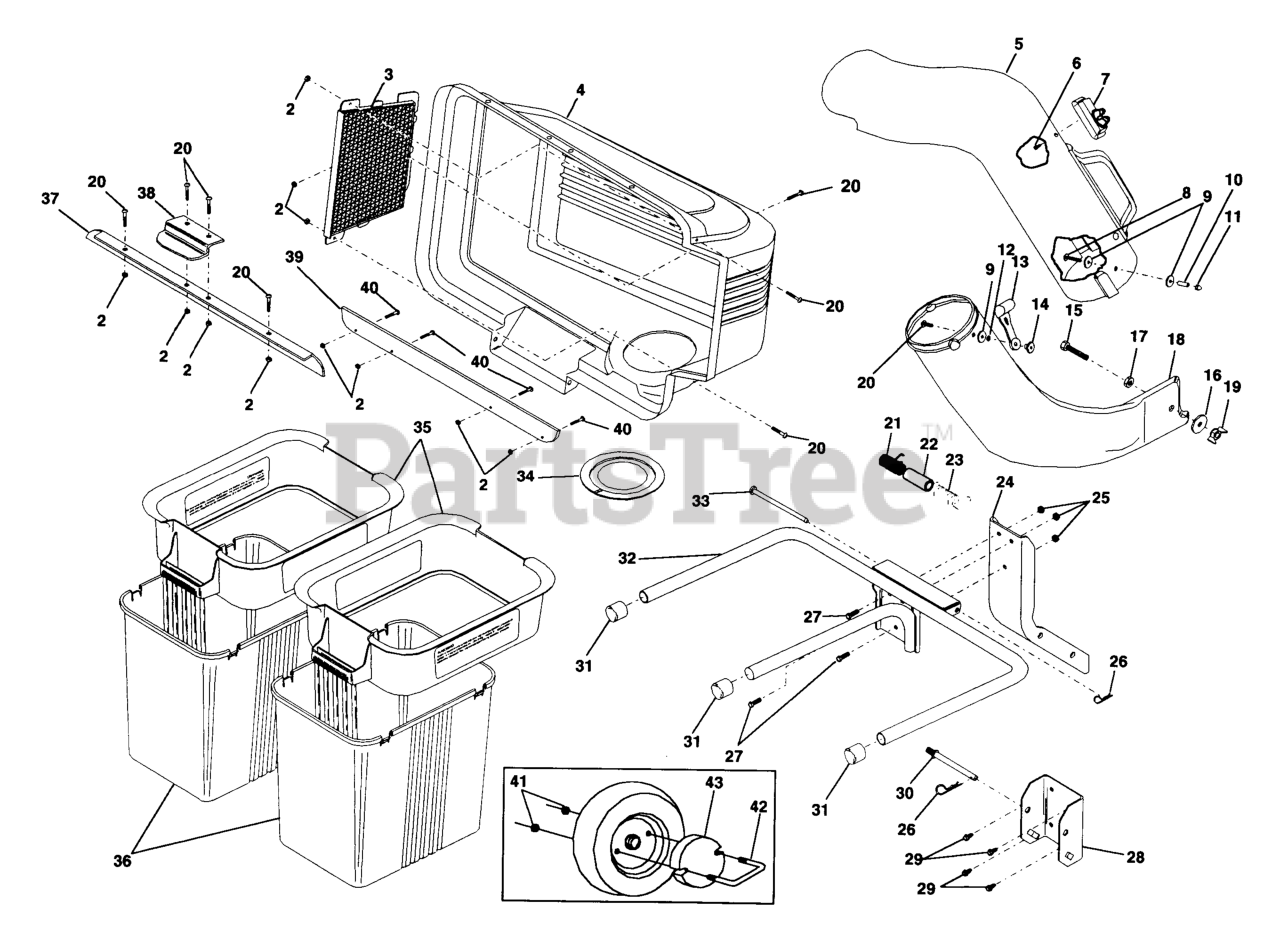

Grass Catcher

CR 38 (954040507-A) - Husqvarna Grass Catcher (1997-12) > Parts Diagrams (1) > Grass Catcher

  • Title
532069180

2

Nut, Crownlock #10-24

Part# 532069180

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $3.01

532127533

3

Screen, Cover

Part# 532127533

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $13.41

532140654

4

Cover

Part# 532140654 (Superseded to 532171061)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $89.43

532139569

5

Chute, Upper

Part# 532139569

OEM Warranty Repair Part for Husqvarna

Not available

818021008

6

Screw, Special #10-14 x 1/2

Part# 818021008

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $4.46

532140572

7

Dump Bag Indicator

Part# 532140572

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $5.58

532087175

8

Screw, #10-24 x 1-1/8

Part# 532087175 (Superseded to 874981024)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $6.70

819061216

9

Washer 3/16 x 3/4 x 16 Ga.

Part# 819061216

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $3.01

532007206

10

Spacer, Split

Part# 532007206

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $4.46

532060867

11

Nut, Acorn #10-24

Part# 532060867 (Superseded to 539108086)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $2.23

810071000

12

Washer, lock

Part# 810071000

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $3.34

532109808

13

Latch, Chute

Part# 532109808

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $3.01

532125004

14

Nut, Weld

Part# 532125004 (Superseded to 532002029)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

874930620

15

Bolt, Hex 3/8-16 x 1-1/4

Part# 874930620

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

819131616

16

Washer 13/32 x 1 x 16 Ga.

Part# 819131616 (Superseded to 819131612)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.46

873750600

17

Locknut 3/8-16

Part# 873750600 (Superseded to 873770600)

OEM Warranty Repair Part for Husqvarna

Not available

532132807

18

Chute, Lower

Part# 532132807

OEM Warranty Repair Part for Husqvarna

Not available

532135651

19

Wingnut 3/8-16

Part# 532135651

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

871161010

20

Screw #10-24 x 5/8

Part# 871161010 (Superseded to 871081010)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.90

532132796

21

Spring, Cover L.H. (black)

Part# 532132796

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

532133235

22

Spacer, Cover

Part# 532133235

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

532132983

23

Spring, Cover R.H. (gray)

Part# 532132983

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

532127720

24

Post, Support

Part# 532127720

OEM Warranty Repair Part for Husqvarna

Not available

532063124

25

Locknut 5/16 x 18

Part# 532063124 (Superseded to 873800500)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $3.01

532124670

26

Spring, Retainer

Part# 532124670

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $2.76

874760512

27

Bolt, Hex 5/16-18 x 3/4

Part# 874760512 (Superseded to 874780512)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $2.23

532130889

28

Bracket, Mounting

Part# 532130889 (Superseded to 532170053)

OEM Warranty Repair Part for Husqvarna

Not available

817490508

29

Screw 5/16-18 x 1/2 Hex, Self Tapping

Part# 817490508

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

532131137

30

Pin, Support Post

Part# 532131137

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $7.82

532134496

31

Plug, Tubing End

Part# 532134496 (Superseded to 532174083)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $4.46

532126919

32

Bagger, Frame

Part# 532126919

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $67.07

532128600

33

Pin, Hinge

Part# 532128600 (Superseded to 532192786)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $8.93

532127534

34

Gasket, Cover

Part# 532127534

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $10.05

532129585

35

Container, Top

Part# 532129585 (Superseded to 532183286)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $20.11

532129586

36

Container, Bottom

Part# 532129586

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $70.42

532132256

37

Seal, Cover

Part# 532132256

OEM Warranty Repair Part for Husqvarna

Not available

532130895

38

Latch Handle, Cover

Part# 532130895

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $4.46

532135495

39

Strip, Seal

Part# 532135495 (Superseded to 532155042)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $13.41

871141008

40

Screw #10-24 x 1/2

Part# 871141008

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

873800600

41

Locknut 3/8-16

Part# 873800600 (Superseded to 873680600)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

532137031

42

U-Bolt

Part# 532137031

OEM Warranty Repair Part for Husqvarna

Not available

532123635

43

Wheel Weight

Part# 532123635

OEM Warranty Repair Part for Husqvarna

Not available

532104419

Bag, 3.0 mil. 30 Gallon Trash

Part# 532104419

Note: (Not included with bagger)

OEM Warranty Repair Part for Husqvarna

Currently unavailable

532155946

Owner's Manual

Part# 532155946

Not available
