Criterion 320 - Ferris Criterion Series Front Mount Mower, 20hp Briggs & Stratton Engine Deck Group Parts Diagram

Criterion Series Front Mount Mower, 20hp Briggs & Stratton

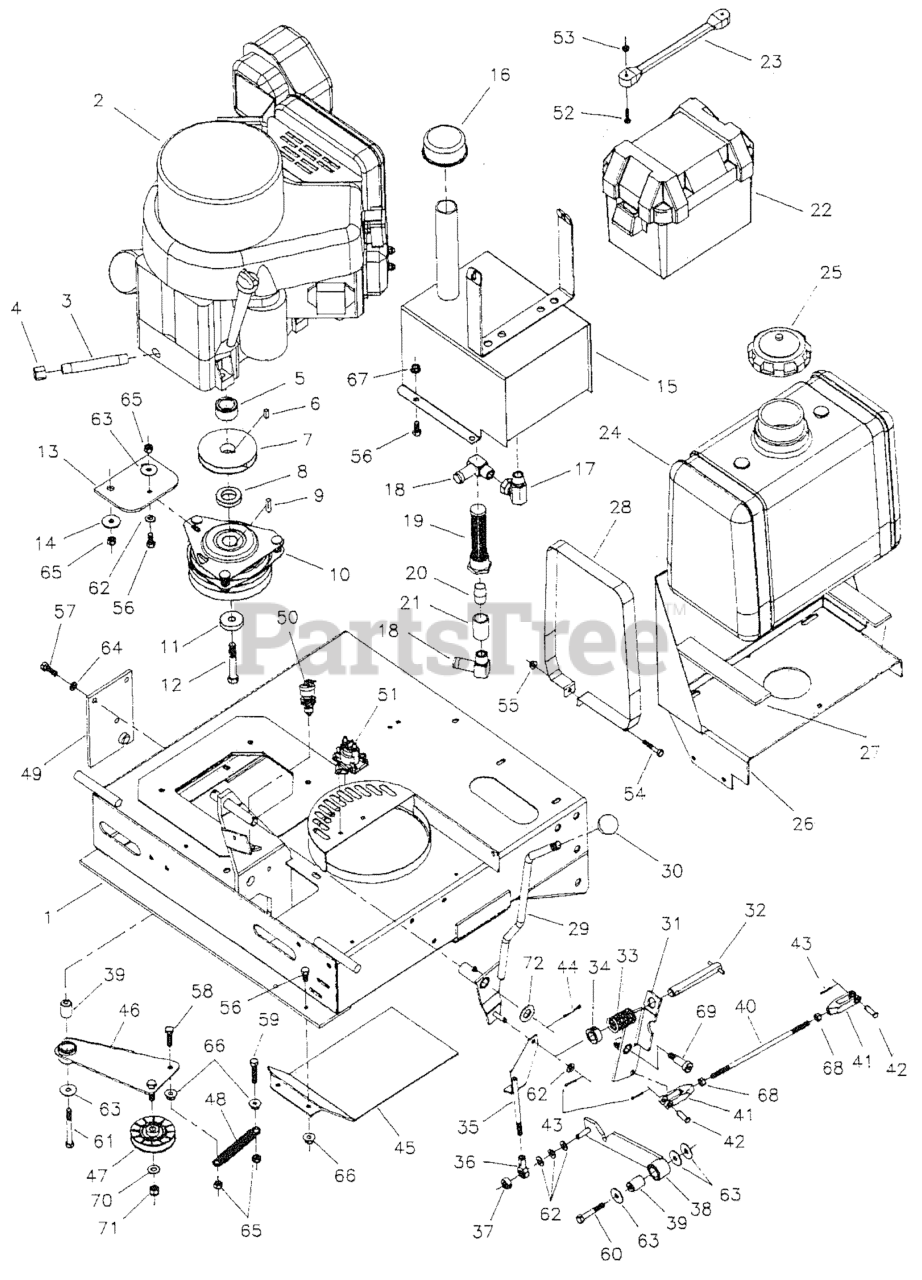

Engine Deck Group Parts Diagram

  • Title

1

Ferris 5030775X001

Engine Deck

$

$

Currently unavailable

2

Engine, Briggs & Stratton 20HP

$

$

Not available

3

Ferris 5021707

Nipple, 3/8" Nl'T x 4-1/2"

$

$

Currently unavailable

4

Ferris 5021466

Cap, 3/8" NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

5

Ferris 5043581

Spacer, Crank Shaft

$23.99

$

Usually ships in 2-12 days

0

6

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5042129

Pulley, Crank Shaft

$94.99

$

Usually ships in 2-12 days

0

8

Ferris 5043625

Spacer, Clutch

$21.99

$

Usually ships in 2-12 days

0

9

Ferris 5050407X1

Key, 1/4" Sq. x 1"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, Qty 9

0

10

Ferris 5021083

Clutch, Electric
(Superseded to 5021083SM)

$683.99

$

Usually ships in 2-12 days

0

11

Ferris 5042132

Washer, Clutch Retaining
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

12

Ferris 5043626

Bolt, Dri-Lock
(Superseded to 5102866)

$5.49

$

Usually ships in 2-12 days

0

13

Ferris 5043636

Pad, Clutch Mount
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5044617

Washer, Clutch Anchor
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

15

Ferris 5030789B

Hydro Tank Assembly (complete wi fittings & breather)
(Superseded to 5030774B)

$284.99

$

Usually ships in 2-12 days

0

15

Ferris 5030774B

HYDRO TANK WELDMENT

$284.99

$

Usually ships in 2-12 days

0

16

Ferris 5021871

BREATHER
(Superseded to 5021871SM)

$37.99

$

Usually ships in 2-12 days

0

17

Ferris 5021132

Fitting, 90° 1/2" NPT Swivel
(Superseded to 5021132FS)

$21.99

$

Usually ships in 2-12 days

0

18

Ferris 5021160

Fitting, 90° 112" NPT
(Superseded to 5021160SM)

$27.99

$

Usually ships in 2-12 days

0

19

Ferris 5021082

Strainer, In-Line

$68.99

$

Usually ships in 2-12 days

0

20

Ferris 5021163

Nipple, 1/2" NPT Close

$

$

Not available

21

Ferris 5020985

Coupler, 1/2" NPT

$

$

Not available

22

Ferris 5021666

Box, Battery
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

23

Ferris 5021670

Strap, Rubber
(Superseded to 5021670SM)

$13.99

$

Usually ships in 2-12 days

0

24

Ferris 5410709

TANK, FUEL, PLASTIC, 6 GALLON W/ FUEL LINE

$272.99

$

Usually ships in 2-12 days

0

25

Ferris 5022158

CAP, FUEL TANK, 3-1/2 NECK

$33.99

$

Usually ships in 2-12 days

0

26

Ferris 5044692B

Mount, Fuel Tank
(Superseded to 5044692BFS)

$207.99

$

Usually ships in 2-12 days

0

27

Ferris 5021877

Pad, Rubber Mount
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

28

Ferris 5044693B

Strap, 6 Gal. Fuel Tank
(Superseded to 5044693BFS)

$34.99

$

Usually ships in 2-12 days

0

29

Ferris 5030919B

Brake Lever
(Superseded to 5030919BFS)

$136.99

$

Usually ships in 2-12 days

0

30

Ferris 5021733

Knob
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

31

Ferris 5043971B

Brake Rocker Arm

$

$

Currently unavailable

32

Ferris 5043982B

Bar, Spring

$

$

Currently unavailable

33

Ferris 5021667

Spring, Compression

$11.99

$

Usually ships in 2-12 days

0

34

Ferris 5010477

Collar, 5/8" Set
(Superseded to 5010477FS)

$17.99

$

Usually ships in 2-12 days

0

35

Ferris 5043972B

Brake Lock
(Superseded to 5043972BFS)

$39.99

$

Usually ships in 2-12 days

0

36

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

Usually ships in 2-12 days

0

37

Ferris 5020047

Collar, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

38

Ferris 5042317B

Neutral Lock wi Bushing
(Superseded to 5042317BFS)

$56.99

$

Usually ships in 2-12 days

0

38

Ferris 5020876

Bushing, Brass
(Superseded to 5023344)

$9.49

$

Usually ships in 2-12 days

0

39

Ferris 5042134

Spacer, Pivot
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

40

Ferris 5043976

Rod, Brnke Linkage

$23.99

$

Usually ships in 2-12 days

0

41

Ferris 5020979

Clevis, 5/16" Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

42

Ferris 5025213X8

Pin, Clevis
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

43

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

44

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

45

Ferris 5044616B

Plate, Skid

$

$

Currently unavailable

46

Ferris 5042169B

Idler Arm wi Bushing

$71.99

$

Usually ships in 2-12 days

0

46

Ferris 5020876

Bushing, Brass
(Superseded to 5023344)

$9.49

$

Usually ships in 2-12 days

0

47

Ferris 5043627

Pulley, Idler
(Superseded to 5043627SM)

$45.99

$

In Stock, only 2 left!

0

48

Ferris 5020807

Spring, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, only 2 left!

0

49

Ferris 5045570B

WELD, BRACKET, PIVOT - LEFT

$47.99

$

Usually ships in 2-12 days

0

49

Ferris 5045571B

WELD, BRACKET, PIVOT - RIGHT

$51.99

$

Usually ships in 2-12 days

0

50

Ferris 5021522

Switch, Plunger
(Superseded to 5021522YP)

$32.99

$

In Stock, only 2 left!

0

51

Ferris 5021886

Solenoid, Starter

$

$

Currently unavailable

52

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

53

Ferris 5025271

Nut, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

54

Ferris 5025010X12

Bolt, 1/4-20 x 1-1/2" GD.5
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

55

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

56

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

57

Ferris 5025011X8

Bolt, 5/16-18 xl" GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

58

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

59

Ferris 5025055X14

Bolt, 5/16-18 x 1-3/4" TFL GD.5
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

60

Ferris 5025011X16

Bolt, 5/16-18 x 2" GD.5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

61

Ferris 5025011X24

Bolt, 5/16-18 x 3" GD.5
(Superseded to 5025011X24SM)

$3.99

$

In Stock, only 1 left!

0

62

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

63

Ferris 5025164

Washer, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

64

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 1 left!

0

65

Ferris 5025057

Nut, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

66

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

67

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

68

Ferris 5025033

Nut, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

69

Ferris 5025223

Bolt, 3/8-16 - 112" Dia. x I" Shoulder
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

70

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

71

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 2 left!

0

72

Ferris 5025281

Washer, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

Usually ships in 2-12 days

0

73

Ferris 5050831X25

Fuel Line, 25" Long (tank to filter)
(Superseded to 5050831X25SM)

$19.99

$

Usually ships in 2-12 days

0

74

Ferris 5021178X3

Filter, Fuel
(Superseded to 5021178X3FS)

$12.99

$

In Stock, only 2 left!

0

75

Ferris 5050831X19

Fuel Line, 19" Long (filter to engine)
(Superseded to 5050831X19FS)

$6.49

$

Usually ships in 2-12 days

0

76

Ferris 93807

Clamp, Hose (for fuel line)
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

77

Ferris 5050833X24

Wire Loom, 24" Long (covers fuel line #1550831-25)

$5.49

$

Usually ships in 2-12 days

0
