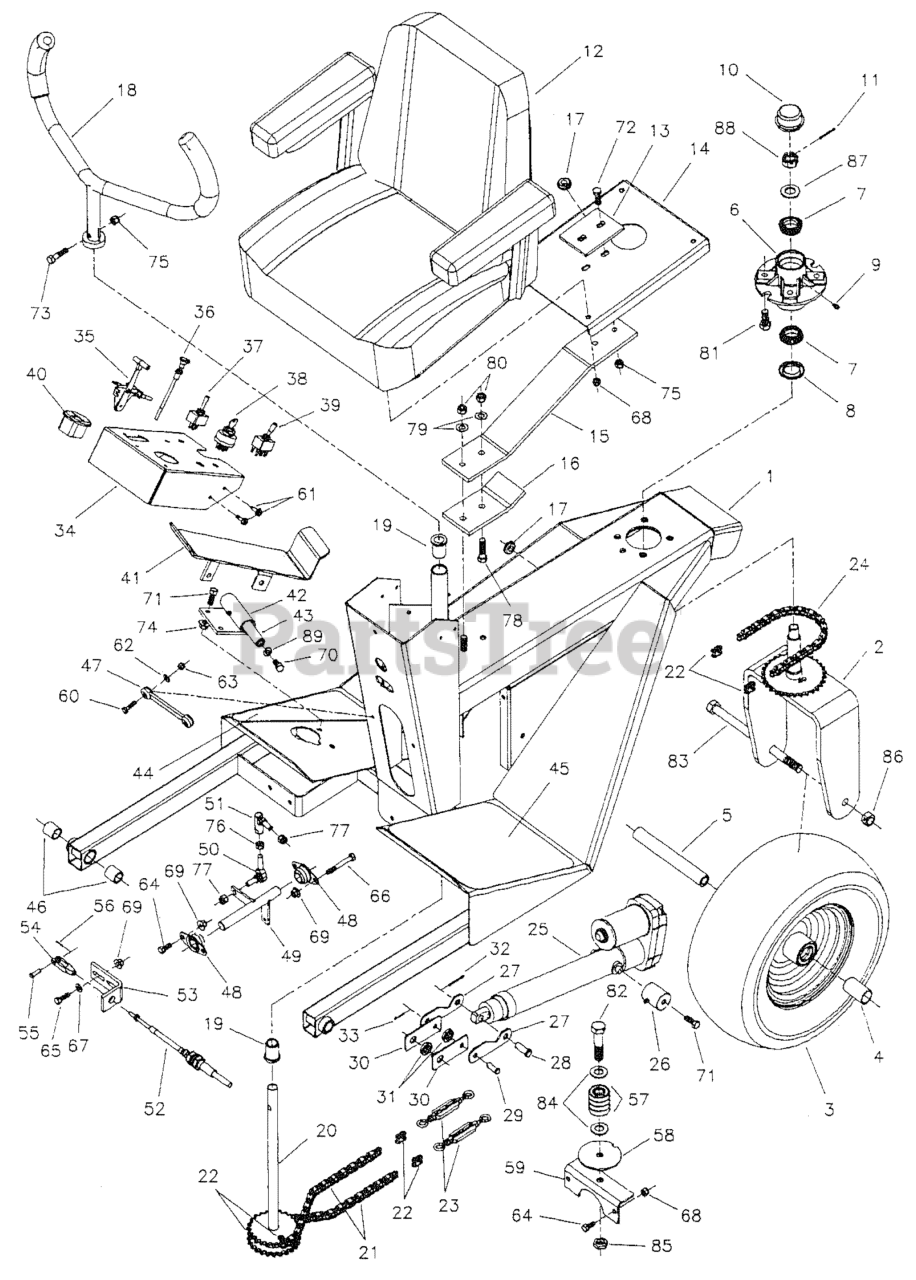

Criterion 320 - Ferris Criterion Series Front Mount Mower, 20hp Briggs & Stratton Rider Frame Group Parts Diagram

Criterion Series Front Mount Mower, 20hp Briggs & Stratton

Rider Frame Group Parts Diagram

  • Title

1

Ferris 5030770B

Trailer Weldment

$

$

Currently unavailable

2

Ferris 5042127B

Mount, Steering Tire

$330.99

$

Usually ships in 2-12 days

0

3

Ferris 5021150

Tire, Steering

$373.99

$

Usually ships in 2-12 days

0

4

Ferris 5042315

Spacer, Axle
(Superseded to 5042315SM)

$21.99

$

Usually ships in 2-12 days

0

5

Ferris 5042314

Axle, Steering Tire
(Superseded to 5042314SM)

$39.99

$

Usually ships in 2-12 days

0

6

Ferris 5042110

Hub, Steering

$

$

Not available

7

Ferris 5020884

Bearing, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, only 2 left!

0

8

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

Usually ships in 2-12 days

0

9

Ferris 5020095

Grease Fitting
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

10

Ferris 5021073

Cap, Dust
(Superseded to 5021073SM)

$7.49

$

In Stock, Qty 6

0

11

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5022167

Seat

$

$

Currently unavailable

13

Ferris 5041522B

Support, Seat Plate

$25.99

$

Usually ships in 2-12 days

0

14

Ferris 5042082B

Plate, Seat

$106.99

$

Usually ships in 2-12 days

0

15

Ferris 5041836B

Spring, Seat
(Superseded to 5041836KIT)

$97.99

$

In Stock, only 1 left!

0

16

Ferris 5042252B

Support, Seat Spring
(Superseded to 5041836KIT)

$97.99

$

In Stock, only 1 left!

0

17

Ferris 5021077

Grommet, 1/2

$

$

Currently unavailable

18

Ferris 5030314B

Steering Handle Assembly

$

$

Currently unavailable

18

Ferris 5020837

Grip, Foam
(Superseded to 5020837SM)

$12.99

$

Usually ships in 2-12 days

0

18

Ferris 5020602

Collar, I Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

19

Ferris 5020823

Bushing, Flange
(Superseded to 5020823SM)

$10.99

$

In Stock, Qty 7

0

20

Ferris 5042087

Shaft, Steering Sprocket
(Superseded to 5042087SM)

$174.99

$

Usually ships in 2-12 days

0

21

Ferris 5010673X31

Chain, Roller - 31 Links

$9.49

$

Usually ships in 2-12 days

0

22

Ferris 5010674

Connector, Chain Link
(Superseded to 5010674SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5042090

Turnbuckle
(Superseded to 5042090SM)

$23.99

$

Usually ships in 2-12 days

0

24

Ferris 5010673X35

Chain, Roller - 35 Links

$22.99

$

Usually ships in 2-12 days

0

25

Ferris 5043536

Actuator, Electric Lift
(Superseded to 5100713SM)

$1067.99

$

Usually ships in 2-12 days

0

26

Ferris 5044082

Mount, Actuator
(Superseded to 5044082SM)

$46.99

$

Usually ships in 2-12 days

0

27

Ferris 5043677

Link, Actuator Lower
(Superseded to 5043677FS)

$14.99

$

Usually ships in 2-12 days

0

28

Ferris 5043688

Pin, Clevis
(Superseded to 5043688SM)

$4.99

$

Usually ships in 2-12 days

0

29

Ferris 5025214X8

Pin, Clevis
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

30

Ferris 5044618

Link, Actuator
(Superseded to 5044618FS)

$15.99

$

Usually ships in 2-12 days

0

31

Ferris 5041477

Spacer, Blade
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

32

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

34

Ferris 5044212B

Dash

$

$

Currently unavailable

35

Ferris 5021662

Cable, Throttle

$80.99

$

Usually ships in 2-12 days

0

36

Ferris 5021675

CABLE, CHOKE CONTROL, 45

$63.99

$

In Stock, only 1 left!

0

37

Ferris 5021734

Switch, Actuator
(Superseded to 5021734SM)

$52.99

$

Usually ships in 2-12 days

0

38

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

Usually ships in 2-12 days

0

39

Ferris 5021545

Switch, Electric Clutch
(Superseded to 5021545SM)

$68.99

$

In Stock, only 2 left!

0

40

Ferris 5020060

Hour Meter

$250.99

$

Usually ships in 2-12 days

0

41

Ferris 5042185B

Pedal, Foot Control

$

$

Currently unavailable

41

Ferris 5042281

Safety Walk
(Superseded to 5042281SM)

$9.49

$

Usually ships in 2-12 days

0

42

Ferris 5042137B

Mount, Foot Pedal
(Superseded to 5042137BFS)

$90.99

$

Usually ships in 2-12 days

0

42

Ferris 5020875B

Bushing, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

43

Ferris 5042147

Shaft, Pedal Pivot
(Superseded to 5042147SM)

$20.99

$

Usually ships in 2-12 days

0

44

Ferris 5042282

Safety Walk -Right

$6.49

$

Usually ships in 2-12 days

0

45

Ferris 5041774

Safety Walk -Left

$

$

Currently unavailable

46

Ferris 5020876P

Bushing, Plastic
(Superseded to 5023344SM)

$9.49

$

Usually ships in 2-12 days

0

47

Ferris 5020959

Strap, Rubber
(Superseded to 5020959SM)

$7.49

$

Usually ships in 2-12 days

0

48

Ferris 5021098

Bearing, Bronze Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

49

Ferris 5042184B

Bell Crank

$60.99

$

Usually ships in 2-12 days

0

50

Ferris 5021049

Ball Joint, 3/8 Male Studded

$28.99

$

Usually ships in 2-12 days

0

51

Ferris 5020805

Ball Joint, 3/8 Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

52

Ferris 5021089

Cable, Speed Control
(Superseded to 5021089SM)

$174.99

$

Usually ships in 2-12 days

0

53

Ferris 5042170B

Bracket, Cable
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

54

Ferris 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

55

Ferris 5025212X8

Pin, Clevis
(Superseded to 5025212X8FS)

$2.49

$

Usually ships in 2-12 days

0

56

Ferris 5025204X4

Pin, Cotter

$

$

Currently unavailable

57

Ferris 5021882

Bearing, Roller
(Superseded to 5021882FS)

$11.99

$

Usually ships in 2-12 days

0

58

Ferris 5043652

Wasber, Chain
(Superseded to 5043652FS)

$6.99

$

Usually ships in 2-12 days

0

59

Ferris 5044627B

Mount, Chain Roller
(Superseded to 5044627BFS)

$15.99

$

Usually ships in 2-12 days

0

60

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 4 left!

0

61

Ferris 5025279X6

Bolt, 1/4-20 x 3/4 Self Tapper

$

$

Not available

62

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

63

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

64

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

65

Ferris 5025011X8

Bolt, 5/16-18 x I GD.5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

66

Ferris 5025011X20

Bolt, 5/16-18 x 2-1/2 GD.5
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

67

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

68

Ferris 5025057

Nut, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

69

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

70

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

71

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

72

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

73

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

74

Ferris 5025128

Nut, 3/8-16 Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

75

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 2 left!

0

76

Ferris 5025035

Nut, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

77

Ferris 5025097

Nut, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

78

Ferris 5025291X14

Bolt, 7/16-20 x 1-3/4 GD.8

$

$

Currently unavailable

79

Ferris 5025157

Washer, 7/16 SAE
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

80

Ferris 5025094

Nut, 7/16-20 Hex Nylon Lock
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

81

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

Usually ships in 2-12 days

0

82

Ferris 5025019X24

BOLT, 5/8-11 x 3" GD5 CZ

$

$

Currently unavailable

83

Ferris 5025019X76

Bolt, 5/8-11 x 9-1/2 GD.5 Plain
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

84

Ferris 5025281

Washer, 5/8 SAE
(Superseded to 5025281SM)

$3.99

$

Usually ships in 2-12 days

0

85

Ferris 5025282

Nut, 5/8-11 Hex Nylon Jam
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

86

Ferris 5025103

Nut, 5/8-11 Hex Side Lock
(Superseded to 5025103SM)

$3.49

$

Usually ships in 2-12 days

0

87

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

88

Ferris 5025104

Nut, 3/4-16 Hex Slotted
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0
