CRT 1350 LS (960930016-00) - Husqvarna Rear-Tine Tiller (2009-12) Mainframe, Left Side Parts Diagram

Rear-Tine Tiller

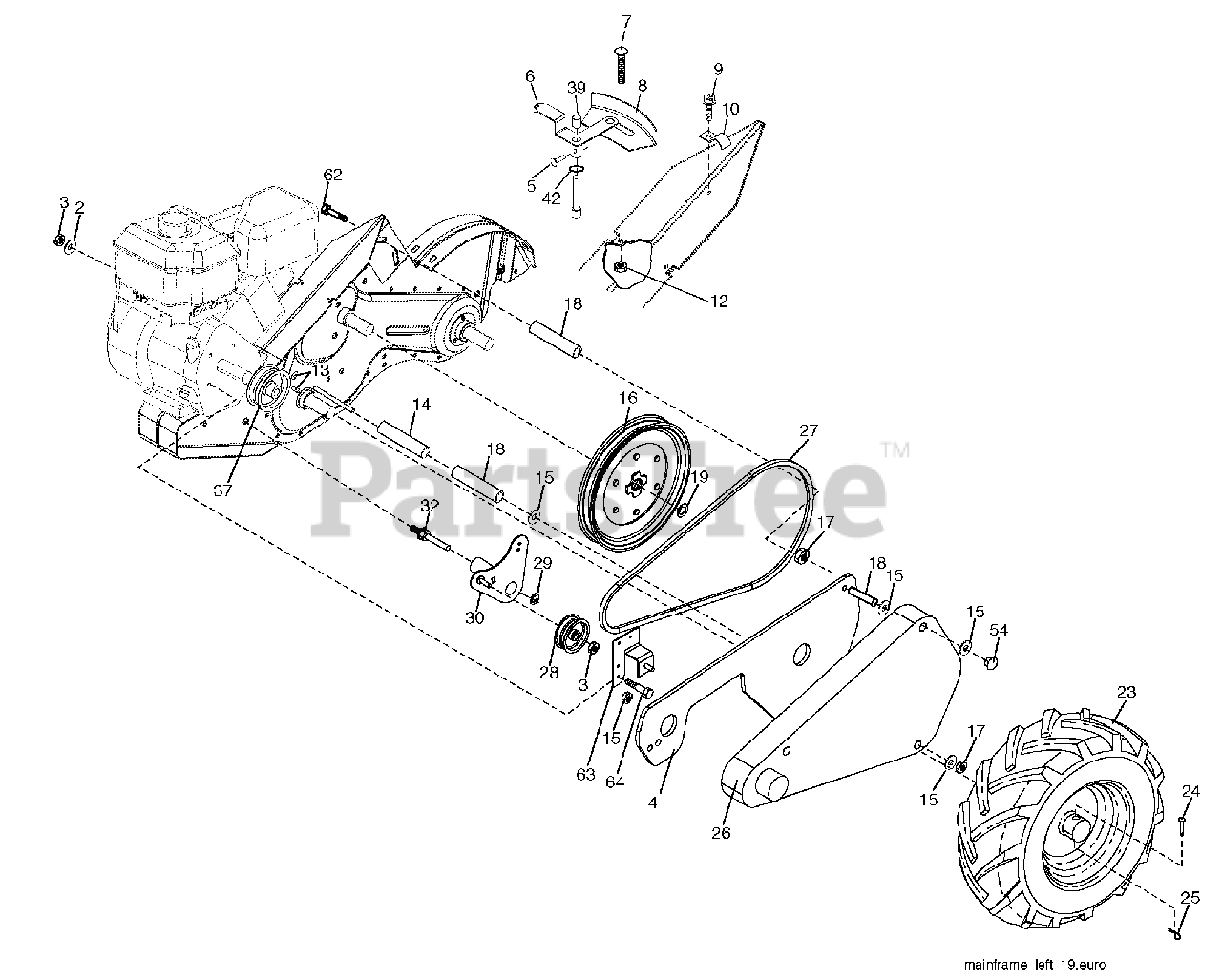

Mainframe, Left Side Parts Diagram

  • Title

2

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 532180046

Shield, Inner Belt Guard RT

$

$

Not available

5

Husqvarna 532164329

Pin Spirol Flared

$7.49

$

In Stock, Qty 12

0

6

Husqvarna 532110111

Lever, Shift

$18.99

$

In Stock, only 1 left!

0

7

Husqvarna 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

Plate, Shift Indicator

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 532086777

Screw, Hex, Washer Head, Slotted #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532009484

Clip

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 873510400

Nut, Keps Hex 1/4-20 unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 823230506

Screw, Set, Hex 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532156117

Spacer, Split 0.327 x 0.42 x 1.220

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532145102

Sheave, Transmission

$66.99

$

In Stock, only 3 left!

0

17

Husqvarna 873220500

Nut Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532131691

Spacer Split

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 14

0

23

Husqvarna 532005015

Tire

$145.99

$

In Stock, only 2 left!

0

Husqvarna 532005014

Rim

$169.99

$

Usually ships in 3-10 days

0

Husqvarna 532124718

Tire Valve
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

24

Husqvarna 532004929

Rivet, Drilled

$7.49

$

In Stock, only 2 left!

0

25

Husqvarna 532124961

Clip, Hairpin
(Superseded to 532004921)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 532181164

Guard, Belt
(Superseded to 532182507)

$27.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532138399

Belt, V

$60.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532104679

Pulley, Idler

$18.99

$

In Stock, only 4 left!

0

29

Husqvarna 812000032

Ring, Klip

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532159229

Bracket, Idler
(Superseded to 584289401)

$

$

Not available

32

Husqvarna 532139401

Shaft, Idler Arm

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532004368

Sheave, Engine

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532140062

Cap Plunger

$6.49

$

In Stock, only 1 left!

0

42

Husqvarna 532106160

O-Ring

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532104214

Nut 5/16-18

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 874930572

Bolt Hex 5/16-18 x 4-1/2

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532175797

Bracket Asm Guard

$

$

Not available

64

Husqvarna 874770508

Bolt Fin 5/16-24 unf x 1/2

$4.99

$

Usually ships in 3-10 days

0
