CRT 1350 LS (960930016-00) - Husqvarna Rear-Tine Tiller (2009-12) Tine Shield Parts Diagram

Rear-Tine Tiller

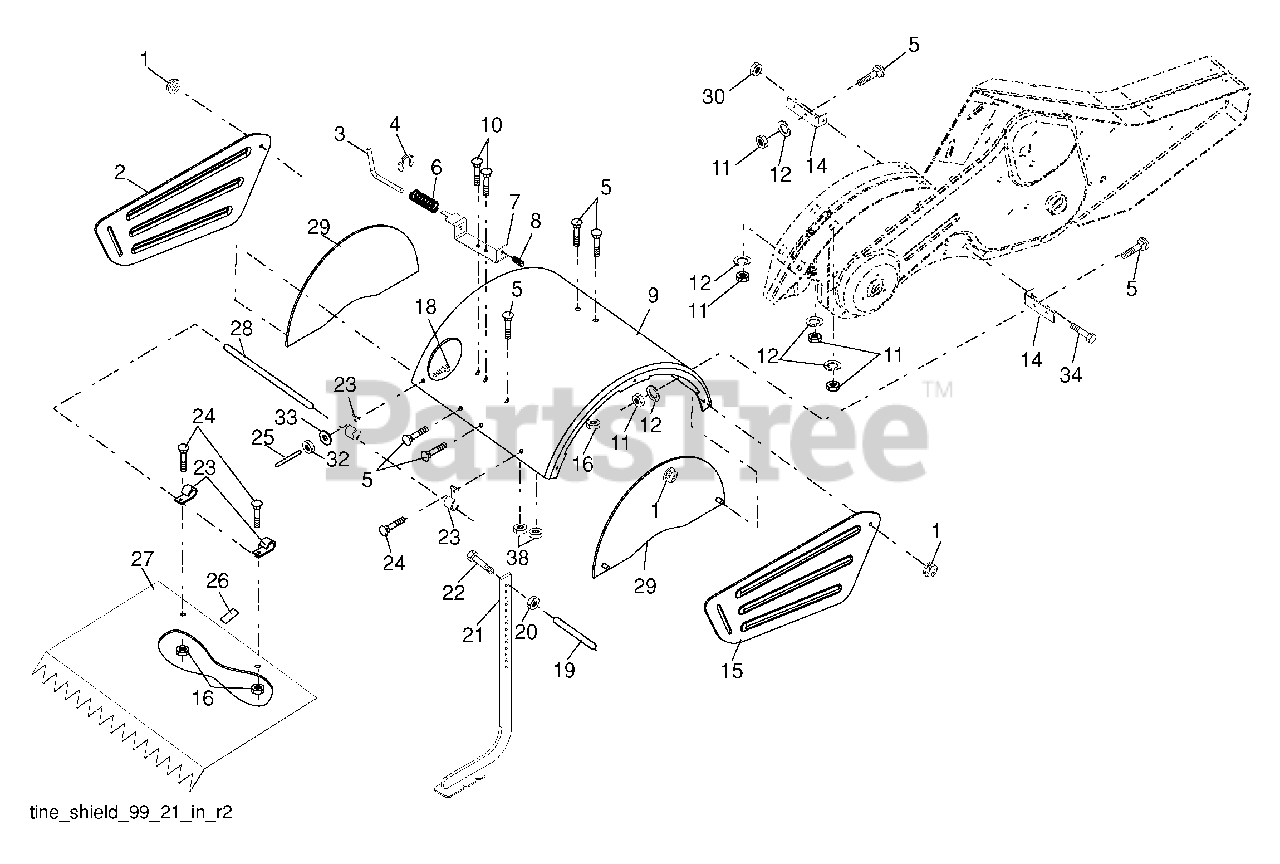

Tine Shield Parts Diagram

  • Title

1

Husqvarna 873900500

Nut, Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

2

Husqvarna 532163560

Shield, Side, Outer L. H.
(Superseded to 532161416)

$

$

Not available

3

Husqvarna 532008393

Pin, Stake, Depth

$28.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000035

Ring, Klip

$3.49

$

In Stock, Qty 6

0

5

Husqvarna 532180847

Bolt 5/16-18 x 3/4
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532008394

Spring

$13.99

$

In Stock, only 2 left!

0

7

Husqvarna 532008392

Bracket, Latch

$

$

Not available

8

Husqvarna 532109230

Spring, Depth Stake

$5.99

$

In Stock, only 4 left!

0

9

Husqvarna 532171616

Shield, Tine
(Superseded to 532442961)

$91.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140508

Bolt Rdhd Sqnk 5/16-18 x 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 14

0

11

Husqvarna 873220500

Nut, Hex 5/16-18
(Superseded to 596436301)

$3.49

$

In Stock, only 3 left!

0

12

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 532124343

Bracket, Shield Tine
(Superseded to 584459301)

$39.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532163561

Shield, Side, Outer R.H.
(Superseded to 532442965)

$

$

Not available

16

Husqvarna 873900400

Nut, Flange Hex 1/4-20 unc
(Superseded to 586668901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 872040410

Bolt, Carriage 1/4-20 x 1-1/4 r. 5

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532102701

Grip

$

$

Not available

20

Husqvarna 873220600

Nut, Hex 3/8-16

$5.99

$

In Stock, only 2 left!

0

21

Husqvarna 532138420

Stake, Depth

$113.99

$

Usually ships in 3-10 days

0

22

Husqvarna 874930632

Bolt, Hex 3/8-16 x 2

$9.49

$

In Stock, only 2 left!

0

23

Husqvarna 532004440

Hinge

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 872140404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5
(Superseded to 596133401)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532124717

Cap, Vinyl
(Superseded to 532006712)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532109227

Pad, Idler

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532145520

Shield, Leveling
(Superseded to 532442990)

$54.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532138609

Pin, Hinge

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532145521

Shield, Side
(Superseded to 532104084)

$

$

Not available

30

Husqvarna 873970500

Nut, Lock Hx Flange
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 873220400

Nut, Fin, Hex 1/4-20 unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Husqvarna 810040400

Washer, Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.49

$

In Stock, only 1 left!

0

34

Husqvarna 874490536

Bolt Hex Flghd 5/16-18 x 2-1/4

$

$

Not available

38

Husqvarna 873510500

Nut Keps 5/16-18 unc
(Superseded to 873800500)

$3.99

$

Usually ships in 3-10 days

0
