CRT 170 S (960920031-00) - Poulan Pro Rear-Tine Tiller (2011-11) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Tiller

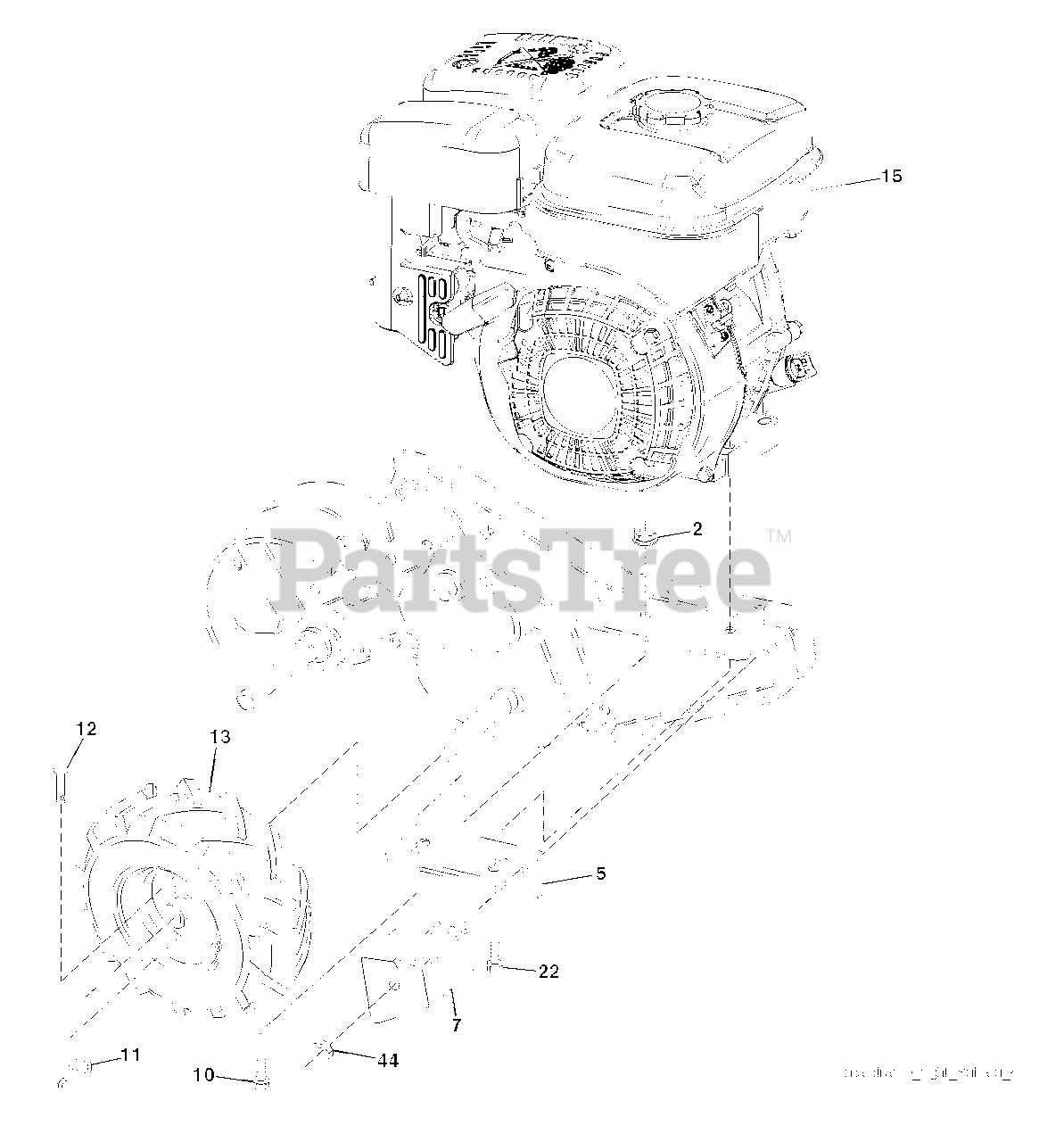

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

2

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

Poulan 532102332

BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

7

Poulan 532102173

COUNTERWEIGHT, RH

Note: RH

$

$

Not available

10

Poulan 874760524

BOLT
(Superseded to 539976935)

$3.99

$

In Stock, only 3 left!

0

11

Poulan 532124788

(Superseded to 532004497)

$4.99

$

In Stock, Qty 12

0

12

Poulan 532126875

RIVET,DRILLED

$3.99

$

In Stock, Qty 20+

0

13

Poulan 532005015

TIRE.16X4-8.CHEVRON.TILLER

$53.99

$

In Stock, only 1 left!

0

--

Poulan 532441869

$

$

Not available

--

Poulan 532124718

(Superseded to 532065139)

$4.99

$

In Stock, Qty 15

0

15

Poulan 000000000

Note: ENGINE SUBARU MODEL EX170DT1030 (422996)

$

$

Not available

22

Poulan 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, only 3 left!

0

44

Poulan 873510600

NUT **

$

$

Not available
