CRT 18 H (21AB455C897) - Columbia 18" Tiller (2014) General Assembly 21AB455C897 Parts Diagram

18" Tiller

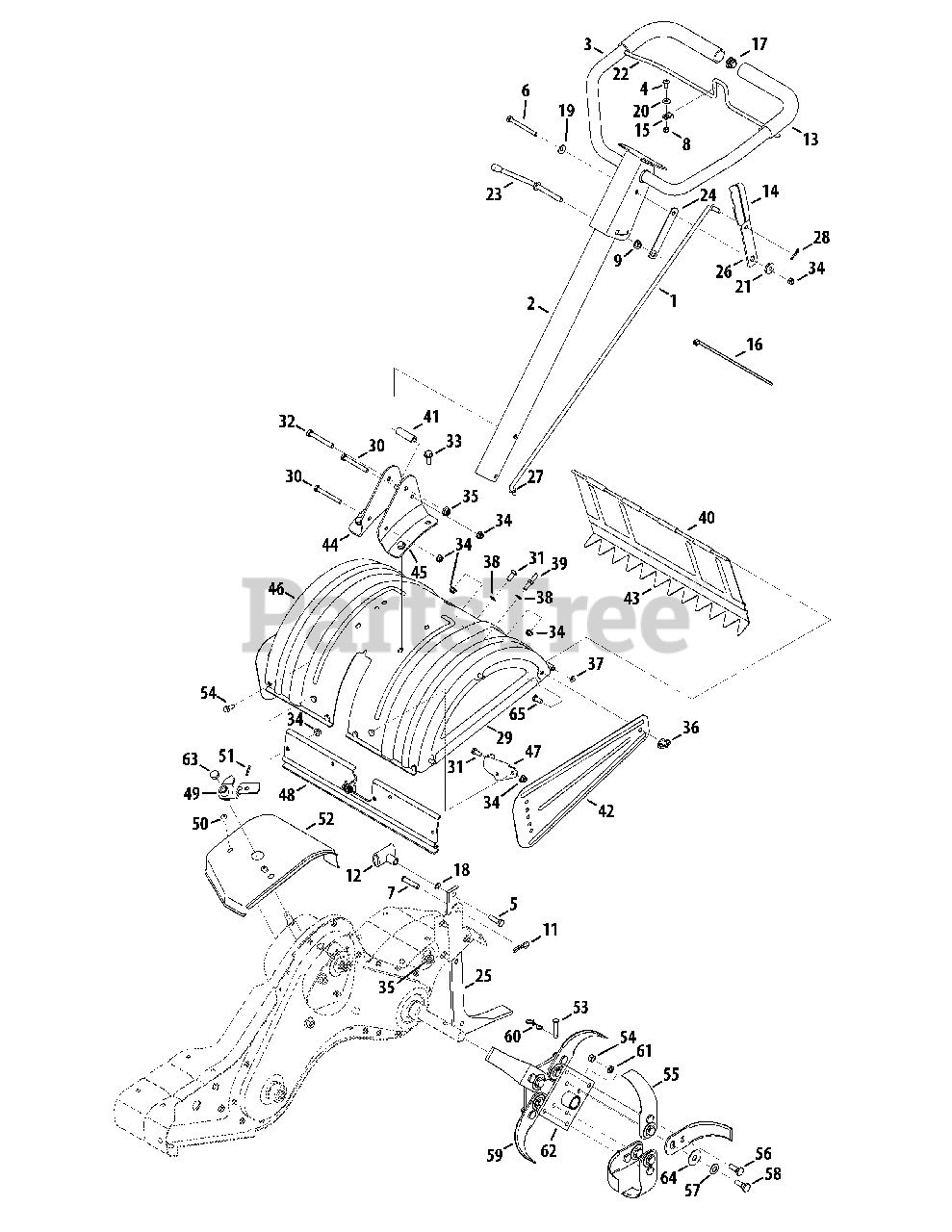

General Assembly 21AB455C897 Parts Diagram

  • Title

1

MTD 747-1152

Shift Rod

$48.99

$

Usually ships in 3-6 days

0

2

MTD 649-0034-0606

Lower Handle Ass’y

$83.99

$

Usually ships in 3-6 days

0

3

MTD 649-0041A-0606

Upper Handle Ass’y
(Superseded to 649-0041B-0606)

$221.99

$

Usually ships in 3-6 days

0

4

MTD 710-0946

Screw 1/4-20 x .625

$3.99

$

Usually ships in 3-6 days

0

5

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3056

Hex Bolt 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

7

MTD 911-0415

Clevis Pin 3/8 Dia
(Superseded to 711-0415)

$4.99

$

In Stock, only 4 left!

0

8

MTD 712-04064

Flanged Lock Nut 1/4-20 Gr. 5

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

10

MTD 912-0429

Hex Ins. L-Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-04043

Hairpin

$5.49

$

In Stock, Qty 20+

0

12

MTD 720-0210A

Small "T" Knob

$16.99

$

In Stock, only 3 left!

0

13

MTD 720-0278A

Grip (2 req’d)

$24.99

$

In Stock, only 2 left!

0

14

MTD 720-0313

Grip

$20.99

$

Usually ships in 3-6 days

0

15

MTD 726-0273

Battery Clamp

$7.99

$

In Stock, only 1 left!

0

16

MTD 726-0317

Cable Tie

$5.49

$

Usually ships in 3-6 days

0

17

MTD 735-0246A

Vinyl End Plug

$6.49

$

In Stock, Qty 12

0

18

MTD 936-0117

Flat Washer .385 ID x .62 OD x .033

$7.49

$

In Stock, only 2 left!

0

19

MTD 736-0242

Bell. Washer .345 ID x .88 OD x .06

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-3090

Flat Washer .260 x .720 x .060

$6.99

$

In Stock, Qty 8

0

21

MTD 938-0958

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

22

MTD 747-1219A-0637

Bail Clutch

$34.99

$

Usually ships in 3-6 days

0

23

MTD 784-0190

Handle Adj. Crank

$25.99

$

Usually ships in 3-6 days

0

24

MTD 784-0191

Bracket Hex Nut Retainer

$7.99

$

Usually ships in 3-6 days

0

25

MTD 786-0120-0637

Depth Bar

$70.99

$

In Stock, Qty 6

0

26

MTD 786-0181-0606

Shift Lever Rod

$20.99

$

Usually ships in 3-6 days

0

27

MTD 735-0127

Rubber Washer .33 ID x .125

$7.49

$

Usually ships in 3-6 days

0

28

MTD 914-0104

Int. Cotter Pin 5/16 Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 16

0

29

MTD 686-0044B-0606

Tine Shield Cover Ass’y

$82.99

$

Usually ships in 3-6 days

0

30

MTD 710-0176

Hex Scr 5/16-18 x 2.75

$4.99

$

In Stock, only 2 left!

0

31

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-3022

Hex Screw 3/8-16 x 2.75" Lg.

$4.99

$

In Stock, only 3 left!

0

33

MTD 710-04482

Carriage Bolt 3/8-16 x .875" Lg.

$4.99

$

In Stock, Qty 20+

0

34

MTD 712-04063

Flanged Lock Nut 5/16-18 Gr. 5

$4.49

$

In Stock, Qty 20+

0

35

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

36

MTD 712-0421

Wing Nut

$7.49

$

In Stock, only 3 left!

0

37

MTD 926-0106

Push Cap
(Superseded to 726-0106)

$

$

Not available

38

MTD 736-0204

Flat Washer .34 ID x .62 OD x .03

$4.49

$

In Stock, Qty 19

0

39

MTD 938-0849

Hex Screw 5/16-18 x .75

$10.99

$

Usually ships in 3-6 days

0

40

MTD 747-0432

Tiller Flap Rod

$14.99

$

Usually ships in 3-6 days

0

41

MTD 750-0885A

Spacer .322 ID x .47 OD

$12.99

$

Usually ships in 3-6 days

0

42

MTD 786-0090A-0606

Side Shield

$38.99

$

Usually ships in 3-6 days

0

43

MTD 786-0113A-0606

Rear Tine Shield

$89.99

$

Usually ships in 3-6 days

0

44

MTD 786-0176-0606

RHHandle Brkt.

$18.99

$

Usually ships in 3-6 days

0

45

MTD 786-0177-0606

LH Handle Brkt.

$18.99

$

Usually ships in 3-6 days

0

46

MTD 786-0178A-0606

Tine Shield

$110.99

$

Usually ships in 3-6 days

0

47

MTD 786-0179-0637

Tine Shield Brkt.

$52.99

$

Usually ships in 3-6 days

0

48

MTD 786-0180-0637

Shoulder Spacer

$50.99

$

Usually ships in 3-6 days

0

49

MTD 686-0109A

Shift Crank Ass’y

$39.99

$

Usually ships in 3-6 days

0

50

MTD 710-1652

Hex Hd TT Scr. 1/4 x .625" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 715-0120

Spring Pin Roll 3/16 Dia.

$11.99

$

In Stock, Qty 5

0

52

MTD 784-0208C-0606

Shift Cover

$

$

Not available

53

MTD 911-0415

Clevis Pin 3/8 Dia
(Superseded to 711-0415)

$4.99

$

In Stock, only 4 left!

0

54

MTD 712-3054

Hex L-Nut 3/8-24 (Grade 5)

$4.49

$

In Stock, Qty 19

0

55

MTD 742-0305A-0637

13" Dia. Articulating Tine

$21.99

$

In Stock, Qty 20+

0

56

MTD 938-0689

Shld. Scr. 1/2 Dia. x .175

$9.99

$

Usually ships in 3-6 days

0

57

MTD 936-0253

Belleville washer .505 ID x 1.00 OD x .0
(Superseded to 736-0253)

$

$

Not available

58

MTD 938-0688

Shld. Bolt 1/2" Dia. x .320

$10.99

$

In Stock, Qty 13

0

59

MTD 784-0160-0637

Tine Adapter Assembly, 18"

$122.99

$

In Stock, only 3 left!

0

59

MTD 984-0205A-0637

Tine Assembly

Note: (Includes:712-3054 (x16), 936-0169 (x16), 936-0208 (x8), 936-0253 (x8), 938-0688 (x8), 938-0689 (x8), 742-0305A-0637 (x8) & 784-0160-0637 (x1)) (not shown)

$228.99

$

In Stock, only 2 left!

0

60

MTD 714-04043

Bow Tie Cotter Pin

$5.49

$

In Stock, Qty 20+

0

61

MTD 936-0169

L-Wash 3/8 ID
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

62

MTD 784-0161-0637

Tine Adapter Plate

$59.99

$

Usually ships in 3-6 days

0

63

MTD 731-07556

Cap

$3.99

$

Usually ships in 3-6 days

0

64

MTD 710-1307

Stud, 5/16-18 x .75

$7.49

$

Usually ships in 3-6 days

0
