CRT 18 H (21AB455C897) - Columbia 18" Tiller (2015) Handle Parts Diagram

18" Tiller

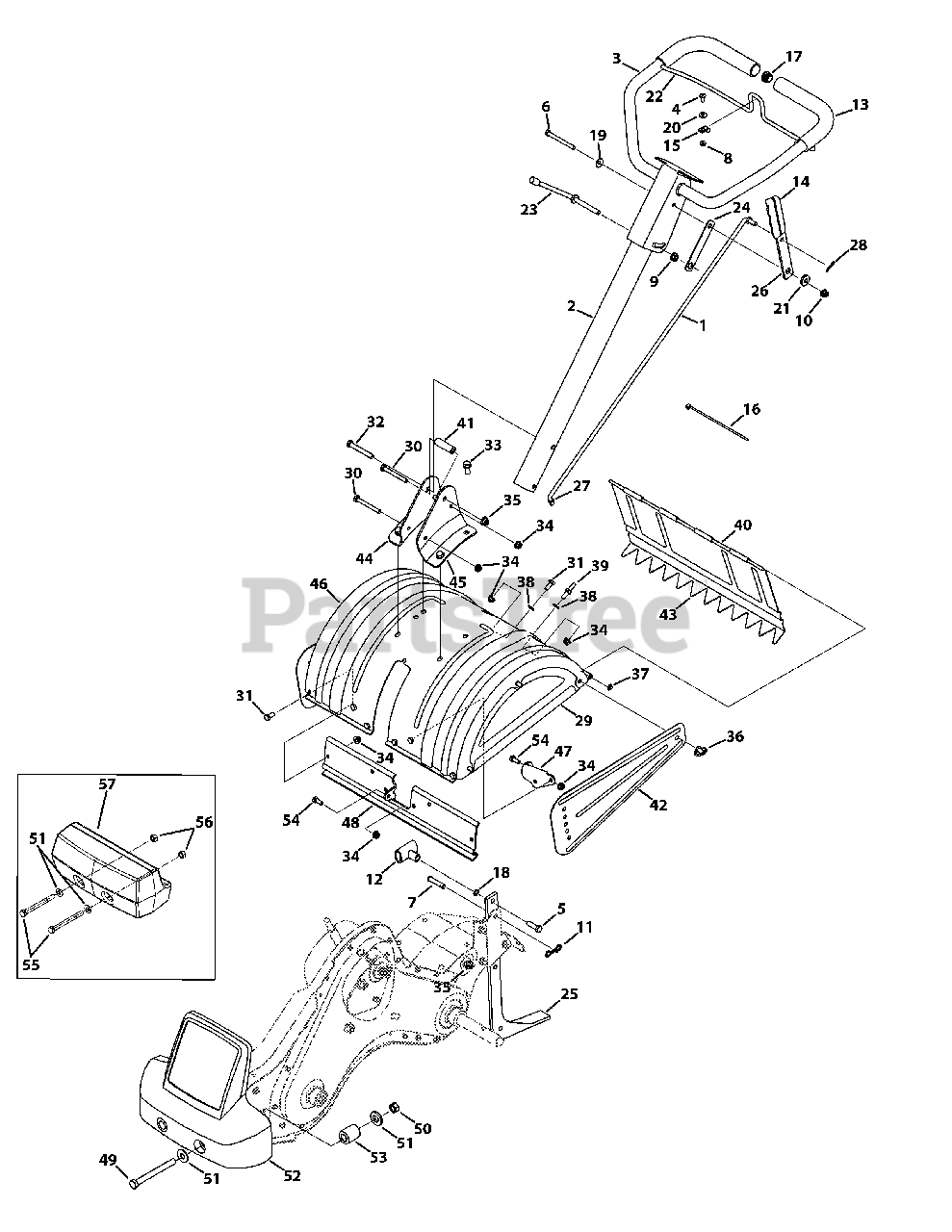

Handle Parts Diagram

  • Title

1

MTD 747-1152

Shaft Rod

$42.99

$

Usually ships in 3-6 days

0

2

MTD 649-0034-0606

Lower Handle Tube Assembly

$73.99

$

Usually ships in 3-6 days

0

3

MTD 649-0041A-0606

Upper Handle Assembly
(Superseded to 649-0041B-0606)

$194.99

$

Usually ships in 3-6 days

0

4

MTD 710-0946

Screw, 1/4-20 x 0625

$3.49

$

Usually ships in 3-6 days

0

5

MTD 710-3005

Hex Head Screw, 3/8-16:125

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-3056

Hex Head Screw, 5/16-18 x 325

$9.49

$

In Stock, only 1 left!

0

7

MTD 911-0415

Clevis Pin, 375 X 175
(Superseded to 711-0415)

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0379

Flangelock Nut, 3/8-24

$4.49

$

Usually ships in 3-6 days

0

10

MTD 712-04063

Hex Flange Top L-Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 714-04043

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

12

MTD 720-0210A

Small Tee Knob

$14.99

$

In Stock, Qty 6

0

13

MTD 720-0278A

Foam Grip, 970 x 110

$21.99

$

In Stock, Qty 5

0

14

MTD 720-0313

Grip, 1875 x 100

$18.99

$

Usually ships in 3-6 days

0

15

MTD 726-0273

Battery Clamp, 5/16

$6.99

$

In Stock, only 1 left!

0

16

MTD 726-0317

Cable Tie, 85 LG

$4.99

$

Usually ships in 3-6 days

0

17

MTD 735-0246A

End Plug

$5.49

$

Usually ships in 3-6 days

0

18

MTD 936-0117

Washer, Flat, 385 x 620 x 033

$6.99

$

In Stock, only 1 left!

0

19

MTD 736-0242

Washer, Bell, 340 x 872 x 060

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-3090

Washer, Flat, 260 x 720 x 060

$6.49

$

In Stock, only 2 left!

0

21

MTD 938-0958

Spacer, Shoulder, 50 x 190 x 360 LG

$3.99

$

Usually ships in 3-6 days

0

22

MTD 747-1219A-0637

Clutch Bail

$30.99

$

In Stock, only 1 left!

0

23

MTD 784-0190

Handle Adjustment Crank

$22.99

$

Usually ships in 3-6 days

0

24

MTD 784-0191

Hex Nut Retainer Bracket

$6.99

$

Usually ships in 3-6 days

0

25

MTD 786-0120-0637

Tiller Depth Control

$63.99

$

In Stock, only 3 left!

0

26

MTD 786-0181-0606

Shaft Rod Lever

$17.99

$

Usually ships in 3-6 days

0

27

MTD 735-0127

Washer, Rubber, 33 ID x 87 OD x 125

$6.49

$

Usually ships in 3-6 days

0

28

MTD 914-0104

Cotter Pin, 072 x 112 LG
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

29

MTD 686-0044B-0606

End Cover Assembly

$72.99

$

Usually ships in 3-6 days

0

30

MTD 710-0176

Hex Head Screw, 5/16-18 x 275

$4.49

$

In Stock, only 2 left!

0

31

MTD 710-3008

Hex Head Screw, 5/16-18 x 75

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-3022

Hex Head Screw, 3/8-16 x 275

$4.49

$

In Stock, Qty 10

0

33

MTD 710-04482

Hex Head Flange, 3/8-16 x 875

$4.49

$

In Stock, Qty 20+

0

34

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

35

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0421

Wing Nut, 5/16-18 W/ Bell Washer

$6.49

$

In Stock, Qty 20+

0

37

MTD 926-0106

Speed Nut Cap, 1/4 ROD
(Superseded to 726-0106)

$

$

Not available

38

MTD 736-0204

Washer, Flat, 344 x 62 x 033

$3.99

$

In Stock, Qty 20+

0

39

MTD 938-0849

Screw, Hex, 5/16-18 x 75

$9.49

$

Usually ships in 3-6 days

0

40

MTD 747-0432

Tiller Flap Rod

$12.99

$

In Stock, only 1 left!

0

41

MTD 750-0885A

Spacer, 322 x 625 x 200

$10.99

$

Usually ships in 3-6 days

0

42

MTD 786-0090A-0606

Side Shield

$33.99

$

Usually ships in 3-6 days

0

43

MTD 786-0113A-0606

Rear Tine Shield

$78.99

$

Usually ships in 3-6 days

0

44

MTD 786-0176-0606

RH Handle Mount Bracket

$16.99

$

Usually ships in 3-6 days

0

45

MTD 786-0177-0606

LH Handle Mount Bracket

$16.99

$

Usually ships in 3-6 days

0

46

MTD 786-0178A-0606

Tine Shield

$96.99

$

Usually ships in 3-6 days

0

47

MTD 786-0179-0637

FRT Tine Shield Bracket

$45.99

$

Usually ships in 3-6 days

0

48

MTD 786-0180-0637

FRT Tine Shield Spacer Bracket

$44.99

$

Usually ships in 3-6 days

0

49

MTD 710-0506

Hex Head Screw, 1/2-13 x 550

$10.99

$

In Stock, only 2 left!

0

50

MTD 912-3058

Hex Nut, 1/2-20

$5.49

$

In Stock, Qty 20+

0

51

MTD 936-0326

Washer, 1/2 x 125 x 10
(Superseded to 736-0326)

$4.49

$

In Stock, Qty 20+

0

52

MTD 731-1595

Counterweight

$145.99

$

Usually ships in 3-6 days

0

53

MTD 750-0194

Hub, 636 ID x 100 OD x 94

$8.99

$

In Stock, only 4 left!

0

54

MTD 710-0376

Hex Head Screw, 5/16-18 x 100

$3.99

$

In Stock, Qty 17

0

55

MTD 710-0382

Hex Bolt, 1/2-13 x 50

$11.99

$

In Stock, only 2 left!

0

56

MTD 712-04150

Flange Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

57

MTD 723-0381

Counterweight, 40 lbs

Note: (If Equipped)

$

$

Not available
