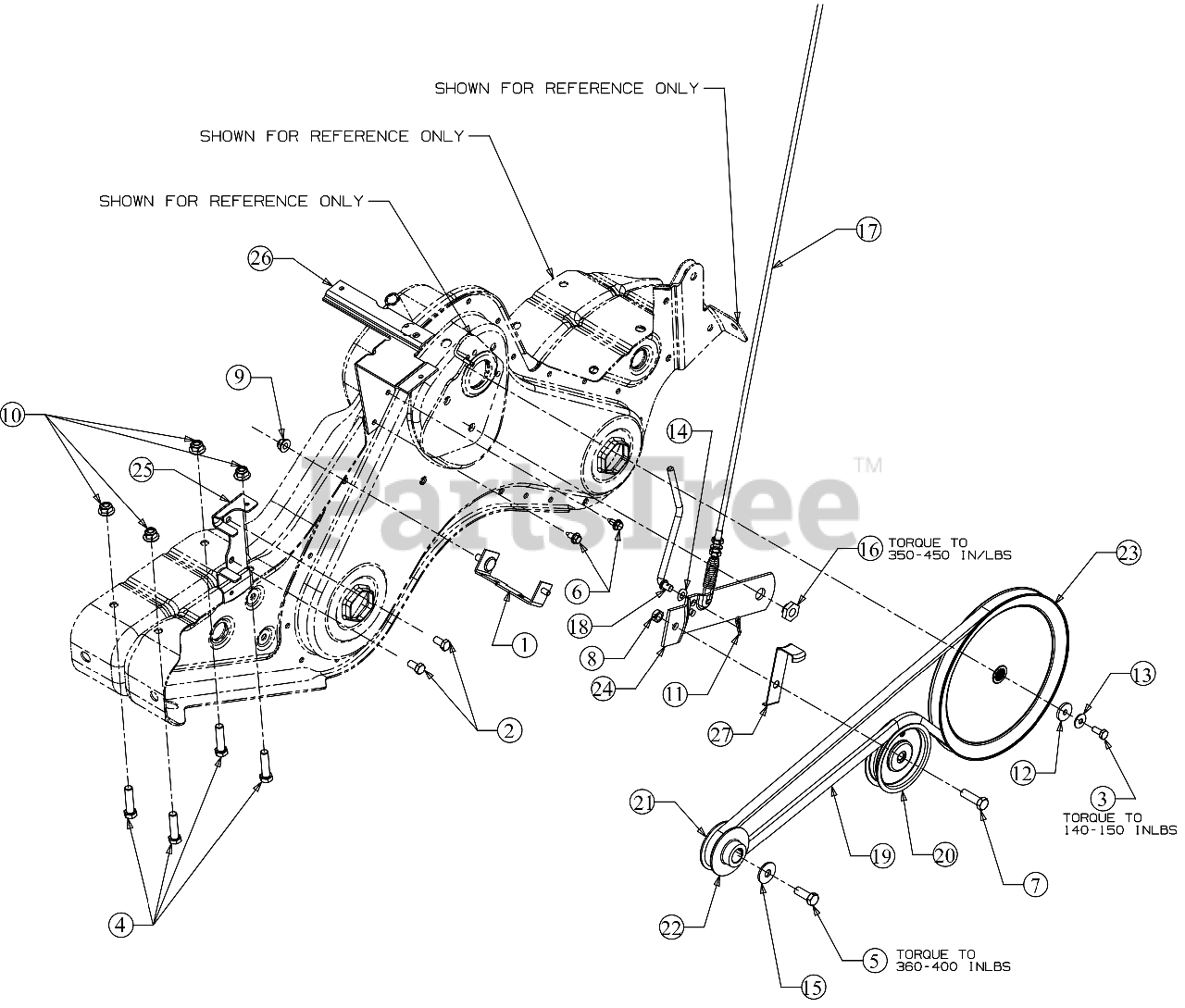

CRT 18 H (21BB455C897) - Columbia 18" Tiller (2018) Drive Assembly Parts Diagram

18" Tiller

Drive Assembly Parts Diagram

  • Title

1

MTD 686-0111-0637

BELT COVER BRACKET ASSEMBLY
(Superseded to 686-0111)

$41.99

$

Usually ships in 3-6 days

0

1

MTD 710-0353

WELD BOLT 5/16-18 X .875

$4.49

$

Usually ships in 3-6 days

0

2

MTD 710-0170

HEX SCREW 5/16-24 X .62

$6.99

$

In Stock, Qty 8

0

3

MTD 710-0513A

BOLT 1/4-28 X .625 GR8

$4.99

$

In Stock, only 2 left!

0

4

MTD 710-0520

SCREW 3/8-16 X 1.50

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-1039

SCREW 3/8-24 X 1.00 GR8

$4.99

$

In Stock, Qty 14

0

6

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3005

SCREW 3/8-16 X 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0266A

JAM LOCK NUT

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

11

MTD 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

12

MTD 936-0176

FLAT WASHER
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0270

SPRING WASHER BELL

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0271

SPRING WASHER .317 X .625 X .020

$4.99

$

In Stock, only 2 left!

0

15

MTD 936-0452

BELL WASHER
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 20+

0

16

MTD 738-0876A

SHOULDER NUT

$11.99

$

In Stock, Qty 8

0

17

MTD 946-1117

CLUTCH CABLE

$71.99

$

In Stock, only 3 left!

0

18

MTD 747-1159

IDLER PULLEY ROD

$27.99

$

Usually ships in 3-6 days

0

19

MTD 954-0434

BELT 1/2 X 58.16

$65.99

$

In Stock, Qty 10

0

20

MTD 756-0405

IDLER PULLEY

$76.99

$

In Stock, only 2 left!

0

21

MTD 756-0971

ENGINE PULLEY INNER HALF

$15.99

$

In Stock, only 2 left!

0

22

MTD 756-0972

ENGINE PULLEY OUTER HALF

$17.99

$

In Stock, only 2 left!

0

23

MTD 756-1162

INPUT PULLEY

$96.99

$

In Stock, only 1 left!

0

24

MTD 786-0064A

IDLER BRACKET

$41.99

$

In Stock, only 1 left!

0

25

MTD 786-0185A-0637

BELT KEEPER BRACKET

$17.99

$

Usually ships in 3-6 days

0

26

MTD 786-0187-0637

SHIFT COVER BRACKET

$24.99

$

Usually ships in 3-6 days

0

27

MTD 786-0193-0637

IDLER BELT KEEPER

$10.99

$

In Stock, only 2 left!

0
