CRT 35 (954001252-B) - Husqvarna Rear-Tine Tiller (1995-03) Mainframe, Left Side Parts Diagram

Rear-Tine Tiller

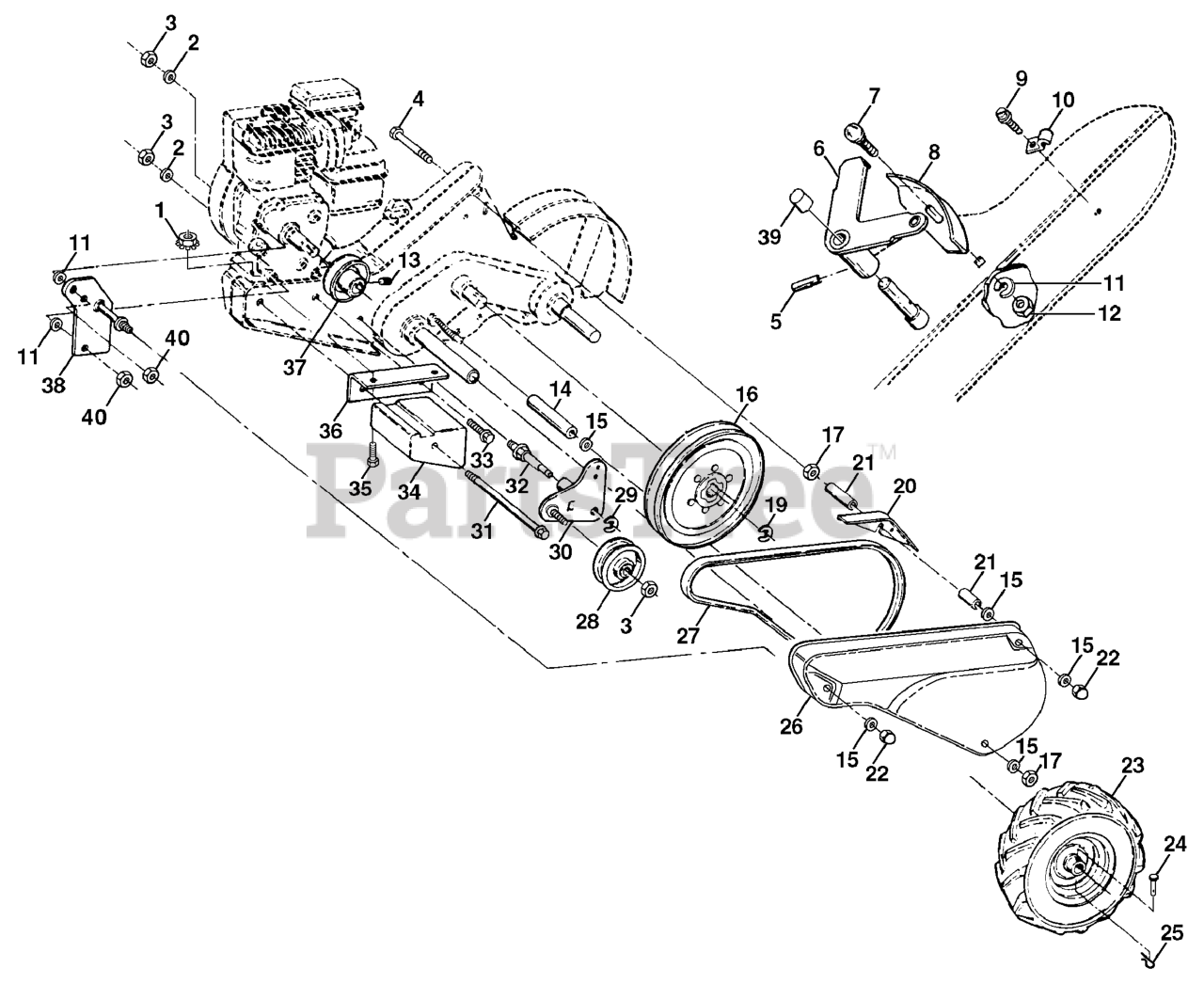

Mainframe, Left Side Parts Diagram

  • Title

1

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

2

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 874930568

Bolt, Hex 5/16-18 x 4-1/4

$

$

Not available

5

Husqvarna 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 532110111

LEVER ASM CRT

$13.99

$

In Stock, only 1 left!

0

7

Husqvarna 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

PANEL.INDICATOR.SHIFT.BLACK

$

$

Not available

9

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532009484

CONDUIT.CLIP.PLATED

$5.99

$

In Stock, only 3 left!

0

11

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 823230506

SET SCREW

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532120938

SPACER

$

$

Not available

15

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 532145102

SHEAVE, TRANSMISSION

$74.99

$

In Stock, only 1 left!

0

17

Husqvarna 873220500

NUT
(Superseded to 596436301)

$3.49

$

In Stock, only 3 left!

0

19

Husqvarna 812000028

RETAINING RING LT

$2.49

$

In Stock, only 2 left!

0

20

Husqvarna 532110653

GUARD CRT

$

$

Not available

21

Husqvarna 532145216

SPACER, SPLIT

$

$

Not available

22

Husqvarna 532104214

NUT TI

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532102190

TIRE.13X5-6.CHEVRON.TILLER

$54.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124258

RIM ASM.6"WHITE.TILLER

$

$

Not available

23

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$6.49

$

In Stock, Qty 20+

0

24

Husqvarna 532126875

RIVET,DRILLED

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532125339

BELT GUARD

$

$

Not available

27

Husqvarna 532132672

V-BELT

$39.99

$

In Stock, only 4 left!

0

28

Husqvarna 532104679

PULLEY-IDLER TI

$20.99

$

In Stock, Qty 5

0

29

Husqvarna 812000032

KLIP RING

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532105611

BRACKET ASSY TI
(Superseded to 532159229)

$

$

Not available

31

Husqvarna 532102384

BOLT.FIN.HEX.3/8-16UNC

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532102141

SHIFT ARM CRT

$

$

Not available

33

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 532102383

COUNTERWEIGHT.LH.CRT

$113.99

$

Usually ships in 3-10 days

0

35

Husqvarna 874760524

BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532102331

BRACKET LH CRT

$8.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532130816

PULLEY.ENGINE.3".OD

$79.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532131558

BELT GUARD BRKT

$

$

Not available

39

Husqvarna 532140062

CAP.PLUNGER.BLACK

$

$

Not available

40

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0
