CRT 35 (954001252-C) - Husqvarna Rear-Tine Tiller (1995-10) Tine Shield Parts Diagram

Rear-Tine Tiller

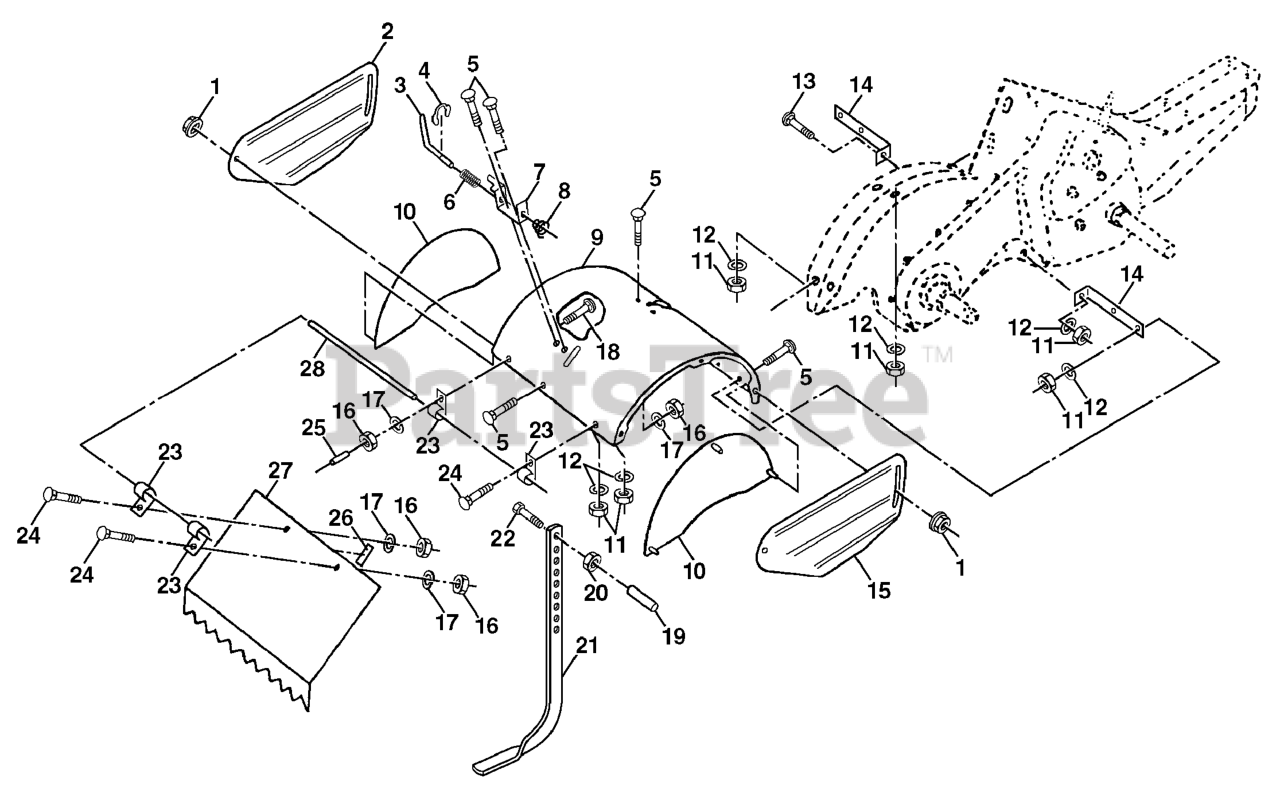

Tine Shield Parts Diagram

  • Title

1

Husqvarna 898000129

NUT
(Superseded to 873800500)

$

$

Not available

2

Husqvarna 532125012

SHIELD SIDE OUTER LH
(Superseded to 532440452)

$

$

Not available

3

Husqvarna 532008393

STAKE PIN TI

$28.99

$

In Stock, only 2 left!

0

4

Husqvarna 812000036

KLIP RING TI

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532008394

SPRING TI

$13.99

$

In Stock, only 4 left!

0

7

Husqvarna 532008392

BRACKET.LATCH.STAKE.3.20.BLACK

$

$

Not available

8

Husqvarna 532109230

SPRING CRT

$5.99

$

In Stock, Qty 13

0

9

Husqvarna 532138863

SHIELD.TILLER.TINE.ORANGE
(Superseded to 532446449)

$125.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532125013

SHIELD SIDE
(Superseded to 585414301)

$

$

Not available

11

Husqvarna 873220500

NUT
(Superseded to 596436301)

$3.49

$

In Stock, only 3 left!

0

12

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$5.99

$

In Stock, only 3 left!

0

14

Husqvarna 532124343

BRACKET.TINE.SHIELD.TILLER
(Superseded to 584459301)

$39.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532125015

SHIELD SIDE OUTER RH
(Superseded to 532195795)

$

$

Not available

16

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872040410

BOLT

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532102701

GRIP CRT

$

$

Not available

20

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

21

Husqvarna 532144437

STAKE.DEPTH.16.CRT.BLACK
(Superseded to 532102156)

$31.99

$

In Stock, only 3 left!

0

22

Husqvarna 874930632

BOLT.375-16

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532004440

HINGE CRT

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 872140404

BOLT
(Superseded to 596133401)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532124717

VINYL CAP TI
(Superseded to 532006712)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532125451

SHIELD.PNT.LEVEL.CRT.14.MS-668
(Superseded to 532446452)

$51.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532120588

PIN.HINGE.TILLER

$11.99

$

Usually ships in 3-10 days

0
