CRT 50 (954000031-A) - Husqvarna Rear-Tine Tiller (1990-01) Handle Assembly Parts Diagram

Rear-Tine Tiller

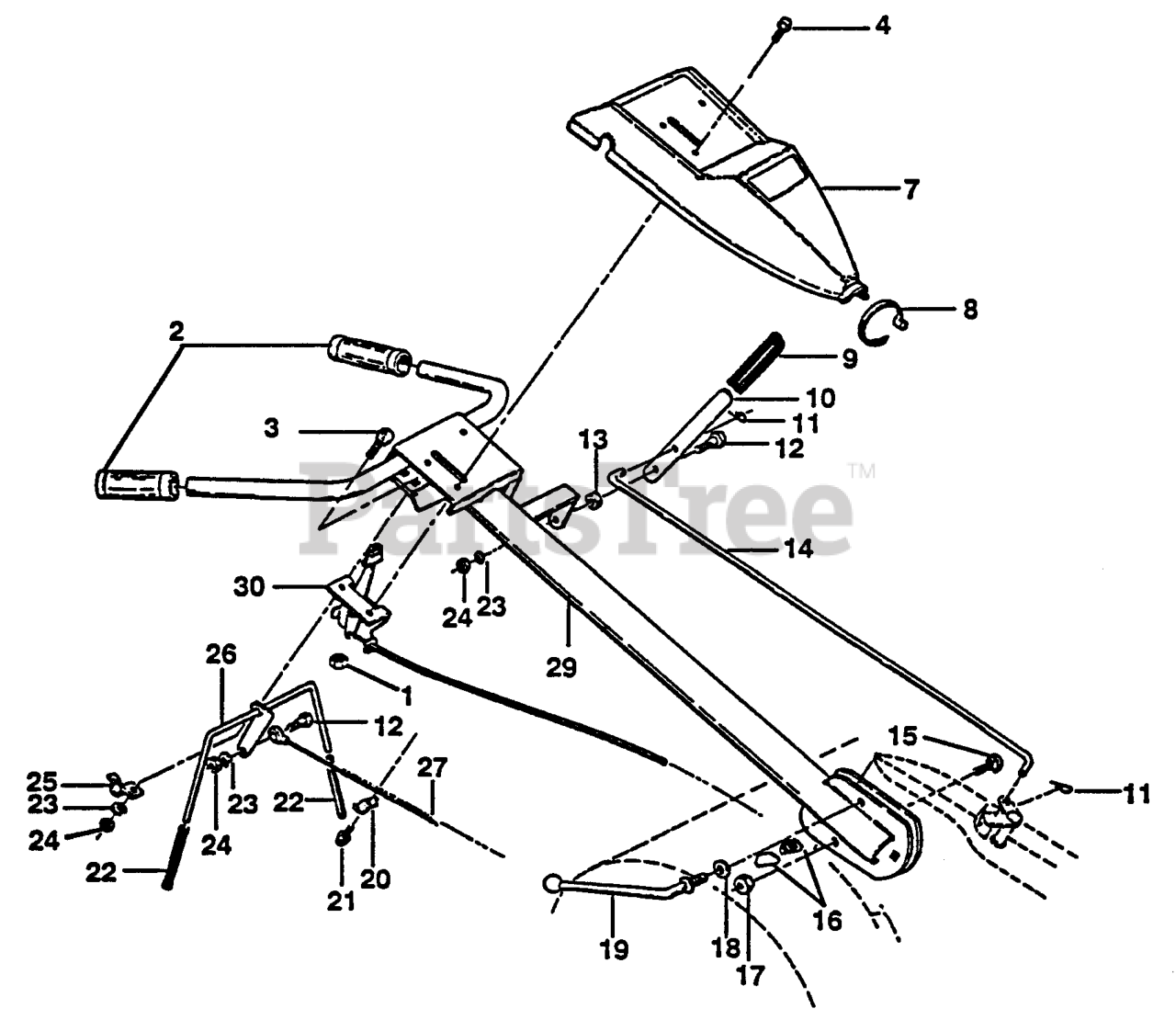

Handle Assembly Parts Diagram

  • Title

1

Husqvarna 873731000

NUT **
(Superseded to 873271000)

$

$

Not available

2

Husqvarna 532009266

KIT.GRIP.HANDLE.5.00.BLK.VINYL

$

$

Not available

3

Husqvarna 872140404

BOLT
(Superseded to 596133401)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 871091008

SCREW
(Superseded to 871191008)

$

$

Not available

7

Husqvarna 532126956

PANEL

$

$

Not available

8

Husqvarna 532104164

TIE CABLE CRT

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532124797

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532109335

SHIFT HANDLE CRT

$

$

Not available

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 17

0

12

Husqvarna 532081328

SHOULDER BOLT ST

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 532109313

GROMMET.RUBBER.CRT.TILLER

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532109337

SHIFT ROD CRT

$51.99

$

Usually ships in 3-10 days

0

15

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 532109229

LOCK.HANDLE.CRT

$6.99

$

In Stock, Qty 8

0

17

Husqvarna 532005394

LOCKNUT
(Superseded to 873930600)

$

$

Not available

18

Husqvarna 819131611

WASHER CRT
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 532109228

LEVER.LOCK.CRT

$31.99

$

In Stock, only 4 left!

0

20

Husqvarna 532009484

CONDUIT.CLIP.PLATED

$5.99

$

In Stock, only 3 left!

0

21

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532102604

GRIP BAR CRT(1)

$

$

Not available

23

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532102744

CLAMP.BAR.CRT.BLACK

$

$

Not available

26

Husqvarna 532105216

BAR ASSY CONTROL

$

$

Not available

27

Husqvarna 532102162

CABLE CLUTCH CRT

$

$

Not available

29

Husqvarna 532125011

HANDLE
(Superseded to 532440884)

$

$

Not available

30

Husqvarna 532127012

CONT,THROTTLE
(Superseded to 532175769)

$37.99

$

In Stock, only 1 left!

0

Husqvarna 532127605

OPER MANUAL CRT50 HRNLA

$

$

Not available

Husqvarna 532127606

MANUAL

$

$

Not available

Husqvarna 532127607

IPL MODEL CRT50
(Superseded to 532136474)

$

$

Not available

Husqvarna 532127608

MANUAL NLA

$

$

Not available

Husqvarna 532126951

PANEL

$

$

Not available

Husqvarna 532124624

Decal, Control Panel

$

$

Currently unavailable

Husqvarna 532110614

DECAL TI (2 2)

$3.99

$

Usually ships in 3-10 days

0
