CRT 50 (954000031-C) - Husqvarna Rear-Tine Tiller (1992-01) Transmission Parts Diagram

Rear-Tine Tiller

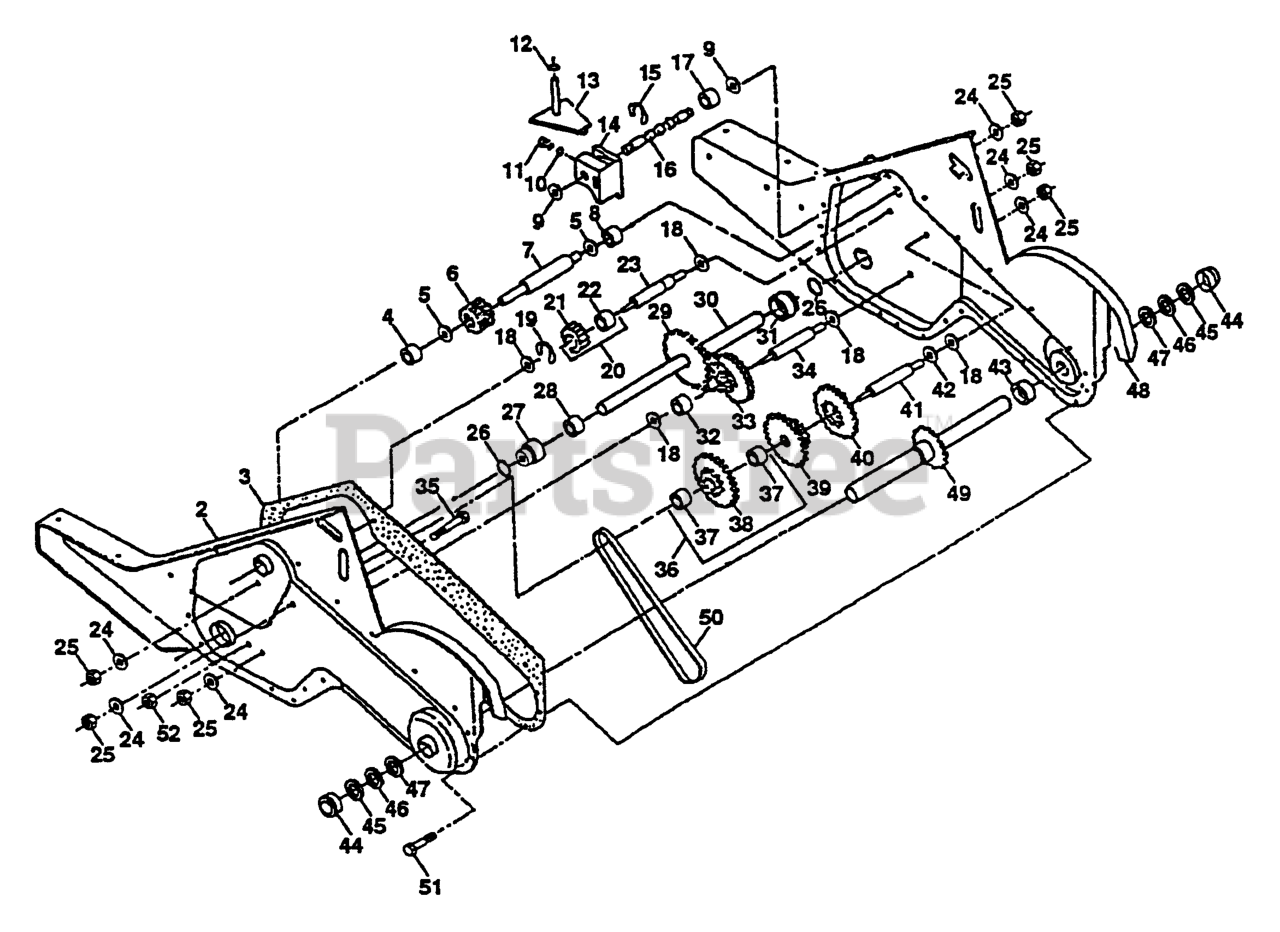

Transmission Parts Diagram

  • Title

1

Husqvarna 532132718

TRANSMISSION ASSEMBLY
(Superseded to 532181098)

Note: (Includes Key Nos. 2-52)

$

$

Not available

2

Husqvarna 532121147

GEARCASE
(Superseded to 532181098)

Note: (Includes case 4)

$

$

Not available

3

Husqvarna 532106211

GASKET TI
(Superseded to 532431022)

$21.99

$

In Stock, Qty 15

0

4

Husqvarna 532005020

NEEDLE BRNG LT

$17.99

$

In Stock, Qty 20+

0

5

Husqvarna 532001370

THRUST WASHER

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 532102113

PINION-INPUT CRT

$

$

Not available

7

Husqvarna 532102110

SHAFT-INPUT CRT

$

$

Not available

8

Husqvarna 532124792

BEARING TI
(Superseded to 532004895)

$13.99

$

In Stock, Qty 20+

0

9

Husqvarna 532102136

WASHER SEAL CRT

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 532124697

STEEL BALL KIT
(Superseded to 532100482)

$5.99

$

In Stock, Qty 12

0

11

Husqvarna 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, Qty 8

0

12

Husqvarna 532106160

O-RING TI

$4.99

$

In Stock, Qty 14

0

13

Husqvarna 532102107

ARM ASSY CRT

$

$

Not available

14

Husqvarna 532008353

SHIFT FORK TI

$29.99

$

In Stock, Qty 7

0

15

Husqvarna 812000039

KLIP RING

$

$

Not available

16

Husqvarna 532102109

SHAFT SHIFT CRT

$

$

Not available

17

Husqvarna 532104159

SPACER SPLIT CRT

$

$

Not available

18

Husqvarna 532004358

WASHER

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 812000040

KLIP RING

$5.99

$

In Stock, Qty 10

0

20

Husqvarna 532102114

GEAR ASSY CRT

Note: (Includes Key Nos. 21 and 22)

$

$

Not available

21

Husqvarna 532102115

GEAR-REV IDLR CRT

$29.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532006803

NEEDLE BEARING TI

$11.99

$

In Stock, Qty 16

0

23

Husqvarna 532102111

SHAFT CRT

$23.99

$

In Stock, only 1 left!

0

24

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

25

Husqvarna 873610700

NUT.ASF.HEX.7/16

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 532102128

O-RING.CRT.TILLER

$

$

Not available

27

Husqvarna 532102100

BEARING CRT

$

$

Not available

28

Husqvarna 532106390

SPACER

$5.99

$

In Stock, Qty 7

0

29

Husqvarna 532102134

CHAIN CRT

$11.99

$

In Stock, only 3 left!

0

30

Husqvarna 532109204

SHAFT ASSY CRT
(Superseded to 532150737)

$

$

Not available

31

Husqvarna 532102106

BEARING CRT
(Superseded to 532143008)

$

$

Not available

32

Husqvarna 532106388

SPACER TI

$6.99

$

In Stock, only 1 left!

0

33

Husqvarna 532102121

SPRCKT 8 GEAR CRT

$

$

Not available

34

Husqvarna 532102112

SHAFT.SECONDARY.REDUCTION.CRT

$41.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532102101

SCRW WHIZ LOK CRT

$

$

Not available

36

Husqvarna 532106141

SPROCKET TI
(Superseded to 532137300)

Note: (Includes Key Nos. 37 and 38)

$

$

Not available

37

Husqvarna 532124791

BEARING
(Superseded to 585695502)

$7.49

$

In Stock, Qty 20+

0

38

Husqvarna 532106142

SPROCKET TI
(Superseded to 532137300)

$

$

Not available

39

Husqvarna 532105345

GEAR TI

$

$

Not available

40

Husqvarna 532105346

GEAR TI

$51.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532008358

SHAFT.REDUCTION.TILLER

$

$

Not available

42

Husqvarna 532004220

BRNG RACE T

$

$

Not available

43

Husqvarna 532106146

SPACER TI

$

$

Not available

44

Husqvarna 532009672

CUP
(Superseded to 532155236)

$7.49

$

In Stock, Qty 20+

0

45

Husqvarna 532102144

RING.SPIRAL.CRT.TILLER

$

$

Not available

46

Husqvarna 532009676

SEAL
(Superseded to 532155236)

$7.49

$

In Stock, Qty 20+

0

47

Husqvarna 532009674

OIL SEAL
(Superseded to 532155236)

$7.49

$

In Stock, Qty 20+

0

48

Husqvarna 532121745

GEARCASE
(Superseded to 532150700)

Note: (Includes Key No. 8)

$

$

Not available

49

Husqvarna 532132688

TINE SHAFT
(Superseded to 532432058)

$

$

Not available

50

Husqvarna 532106147

CHAIN.TILLER

$41.99

$

In Stock, only 3 left!

0

51

Husqvarna 817580408

SCREW CRT
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

52

Husqvarna 873220500

NUT
(Superseded to 596436301)

$3.99

$

In Stock, only 3 left!

0

Husqvarna 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

$

$

Not available
