CRT 51 (960910002-03) - Husqvarna Rear-Tine Tiller (2007-02) TRANSMISSION Parts Diagram

Rear-Tine Tiller

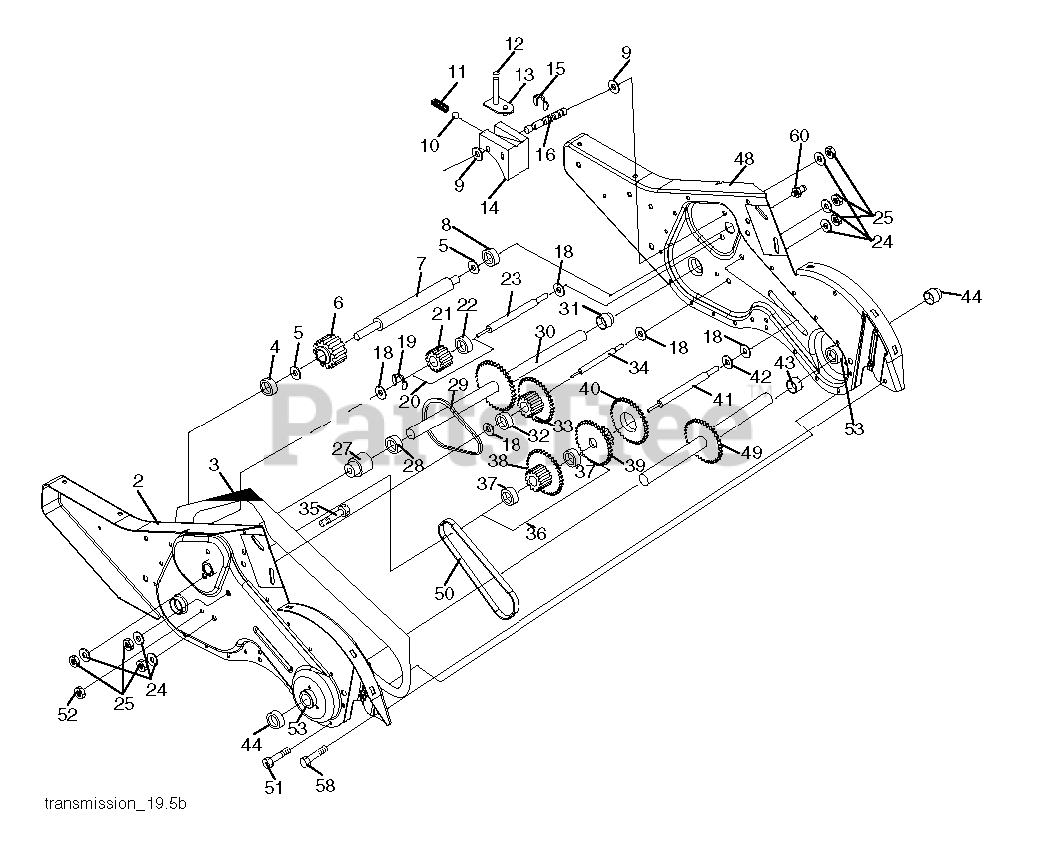

TRANSMISSION Parts Diagram

  • Title

43

Husqvarna 532106146

SPACER TI

$

$

Not available

14

Husqvarna 532008353

SHIFT FORK TI

$29.99

$

In Stock, Qty 7

0

52

Husqvarna 873220500

NUT
(Superseded to 596436301)

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 532106147

CHAIN.TILLER

$41.99

$

In Stock, only 3 left!

0

39

Husqvarna 532105345

GEAR TI

$

$

Not available

30

Husqvarna 532150737

GROUND SHAFT ASS'Y

$

$

Not available

20

Husqvarna 532102114

GEAR ASSY CRT

$

$

Not available

60

Husqvarna 532183226

FITTING.GREASE.TAPERED

$5.99

$

In Stock, Qty 10

0

2

Husqvarna 532188482

GEARCASE.ASM.CRT.LH.W/BEARING
(Superseded to 532181098)

$

$

Not available

15

Husqvarna 812000039

KLIP RING

$

$

Not available

10

Husqvarna 532124697

STEEL BALL KIT
(Superseded to 532100482)

$5.99

$

In Stock, Qty 12

0

48

Husqvarna 532188485

GEARCASE.ASM.CRT.RH.W/BEARING
(Superseded to 532181098)

$

$

Not available

35

Husqvarna 532102101

SCRW WHIZ LOK CRT

$

$

Not available

-

Husqvarna 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

$

$

Not available

4

Husqvarna 532005020

NEEDLE BRNG LT

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532102121

SPRCKT 8 GEAR CRT

$

$

Not available

23

Husqvarna 532102111

SHAFT CRT

$23.99

$

In Stock, only 1 left!

0

58

Husqvarna 532179520

BOLT SHOULDER 1/4-20 UNC X.875

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532154355

SPROCKET.ASM.W/BEARING.TILLER

$

$

Not available

19

Husqvarna 812000040

KLIP RING

$5.99

$

In Stock, Qty 10

0

24

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 532124792

BEARING TI
(Superseded to 532004895)

$13.99

$

In Stock, Qty 20+

0

44

Husqvarna 532155236

SEAL ASM, OIL

$7.49

$

In Stock, Qty 20+

0

12

Husqvarna 532106160

O-RING TI

$4.99

$

In Stock, Qty 14

0

29

Husqvarna 532102134

CHAIN CRT

$11.99

$

In Stock, only 3 left!

0

42

Husqvarna 532004220

BRNG RACE T

$

$

Not available

1

Husqvarna 532188554

TRANSMISSION ASM.
(Superseded to 532181098)

$

$

Not available

28

Husqvarna 532106390

SPACER

$5.99

$

In Stock, Qty 7

0

25

Husqvarna 873610700

NUT.ASF.HEX.7/16

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 532124791

BEARING
(Superseded to 585695502)

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 532006803

NEEDLE BEARING TI

$11.99

$

In Stock, Qty 16

0

11

Husqvarna 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, Qty 8

0

49

Husqvarna 532132688

TINE SHAFT
(Superseded to 532432058)

$

$

Not available

31

Husqvarna 532143008

BEARING, SHAFT RH CRT

$

$

Not available

5

Husqvarna 532001370

THRUST WASHER

$5.99

$

In Stock, Qty 20+

0

3

Husqvarna 532161963

GASKET
(Superseded to 532431022)

$21.99

$

In Stock, Qty 15

0

7

Husqvarna 532145101

SHAFT.INPUT."D".TILLER

$

$

Not available

18

Husqvarna 532004358

WASHER

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532106388

SPACER TI

$6.99

$

In Stock, only 1 left!

0

40

Husqvarna 532105346

GEAR TI

$51.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532142145

BRACKET ASM.SHIFT.CRT

$

$

Not available

51

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

6

Husqvarna 532137335

GEAR.PINION.INPUT
(Superseded to 586196301)

$26.99

$

In Stock, Qty 6

0

41

Husqvarna 532008358

SHAFT.REDUCTION.TILLER

$

$

Not available

38

Husqvarna 532154356

SPROCKET, TINE
(Superseded to 532154355)

$

$

Not available

16

Husqvarna 532154466

SHAFT.SHIFTER.TILLER

$

$

Not available

21

Husqvarna 532102115

GEAR-REV IDLR CRT

$29.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532154467

WASHER, SEAL (2 2)

$3.99

$

In Stock, Qty 15

0

34

Husqvarna 532102112

SHAFT.SECONDARY.REDUCTION.CRT

$41.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532165140

KIT.BEARING.TILLER.

$

$

Not available

27

Husqvarna 532143009

BEARING, SHAFT LH CRT
(Superseded to 532431219)

$

$

Not available
