CRT 52 (954140067-B) - Husqvarna Rear-Tine Tiller (1998-07) Tine Shield Parts Diagram

Rear-Tine Tiller

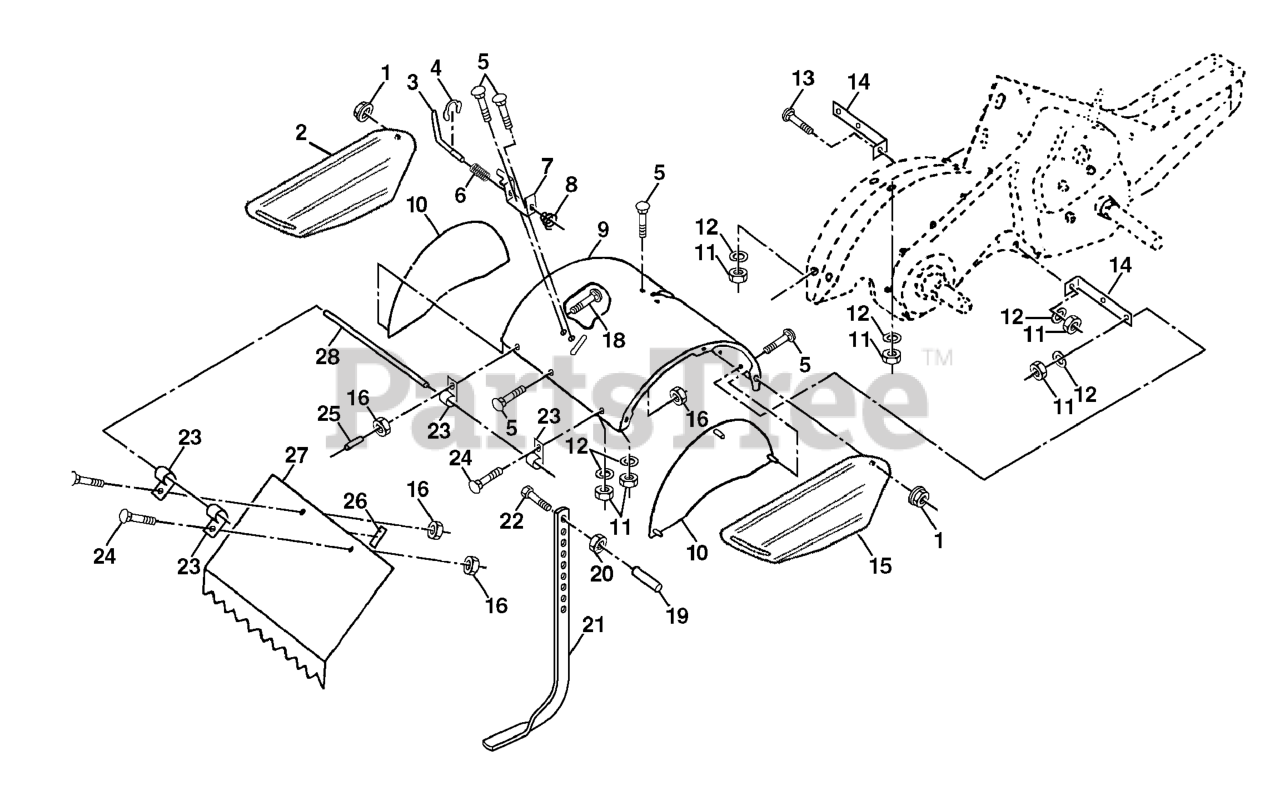

Tine Shield Parts Diagram

  • Title

1

Husqvarna 898000129

NUT
(Superseded to 873800500)

$

$

Not available

2

Husqvarna 532162952

SHIELD
(Superseded to 532440452)

$

$

Not available

3

Husqvarna 532008393

STAKE PIN TI

$23.99

$

In Stock, only 1 left!

0

4

Husqvarna 812000036

KLIP RING TI

$

$

Not available

5

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

In Stock, Qty 11

0

6

Husqvarna 532008394

SPRING TI

$14.99

$

In Stock, only 1 left!

0

7

Husqvarna 532008392

BRACKET.LATCH.STAKE.3.20.BLACK

$

$

Not available

8

Husqvarna 532109230

SPRING CRT

$5.99

$

In Stock, Qty 7

0

9

Husqvarna 532125014

SHIELD.TINE.CRT.ORANGE
(Superseded to 532442662)

$

$

Not available

10

Husqvarna 532125013

SHIELD SIDE
(Superseded to 585414301)

$

$

Not available

11

Husqvarna 873220500

NUT
(Superseded to 596436301)

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$5.99

$

In Stock, only 2 left!

0

14

Husqvarna 532124343

BRACKET.TINE.SHIELD.TILLER
(Superseded to 584459301)

$41.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532162953

SIDE SHIELD RH
(Superseded to 532440450)

$

$

Not available

16

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 872040410

BOLT

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532102701

GRIP CRT

$

$

Not available

20

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

21

Husqvarna 532102156

STAKE.DEPTH.16.CRT.BLACK

$33.99

$

Usually ships in 3-10 days

0

22

Husqvarna 874930632

BOLT.375-16

$7.49

$

In Stock, only 1 left!

0

23

Husqvarna 532004440

HINGE CRT

$

$

Not available

24

Husqvarna 872140404

BOLT
(Superseded to 596133401)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124717

VINYL CAP TI
(Superseded to 532006712)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532125016

SHIELD LEVELING
(Superseded to 532440448)

$53.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532120588

PIN.HINGE.TILLER

$9.99

$

Usually ships in 3-10 days

0
