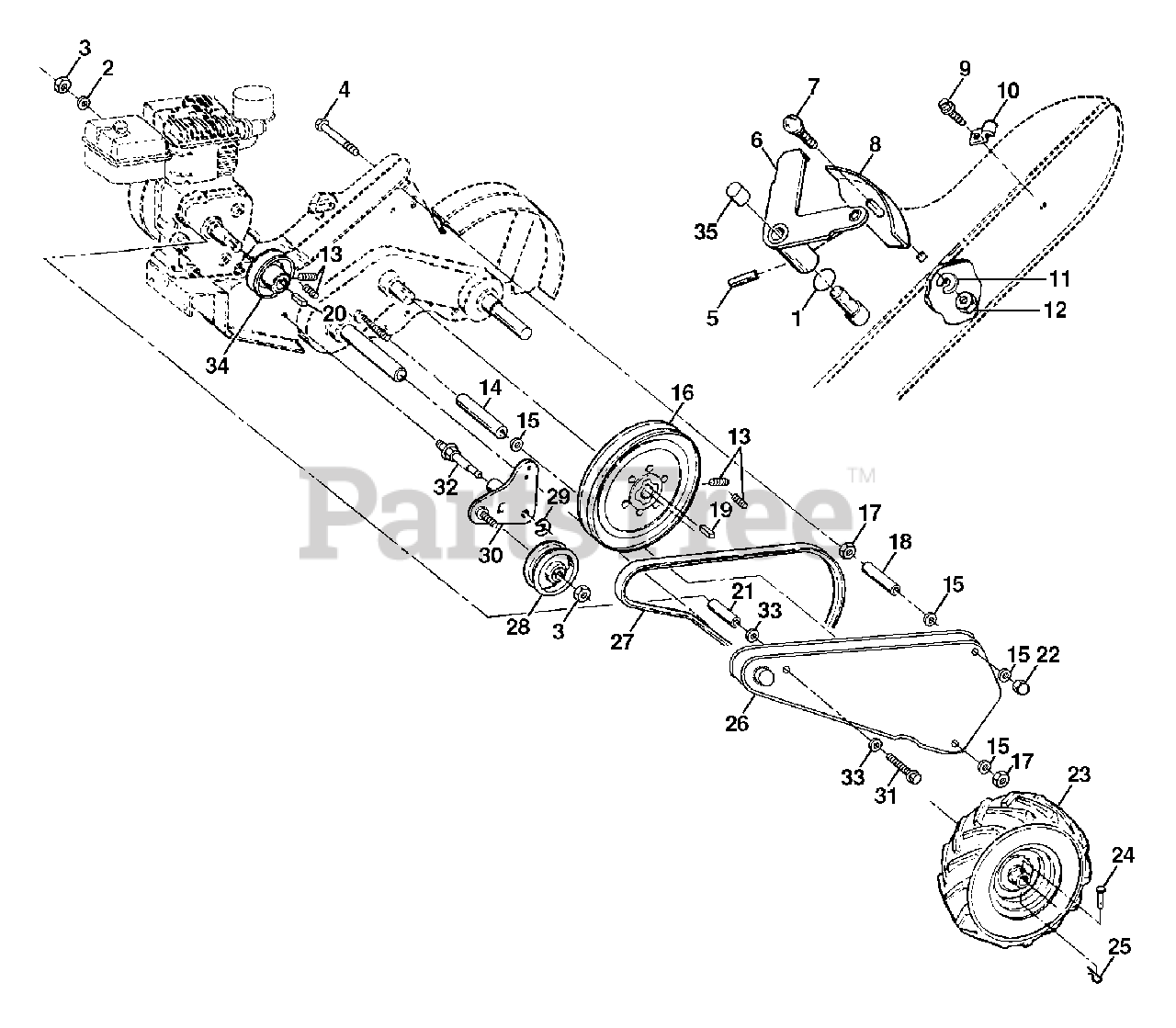

CRT 81 (954001152-A) - Husqvarna Rear-Tine Tiller (1994-07) Mainframe, Left Side Parts Diagram

Rear-Tine Tiller

Mainframe, Left Side Parts Diagram

  • Title

1

Husqvarna 532106160

O-Ring

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 874930572

Bolt, Hex Head 5/16-18 x 4-1/2

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124963

Pin, Roll
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532110111

Lever, Shift

$18.99

$

In Stock, only 1 left!

0

7

Husqvarna 872110404

Bolt, Carriage 1/4-20 x 1/2 Grade 5

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

Plate, Shift Indicator

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 532086777

Screw, Hex Washer Head, Slotted #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532009484

Clip

$6.49

$

In Stock, only 4 left!

0

11

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 823230506

Screw, Set, Hex 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532008382

Spacer, Split

$

$

Not available

15

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Gauge
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532100473

Sheave, Transmission

$

$

Not available

17

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532008381

Spacer

$2.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532002649

Key, Square 3/16 x 1-1/8

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 532004914

Key, Square

$2.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532139155

Spacer, Split .523 x .718 x 2

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532104214

Nut, Cap 5/16-18

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532005015

Tire

$145.99

$

In Stock, only 2 left!

0

23

Husqvarna 532138417

Rim

$94.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124718

Tire Valve
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

24

Husqvarna 532004929

Rivet, Drilled

$7.49

$

In Stock, only 2 left!

0

25

Husqvarna 532124961

Clip, Hairpin
(Superseded to 532004921)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 532145518

Guard, Belt
(Superseded to 583641801)

$

$

Not available

27

Husqvarna 532138399

V-Belt

$60.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532104680

Pulley, Idler
(Superseded to 532004371)

$

$

Not available

29

Husqvarna 812000032

Ring, Klip

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532105611

Bracket, Idler
(Superseded to 584289401)

$

$

Not available

31

Husqvarna 874770844

Bolt, Hex Head 1/2-20 x 2-3/4

$2.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532139401

Shaft, Idler Arm

$7.49

$

In Stock, only 4 left!

0

33

Husqvarna 819171616

Washer
(Superseded to 734117801)

$

$

Not available

34

Husqvarna 532004368

Sheave, Engine

$14.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532140062

Cap, Plunger

$6.49

$

In Stock, only 1 left!

0
