CRT 81 (954001152-B) - Husqvarna Rear-Tine Tiller (1995-12) Transmission Parts Diagram

Rear-Tine Tiller

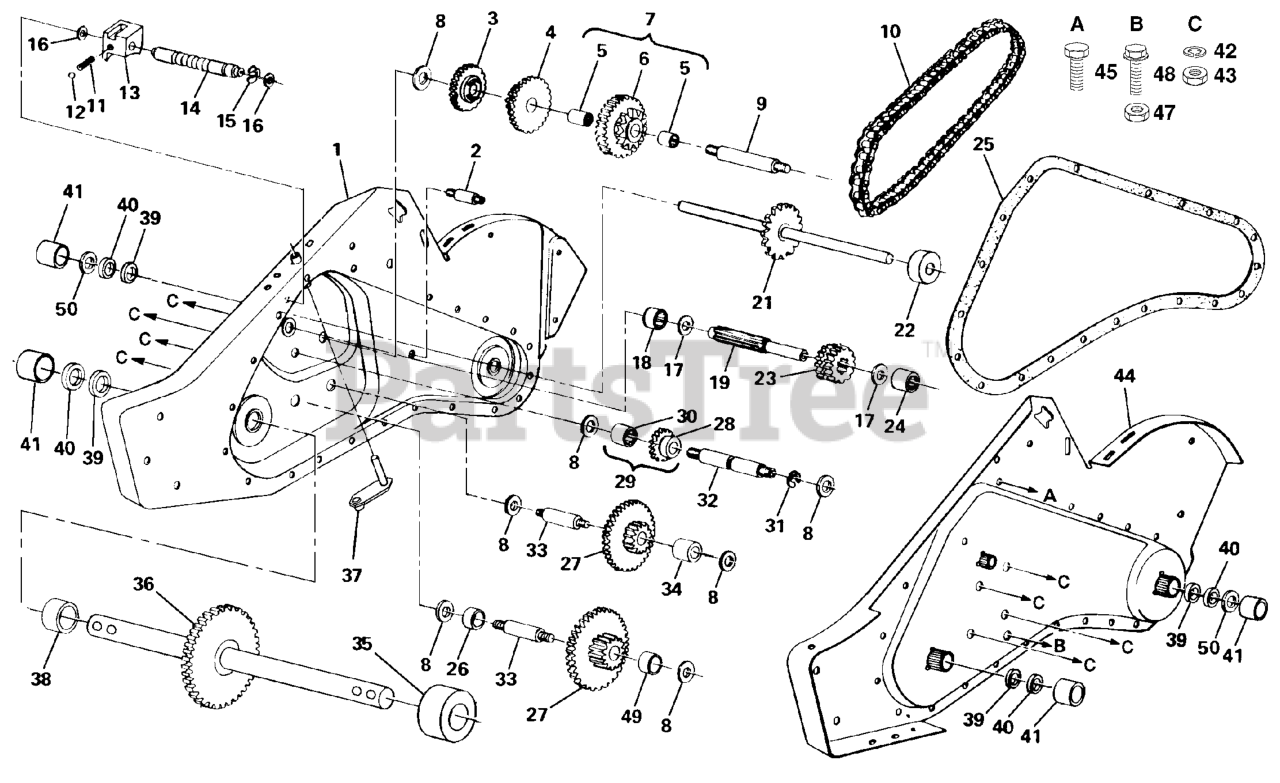

Transmission Parts Diagram

  • Title

Husqvarna 532150674

TRANSMISSION ASS'Y
(Superseded to 532183655)

$1082.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532150430

GEARCASE ASSY RH
(Superseded to 532162170)

Note: (Includes Key No. 18)

$

$

Not available

2

Husqvarna 532008370

BOLT

$

$

Not available

3

Husqvarna 532008547

GEAR, REVERSE
(Superseded to 532414031)

$

$

Not available

4

Husqvarna 532008546

GEAR, CLUSTER (2 GEAR SET)
(Superseded to 532414031)

$

$

Not available

5

Husqvarna 532100413

BEARING.NEEDLE.CRT
(Superseded to 585695501)

$22.99

$

In Stock, only 1 left!

0

6

Husqvarna 532144564

SPROCKET ASMBLY, TINE

$

$

Not available

7

Husqvarna 532144563

SPROCKET ASMBLY W/BEARINGS
(Superseded to 532144564)

Note: (Includes Key #6 & two of Key #5)

$

$

Not available

8

Husqvarna 532004358

WASHER

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532008358

SHAFT.REDUCTION.TILLER

$

$

Not available

10

Husqvarna 532008371

CHAIN.ROLLER.TILLER

$68.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532100371

SPRING-SHIFT CRT

$6.99

$

In Stock, Qty 9

0

12

Husqvarna 532124697

STEEL BALL KIT
(Superseded to 532100482)

$5.99

$

In Stock, Qty 14

0

13

Husqvarna 532008353

SHIFT FORK TI

$28.99

$

In Stock, Qty 9

0

14

Husqvarna 532008354

SHAFT, SHIFT

$

$

Not available

15

Husqvarna 812000039

KLIP RING

$

$

Not available

16

Husqvarna 532102136X

Washer, Seal

$

$

Currently unavailable

17

Husqvarna 532001370

THRUST WASHER

$5.99

$

In Stock, Qty 20+

0

18

Husqvarna 532124792

BEARING TI
(Superseded to 532004895)

$13.99

$

In Stock, Qty 20+

0

19

Husqvarna 532150695

SHAFT INPUT

$45.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532105378

SHAFT TINE CRT
(Superseded to 532432060)

$

$

Not available

22

Husqvarna 532106181

SPACER 1.008X1-3/4X.645

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532008359

PINION, INPUT

$

$

Not available

24

Husqvarna 532005020

NEEDLE BRNG LT

$20.99

$

In Stock, Qty 20+

0

25

Husqvarna 532008372

GASKET, GEARCASE

$

$

Not available

26

Husqvarna 532106389

SPACER

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532100433

GEAR, CLUSTER CRT

$62.99

$

In Stock, only 1 left!

0

28

Husqvarna 532008357

REVERSE GEAR

$

$

Not available

29

Husqvarna 532144562

GEAR ASMBLY, REVERSE IDLER

Note: (Includes Key Numbers 28 and 30)

$56.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532006803

NEEDLE BEARING TI

$11.99

$

In Stock, Qty 17

0

31

Husqvarna 812000040

KLIP RING

$5.99

$

In Stock, Qty 11

0

32

Husqvarna 532008356

SHAFT, REVERSE IDLER

$

$

Not available

33

Husqvarna 532100016

SHAFT, REDUCTION

$51.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532106392

SPACER.765 X 1.12 X .380.

$

$

Not available

35

Husqvarna 532106394

SPACER, GROUND DRIVE RH

$28.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532100436

SHAFT ASSY CRT

$148.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532142145

BRACKET ASM.SHIFT.CRT

$

$

Not available

38

Husqvarna 532106393

SPACER, GROUND DRIVE

$34.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532124698

OIL SEAL STD
(Superseded to 532007393)

$3.49

$

In Stock, only 1 left!

0

40

Husqvarna 532140576

SEAL

$

$

Not available

41

Husqvarna 532009672

CUP
(Superseded to 532155236)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

43

Husqvarna 873610700

NUT.ASF.HEX.7/16

$6.99

$

In Stock, Qty 20+

0

44

Husqvarna 532150417

GEARCASE ASSY LH
(Superseded to 532162170)

Note: (Includes Key Number 24)

$

$

Not available

45

Husqvarna 817720510

SCREW
(Superseded to 594094101)

$2.49

$

Usually ships in 3-10 days

0

47

Husqvarna 873220500

NUT
(Superseded to 596436301)

$3.49

$

In Stock, only 3 left!

0

48

Husqvarna 532100107

SCREW 5/16-18X4

$

$

Not available

49

Husqvarna 532106391

SPACER

$13.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532102144

RING.SPIRAL.CRT.TILLER

$

$

Not available

Husqvarna 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

$

$

Not available
