CRT 81 (954328434-E) - Husqvarna Rear-Tine Tiller (2001-01) MAINFRAME, LEFT SIDE Parts Diagram

Rear-Tine Tiller

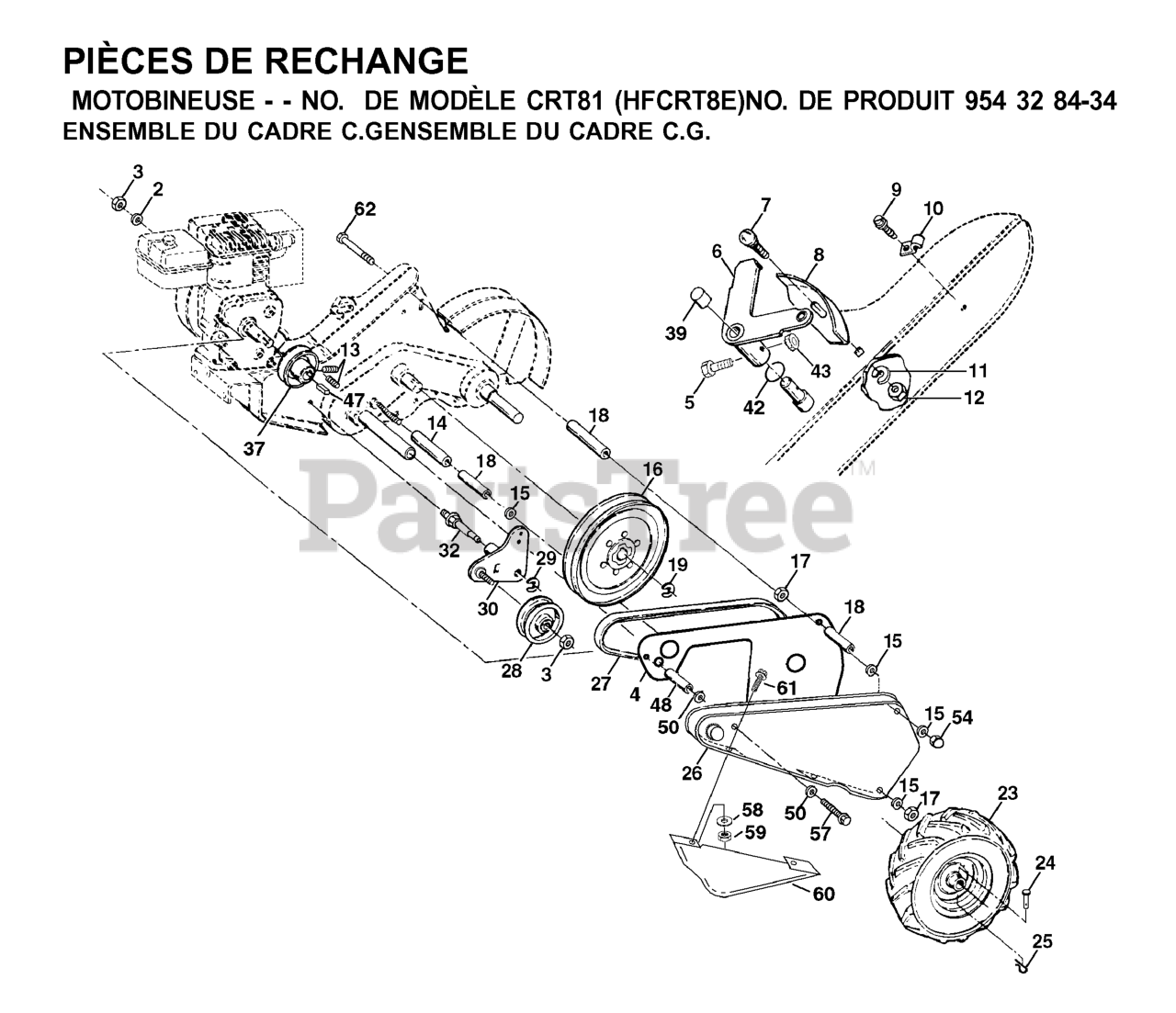

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

48

Husqvarna 532157486

SPACER

$2.99

$

Usually ships in 3-10 days

0

50

Husqvarna 819171616

WASHER
(Superseded to 734117801)

$

$

Not available

39

Husqvarna 532140062

CAP.PLUNGER.BLACK

$6.49

$

In Stock, only 1 left!

0

27

Husqvarna 532138399

BELT, DRIVE

$60.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532131691

SPACER SPLIT

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532145102

SHEAVE, TRANSMISSION

$66.99

$

In Stock, only 3 left!

0

62

Husqvarna 874930572

BOLT 5/16-18X4 1/2

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532140810

WASHER, .196 X .625 X 16 GA

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532154734

SCREW, SHIFT LEVER

$

$

Not available

8

Husqvarna 532008700

PANEL.INDICATOR.SHIFT.BLACK

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 532004368

SHEAVE, ENGINE

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532110111

LEVER ASM CRT

$18.99

$

In Stock, only 1 left!

0

28

Husqvarna 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 4 left!

0

2

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532163970

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 532159229

BRACKET.ASM.IDLER.BLACK
(Superseded to 584289401)

$

$

Not available

13

Husqvarna 823230506

SET SCREW

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532156872

SHIELD

$

$

Not available

12

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

60

Husqvarna 532161121

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 16

0

14

Husqvarna 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 874770844

Bolt, Hex Head 1/2-20 x 2-3/4

$2.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532004914

KEY, SQUARE

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 872110404

BOLT

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532004929

RIVET TI

$7.49

$

In Stock, only 2 left!

0

17

Husqvarna 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532069180

LOCKNUT

$6.49

$

In Stock, only 2 left!

0

42

Husqvarna 532106160

O-RING TI

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 873731000

NUT **
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532104214

NUT TI

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532009484

CONDUIT.CLIP.PLATED

$6.49

$

In Stock, only 4 left!

0

532124366

Husqvarna 532124366

RIM
(Superseded to 532128952)

$109.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532005015

TIRE.16X4-8.CHEVRON.TILLER

$145.99

$

In Stock, only 2 left!

0

32

Husqvarna 532139401

SHAFT, IDLER ARM

$7.49

$

In Stock, only 4 left!

0

3

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 3 left!

0

61

Husqvarna 871191008

SCREW.PNHD.10-24

$6.49

$

Usually ships in 3-10 days

0

532124718

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0
