CRT 81 (960910003-00) - Husqvarna Rear-Tine Tiller (2005-01) MAINFRAME, LEFT SIDE Parts Diagram

Rear-Tine Tiller

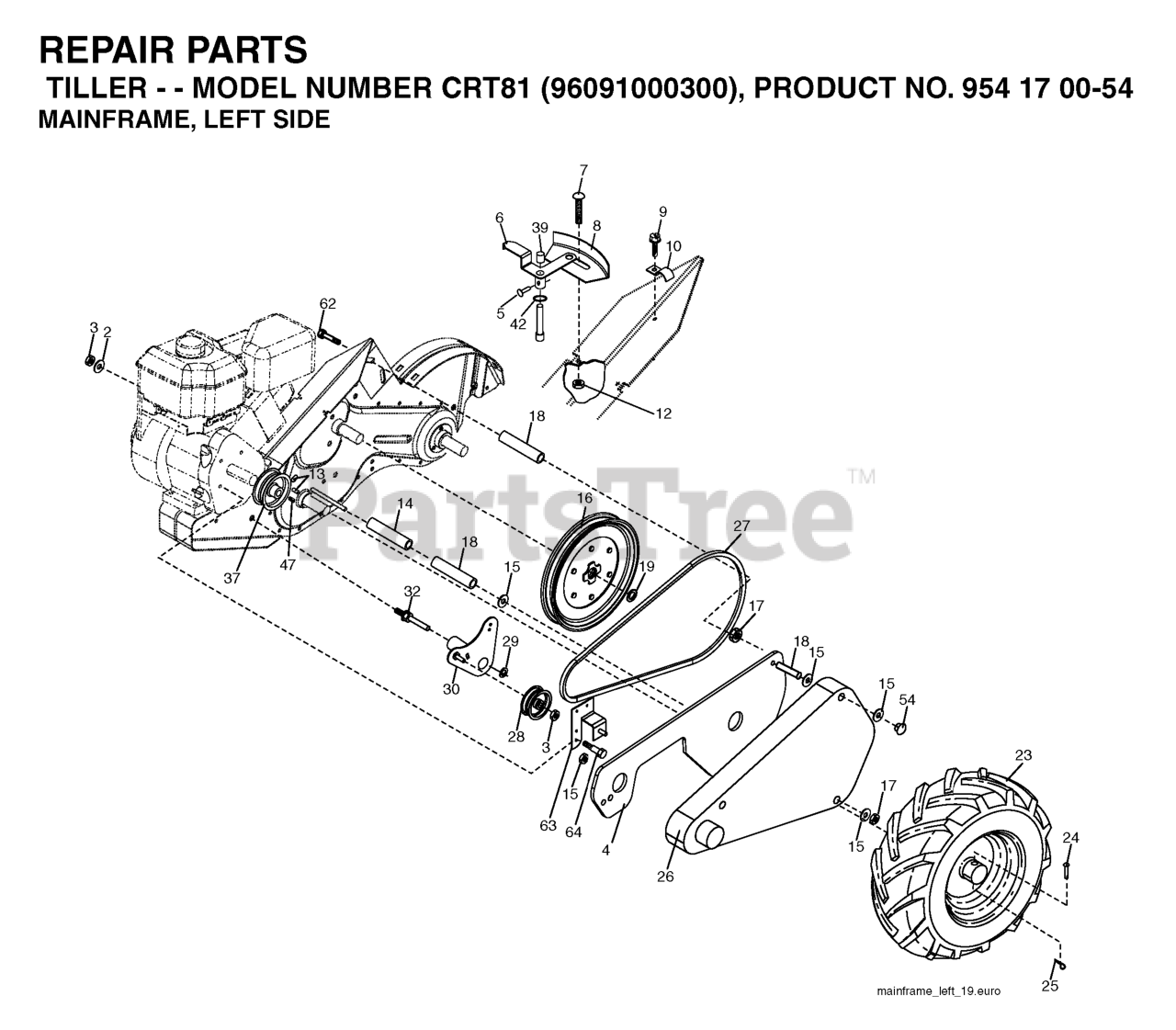

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

63

Husqvarna 532175797

Bracket Asm Guard

$

$

Not available

7

Husqvarna 872110404

BOLT

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 874930572

BOLT 5/16-18X4 1/2

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532009484

CONDUIT.CLIP.PLATED

$6.49

$

In Stock, only 4 left!

0

16

Husqvarna 532145102

SHEAVE, TRANSMISSION

$66.99

$

In Stock, only 3 left!

0

15

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 823230506

SET SCREW

$4.99

$

In Stock, only 2 left!

0

64

Husqvarna 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532131691

SPACER SPLIT

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532004368

SHEAVE, ENGINE

$14.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532104214

NUT TI

$4.99

$

Usually ships in 3-10 days

0

532 00 50-14

Husqvarna 532005014

RIM 2.75 X 8.0 X 1"ID.TILLER

$169.99

$

Usually ships in 3-10 days

0

17

Husqvarna 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532005015

TIRE.16X4-8.CHEVRON.TILLER

$145.99

$

In Stock, only 2 left!

0

32

Husqvarna 532139401

SHAFT, IDLER ARM

$7.49

$

In Stock, only 4 left!

0

24

Husqvarna 532004929

RIVET TI

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 532159229

BRACKET.ASM.IDLER.BLACK
(Superseded to 584289401)

$

$

Not available

6

Husqvarna 532110111

LEVER ASM CRT

$18.99

$

In Stock, only 1 left!

0

2

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 532140062

CAP.PLUNGER.BLACK

$6.49

$

In Stock, only 1 left!

0

28

Husqvarna 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 4 left!

0

29

Husqvarna 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 16

0

42

Husqvarna 532106160

O-RING TI

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

PANEL.INDICATOR.SHIFT.BLACK

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 532181164

FOOTREST.PNT.LH
(Superseded to 532182507)

$27.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532138399

BELT, DRIVE

$60.99

$

Usually ships in 3-10 days

0

12

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532164329

PIN.SPIROL.FLARED

$7.49

$

In Stock, Qty 12

0

47

Husqvarna 532004914

KEY, SQUARE

$2.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532180046

Shield, Inner Belt Guard RT

$

$

Not available

532 12 47-18

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

3

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 3 left!

0
