CRT 9016 (7800941-00) - Snapper 16" Rear-Tine Tiller Engine Mount Group Parts Diagram

16" Rear-Tine Tiller

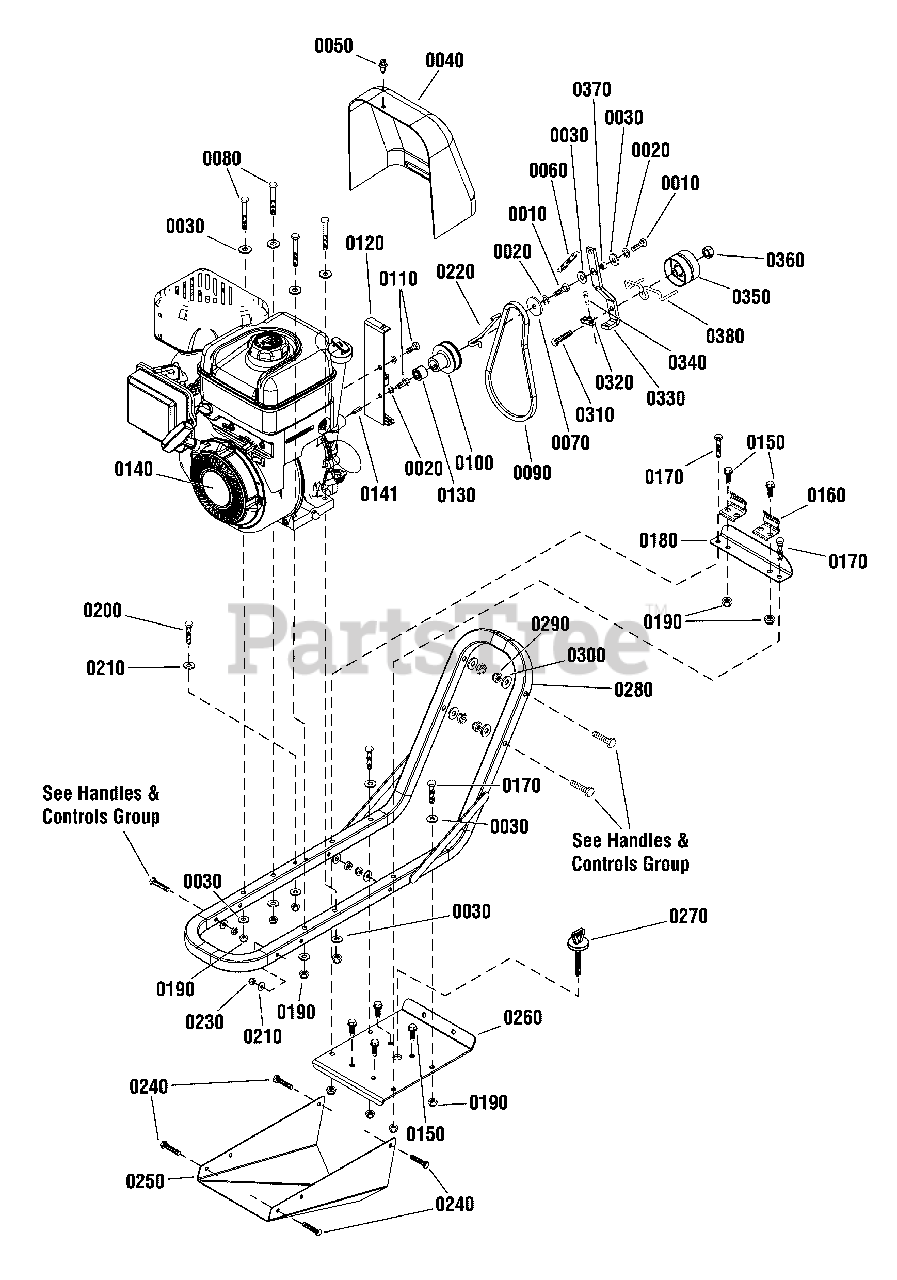

Engine Mount Group Parts Diagram

  • Title

0010

Snapper 1921982

BOLT, 5/16-24 x 1
(Superseded to 703299)

Note: each

$4.99

$

Usually ships in 2-12 days

0

0020

Snapper 1916165

WASHER, Locking, Spring, 5/16
(Superseded to 703116)

Note: each

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 1918265

WASHER, Flat, 5/16
(Superseded to 703350)

Note: each

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 705817

GUARD, Belt

Note: each

$76.99

$

Usually ships in 2-12 days

0

0050

Snapper 1738772

RIVET, Push-In, Plastic
(Superseded to 1738772YP)

Note: each

$9.49

$

Usually ships in 2-12 days

0

0060

Snapper 1716802

SPRING, Forward Arm
(Superseded to 1716802SM)

Note: each

$11.99

$

Usually ships in 2-12 days

0

0070

Snapper 1716770

WASHER, 5/16 x 1 1/2
(Superseded to 1716770SM)

Note: each

$6.99

$

Usually ships in 2-12 days

0

0080

Snapper 706320

BOLT, 5/16-18 x 2 1/4, ZN, G5

Note: each

$5.99

$

Usually ships in 2-12 days

0

0090

Snapper 1751868

BELT, Drive, L4, Power Rated
(Superseded to 1751868YP)

Note: each

$47.99

$

Usually ships in 2-12 days

0

0100

Snapper 1751869

PULLEY, Single Groove, Engine
(Superseded to 1751869YP)

Note: each

$47.99

$

Usually ships in 2-12 days

0

0110

Snapper 1921515

BOLT, Hex-Head, 5/16-24 x 3/4
(Superseded to 1921515SM)

Note: each

$3.99

$

Usually ships in 2-12 days

0

0120

Snapper 1738641

CABLE PULL ASSEMBLY
(Superseded to 1738641YP)

Note: each

$49.99

$

Usually ships in 2-12 days

0

0130

Snapper 706179

SPACER, Drive Pulley, .7

Note: each

$25.99

$

Usually ships in 2-12 days

0

0140

Snapper 130G32-0040-F1

* ENGINE, B&S, 900 Series, Mod. 130G32-0040-F1

Note: each

$

$

Currently unavailable

0141

Snapper 1716771

KEY, Square, 3/16 x 5/8
(Superseded to 1716771YP)

Note: each

$5.99

$

Usually ships in 2-12 days

0

0150

Snapper 1716780

BOLT, Hex-Flange Head, 5/16-18 x 3/4
(Superseded to 704287)

Note: each

$3.99

$

In Stock, Qty 19

0

0160

Snapper 1738639

CLIP, Belt-Guard, Tillers
(Superseded to 1738639YP)

Note: each

$12.99

$

Usually ships in 2-12 days

0

0170

Snapper 1922127

BOLT, Hex-Head, 5/16-18 x 1-3/4
(Superseded to 704288)

Note: each

$4.99

$

Usually ships in 2-12 days

0

0180

Snapper 1751871

TAB, Belt Guard Support, Small Rear Tine
(Superseded to 1751871YP)

Note: each

$32.99

$

Usually ships in 2-12 days

0

0190

Snapper 5025057

NUT, Nylock, 5/16-18
(Superseded to 5025057FS)

Note: each

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper 5025010X14

CAPSCREW, Hex Head, 1/4-20 x 1 3/4, G5
(Superseded to 5025010X14SM)

Note: each

$3.99

$

In Stock, only 1 left!

0

0210

Snapper 7090053

WASHER, 1/4
(Superseded to 703462)

Note: each

$4.49

$

In Stock, Qty 13

0

0220

Snapper 1751872

GUIDE, Belt, Rear Tine
(Superseded to 1751872YP)

Note: each

$18.99

$

Usually ships in 2-12 days

0

0230

Snapper 722393

NUT, Hex Ny-Lock, 1/4-20
(Superseded to 703232)

Note: each

$4.49

$

In Stock, Qty 20+

0

0240

Snapper 5025010X12

CAPSCREW, 1/4-20 x 1 1/2, G5
(Superseded to 5025010X12SM)

Note: each

$2.99

$

Usually ships in 2-12 days

0

0250

Snapper 706180

PAN, Lower

Note: each

$125.99

$

Usually ships in 2-12 days

0

0260

Snapper 706181

PLATE, Transmission Cover/Hood Mount

Note: each

$83.99

$

Usually ships in 2-12 days

0

0270

Snapper 1723700

DIP STICK
(Superseded to 1723700SM)

Note: each

$

$

Not available

0280

Snapper 1751875

ENGINE & HANDLE MOUNT ASSEMBLY
(Superseded to 1751875YP)

Note: each

$115.99

$

Usually ships in 2-12 days

0

0290

Snapper 5025096

NUT, Nylock, 3/8-16
(Superseded to 5025096SM)

Note: each

$3.49

$

In Stock, Qty 10

0

0300

Snapper 7090122

WASHER, Flat, 3/8
(Superseded to 703878)

Note: each

$3.99

$

In Stock, Qty 20+

0

0310

Snapper 7091305

CAPSCREW, 3/8-16 x 1 1/4
(Superseded to 7091305SM)

Note: each

$4.49

$

In Stock, Qty 7

0

0320

Snapper 1716728

YOKE, Clevis
(Superseded to 1716728SM)

Note: each

$

$

Not available

0330

Snapper 1738668

ARM, Forward
(Superseded to 1738668YP)

Note: each

$24.99

$

Usually ships in 2-12 days

0

0340

Snapper 1716702

PIN, Clevis
(Superseded to 1716702SM)

Note: each

$3.99

$

Usually ships in 2-12 days

0

0350

Snapper 1716803

PULLEY, Idler, Forward
(Superseded to 1716803SM)

Note: each

$45.99

$

Usually ships in 2-12 days

0

0360

Snapper 5025096

NUT, Nylock, 3/8-16
(Superseded to 5025096SM)

Note: each

$3.49

$

In Stock, Qty 10

0

0370

Snapper 1738651

BUSHING, Forward Arm
(Superseded to 1738651YP)

Note: each

$18.99

$

Usually ships in 2-12 days

0

0380

Snapper 1722162

GUIDE, Belt, Reverse
(Superseded to 1722162SM)

Note: each

$36.99

$

Usually ships in 2-12 days

0

0390

Snapper 706182

VENT, Breather, 1/8-27

$46.99

$

Usually ships in 2-12 days

0
