CRT 9016 (7800941-00) - Snapper 16" Rear-Tine Tiller Handles & Controls Group Parts Diagram

16" Rear-Tine Tiller

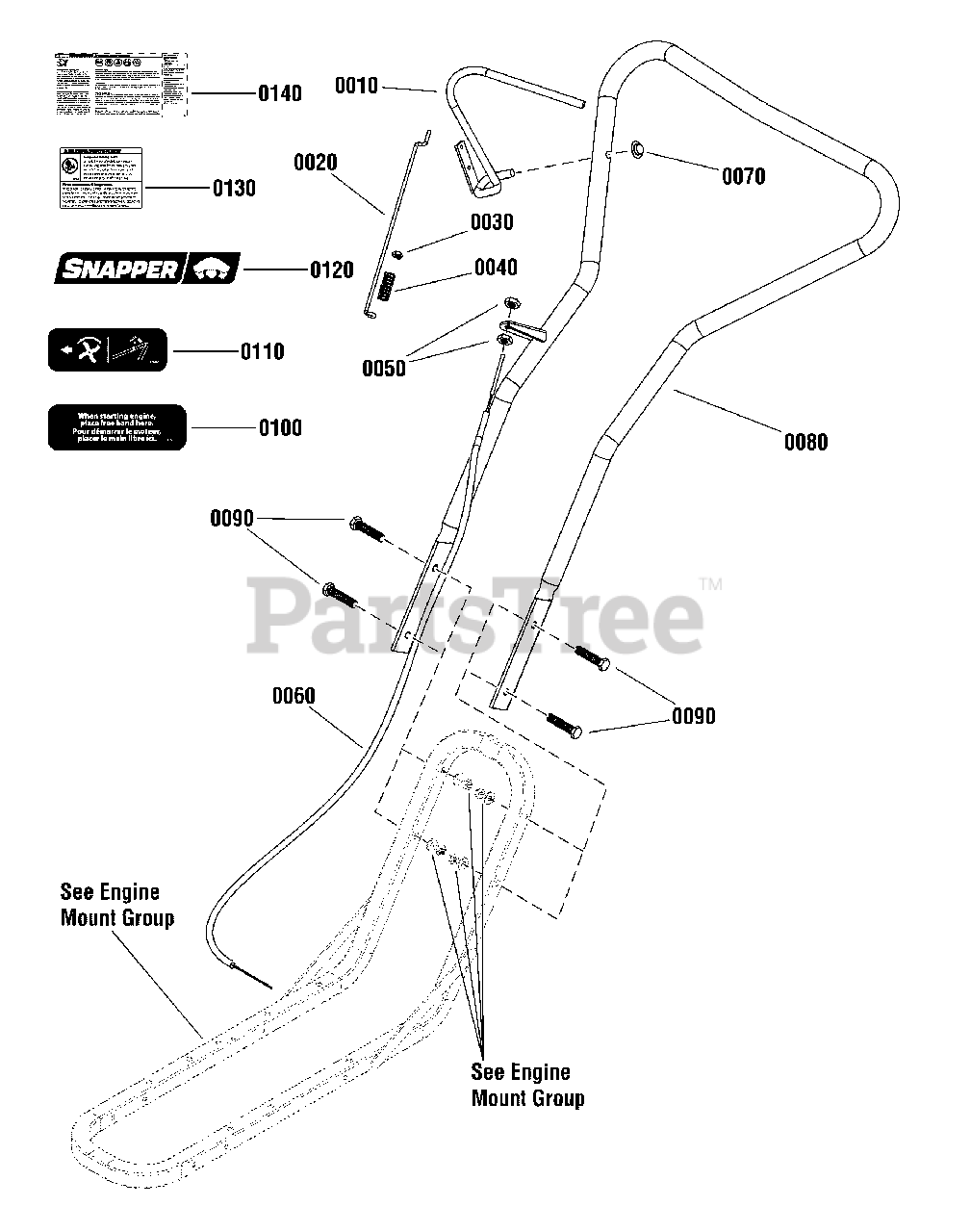

Handles & Controls Group Parts Diagram

  • Title

0010

Snapper 706183

LEVER, Drive

Note: each

$49.99

$

Usually ships in 2-12 days

0

0020

Snapper 1738631

LINK, 9-1/2" Long
(Superseded to 1738631YP)

Note: each

$24.99

$

Usually ships in 2-12 days

0

0030

Snapper 1933896

NUT, Hex, Nylock, 10-24
(Superseded to 703412)

Note: each

$4.49

$

In Stock, Qty 10

0

0040

Snapper 1738712

SPRING, Compression, Forward Arm
(Superseded to 1738712YP)

Note: each

$11.99

$

Usually ships in 2-12 days

0

0050

Snapper 2820438

NUT, Hex-Jam, 5/16-24
(Superseded to 2820438SM)

Note: each

$3.49

$

In Stock, only 2 left!

0

0060

Snapper 1719037

CABLE ASSEMBLY, Drive Control
(Superseded to 1719037SM)

Note: each

$67.99

$

In Stock, Qty 7

0

0070

Snapper 1960093

NUT, Push, 3/8 Dia.
(Superseded to 703948)

Note: each

$4.49

$

In Stock, Qty 8

0

0080

Snapper 705824

HANDLE BAR ASSEMBLY, Loop, Rear Tine

Note: each

$176.99

$

Usually ships in 2-12 days

0

0090

Snapper 1931353

BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

Note: each

$4.99

$

In Stock, only 4 left!

0

0100

DECAL, Start

$

$

Not available

0110

DECAL, Forward

$

$

Not available

0120

DECAL, Snapper

$

$

Not available

0130

DECAL, Warning

$

$

Not available

0140

DECAL, Danger

$

$

Not available
