CS 100 (1692464) - Simplicity General Power Chipper Shredder Housing Group (2633I01) Parts Diagram

General Power Chipper Shredder

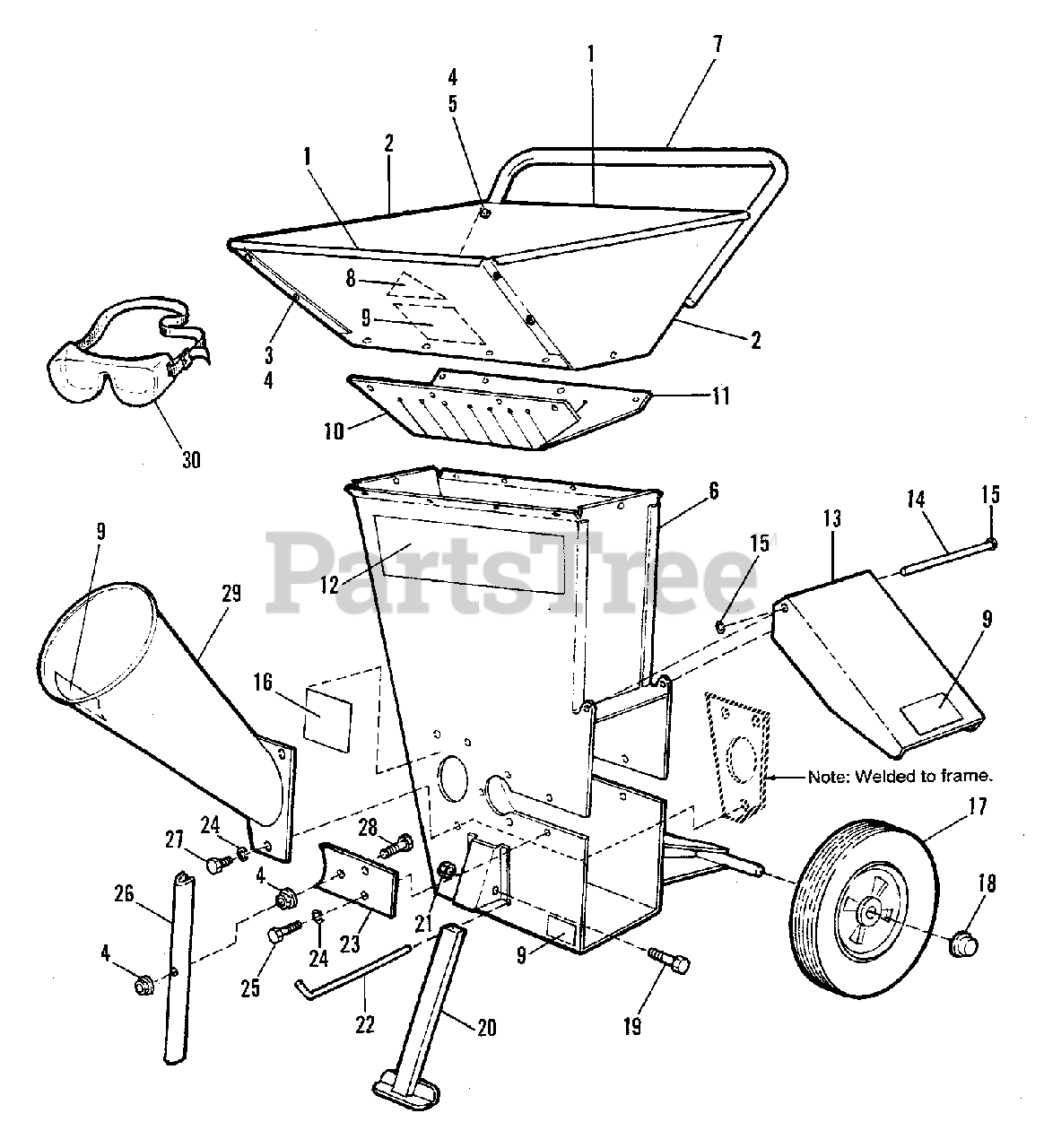

Housing Group (2633I01) Parts Diagram

  • Title

1

Simplicity 095130

HOPPER FRONT & BACK

$

$

Not available

2

Simplicity 095135

HOPPER END

$

$

Not available

3

Simplicity 164995

SCREW, Truss Head, Phillips, 1/4-20 x 5/8

$

$

Not available

4

Simplicity 2715078

NUT, Hex Flange, Whiz Lock, 1/4-20

$

$

Not available

5

Simplicity 450072

CAPSCREW, 1/4-20 x 1-1/2

$

$

Not available

6

Simplicity 095134

MAIN FRAME

$

$

Not available

7

Simplicity 095151

HANDLE

$

$

Not available

8

DECAL, OPEI

$

$

Not available

9

Simplicity 799641

DECAL, Danger

$

$

Not available

10

Simplicity 115442

GUARD, Cone Side

$

$

Not available

11

Simplicity 115443

GUARD, Engine Side

$

$

Not available

12

DECAL

$

$

Not available

13

Simplicity 095135

DEFLECTOR, Discharge

$

$

Not available

14

Simplicity 905136

DEFLECTOR, Rod

$

$

Not available

15

Simplicity 452128

NUT, Push, 1/4

$

$

Not available

17

Simplicity 043189

WHEEL

$

$

Not available

18

Simplicity 164996

NUT, Push, 5/8

$

$

Not available

19

Simplicity 460311

CAPSCREW, Hex, 5/16-18 x 1-3/4

$

$

Not available

20

Simplicity 095137

LEG

$

$

Not available

21

Simplicity 310151

NUT, Nylock, 5/16-18

$1.99

$

Usually ships in 2-12 days

0

22

Simplicity 095138

ROD, Screen

$

$

Not available

23

Simplicity 095139

PLATE, Closure

$

$

Not available

24

Simplicity 311118

LOCKWASHER, 5/16

$

$

Not available

25

Simplicity 382275

CAPSCREW, Hex, 5/16-18 x 1/2

$14.99

$

Usually ships in 2-12 days

0

26

Simplicity 095140

ROD HOLDER

$

$

Not available

27

Simplicity 450346

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

28

Simplicity 588519

SCREW, Truss head, Phillips, 1/4-20 x 1-1/2

$

$

Not available

29

Simplicity 095152

CONE, Chipper Hopper

$

$

Not available

30

Simplicity 400069

GOGGLES

$

$

Not available
