CS 100 (1692464) - Simplicity General Power Chipper Shredder Rotor Group (2633I03) Parts Diagram

General Power Chipper Shredder

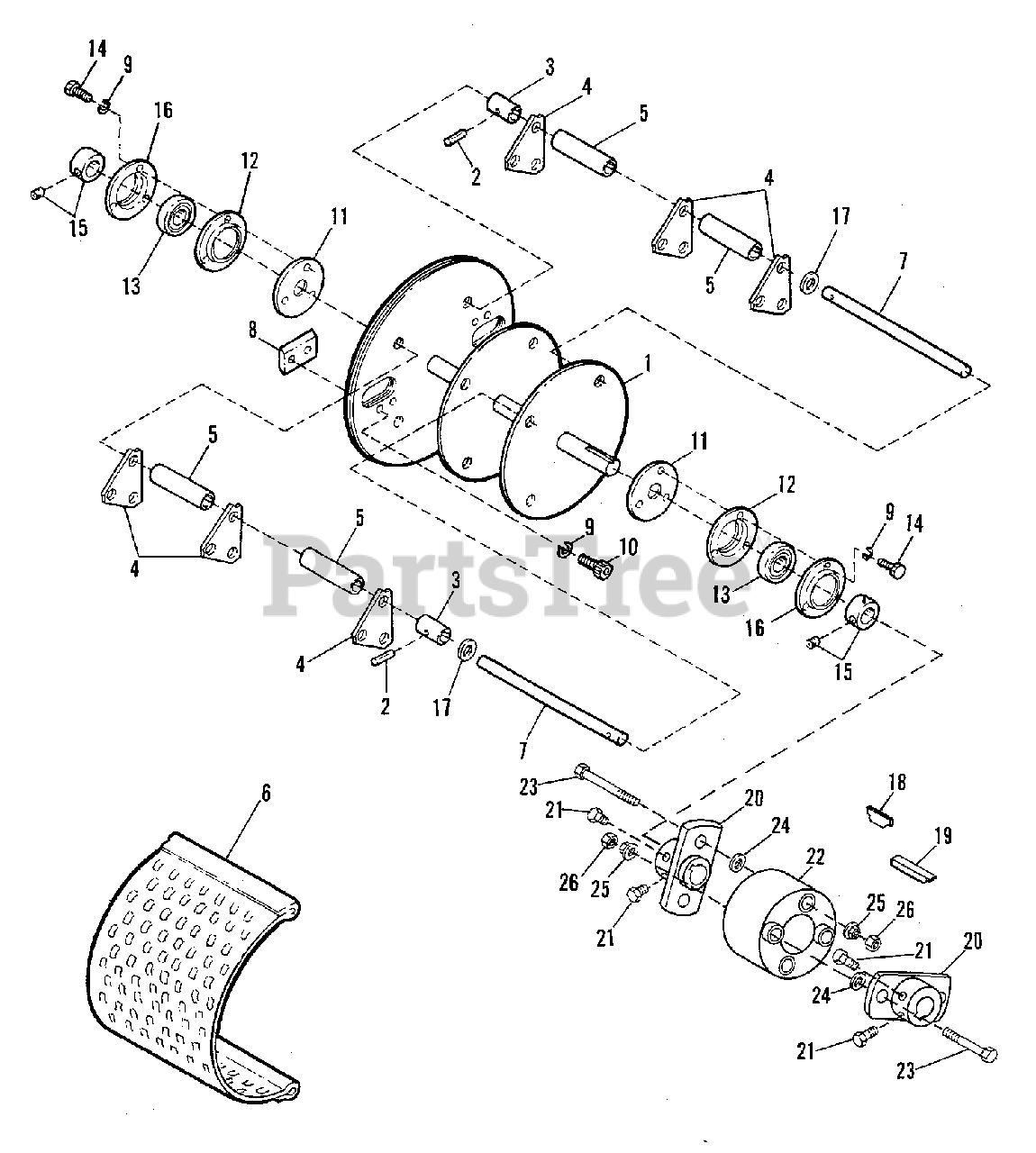

Rotor Group (2633I03) Parts Diagram

  • Title

1

Simplicity 095143

ROTOR

$

$

Not available

2

Simplicity 164997

ROLL PIN, 3/16 x 3/4

$

$

Not available

3

Simplicity 095144

SPACER, Short

$

$

Not available

4

Simplicity 095123

HAMMER

$

$

Not available

5

Simplicity 095145

SPACER, Long

$

$

Not available

6

Simplicity 095146

SCREEN, 3/4 Diameter Circle Openings (Standard)

$

$

Not available

6

Simplicity 095187

SCREEN, 3/8 Diameter Circle Openings (Optional)

$

$

Not available

6

Simplicity 095188

SCREEN, 1-1/2 Diameter Circle Openings (Optional)

$

$

Not available

6

Simplicity 095189

SCREEN, 1-1/2 Oblong Slot Openings (Optional)

$

$

Not available

7

Simplicity 095147

SHAFT

$

$

Not available

8

Simplicity 095148

KNIFE

$

$

Not available

9

Simplicity 311118

LOCKWASHER, 5/16

$

$

Not available

10

Simplicity 163741

CAPSCREW, Socket Head, 5/16-24 x 7/8

$

$

Not available

11

Simplicity 095153

GUARD, Bearing

$

$

Not available

12

Simplicity 095154

FLANGETTE

$

$

Not available

13

Simplicity 095155

BEARING

$

$

Not available

14

Simplicity 450346

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

15

Simplicity 095156

LOCKING COLLAR, Bearing

$

$

Not available

16

Simplicity 406416

FLANGETTE, w/Zerk Fitting

$

$

Not available

17

Simplicity 156596

WASHER, 1/2 ID x 7/8 OD x 1/16 Thick

$

$

Not available

18

Simplicity 382895

KEY, Hi-Pro, 1/4 x 7/8

$

$

Not available

19

Simplicity 382896

KEY, Hi-Pro, 1/4 x 1-3/8

$

$

Not available

20

Simplicity 406417

HUB & PLATE ASSEMBLY, Drive

$

$

Not available

21

Simplicity 382897

SETSCREW, Square Head Cup Point, 5/16-18 x 5/8 GR 8

$

$

Not available

22

Simplicity 406418

COUPLER, Drive

$

$

Not available

23

Simplicity 382898

CAPSCREW, Hex Head, 3/8-16 x 2-3/4 GR 8

$

$

Not available

24

Simplicity 164989

WASHER, 13/32 x ID x 1 OD x 1/8 Thick

$

$

Not available

25

Simplicity 382900

NUT, Hex Flange, Machine Lock, 3/8-16

$

$

Not available

26

Simplicity 715086

LOCKNUT, Two-Way, 3/8-16

$186.99

$

Usually ships in 2-12 days
