CS-100 - Echo Chainsaw Crankcase Parts Diagram

Chainsaw

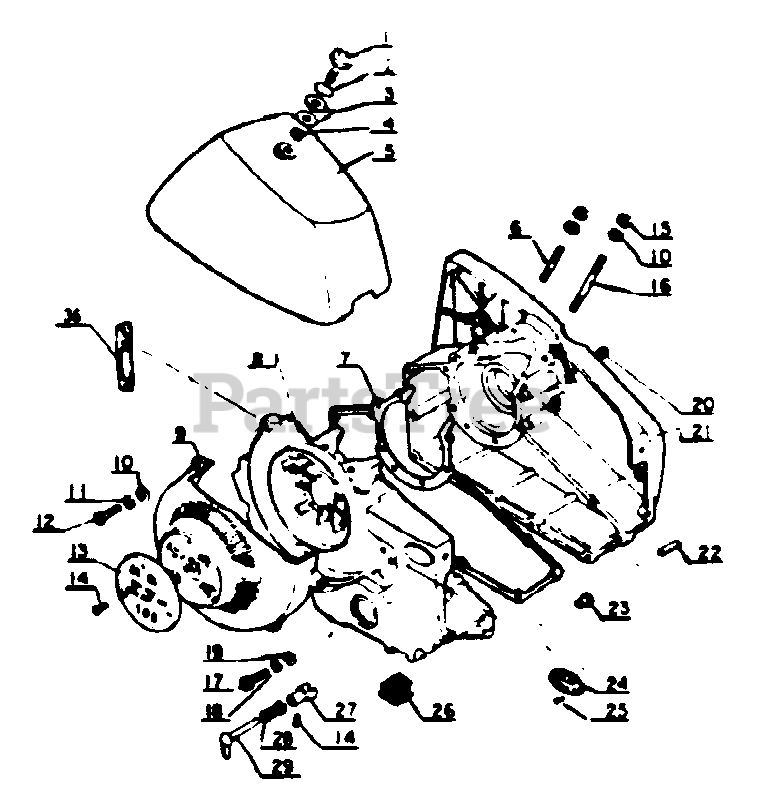

Crankcase Parts Diagram

  • Title

1

Echo 10150500130

WINGNUT
(Superseded to Discontinued)

$

$

Not available

2

Echo 10151700130

O-RING
(Superseded to 90072200010)

$1.49

$

Usually ships in 2-4 days

0

3

Echo 10151600130

WASHER
(Superseded to Discontinued)

$

$

Not available

4

Echo 90070000006

RING, RETAINING - 6

$0.99

$

In Stock, Qty 5

0

5

Echo 10151400131

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

6

Echo 10021900130

STUD
(Superseded to 10025400130)

$1.49

$

Usually ships in 2-4 days

0

7

Echo 10024200130

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

8

Echo 10020000131

CRANKCASE
(Superseded to Discontinued)

$

$

Not available

8

Echo 10020000132

CRANKCASE
(Superseded to Discontinued)

$

$

Not available

10

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 17

0

12

Echo 90010006014

BOLT - 6X14
(Superseded to Discontinued)

$

$

Not available

13

Echo 89011200131

NAME PLATE

$

$

Currently unavailable

14

Echo 90001004006

SCREW

Note: Used on CS-100 (JIS)

$

$

Currently unavailable

14

Echo 90021004006

SCREW - 4X6
(Superseded to 90022004006)

Note: Used on CS-100 (ISO)

$0.99

$

In Stock, Qty 12

0

15

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

16

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 35101500130

BOLT

Note: Used on CS-100 (JIS)

$

$

Currently unavailable

17

Echo 35121800830

BOLT - 5X25
(Superseded to 90010505025)

Note: Used on CS-100 (ISO)

$1.49

$

In Stock, Qty 20+

0

18

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

19

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 17

0

21

------------------

UNKNOWN

$

$

Not available

22

Echo 10021500130

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

23

Echo 10024900130

Pump lever bush
(Superseded to Discontinued)

$

$

Not available

24

Echo 89001000131

PLATE, MODEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

26

Echo 10025300130

CUSHION
(Superseded to Discontinued)

$

$

Not available

27

Echo 17851300130

LEVER, CHOKE
(Superseded to Discontinued)

$

$

Not available

28

Echo 17881000130

CONNECTOR, CHOKE LEVER
(Superseded to Discontinued)

$

$

Not available

29

Echo 17850500130

LEVER, CHOKE
(Superseded to Discontinued)

$

$

Not available

20

Echo 10021800130

HELISERT

$

$

Currently unavailable

9

Echo 10151100131

CASE, STARTER
(Superseded to 10151100132)

Note: Used on CS-100 (JIS)

$

$

Not available

9

------------------

COVER, FAN

Note: Used on CS-100 (ISO)

$

$

Not available

36

------------------

UNKNOWN

$

$

Not available
