CS-100 - Echo Chainsaw Fuel System Parts Diagram

Chainsaw

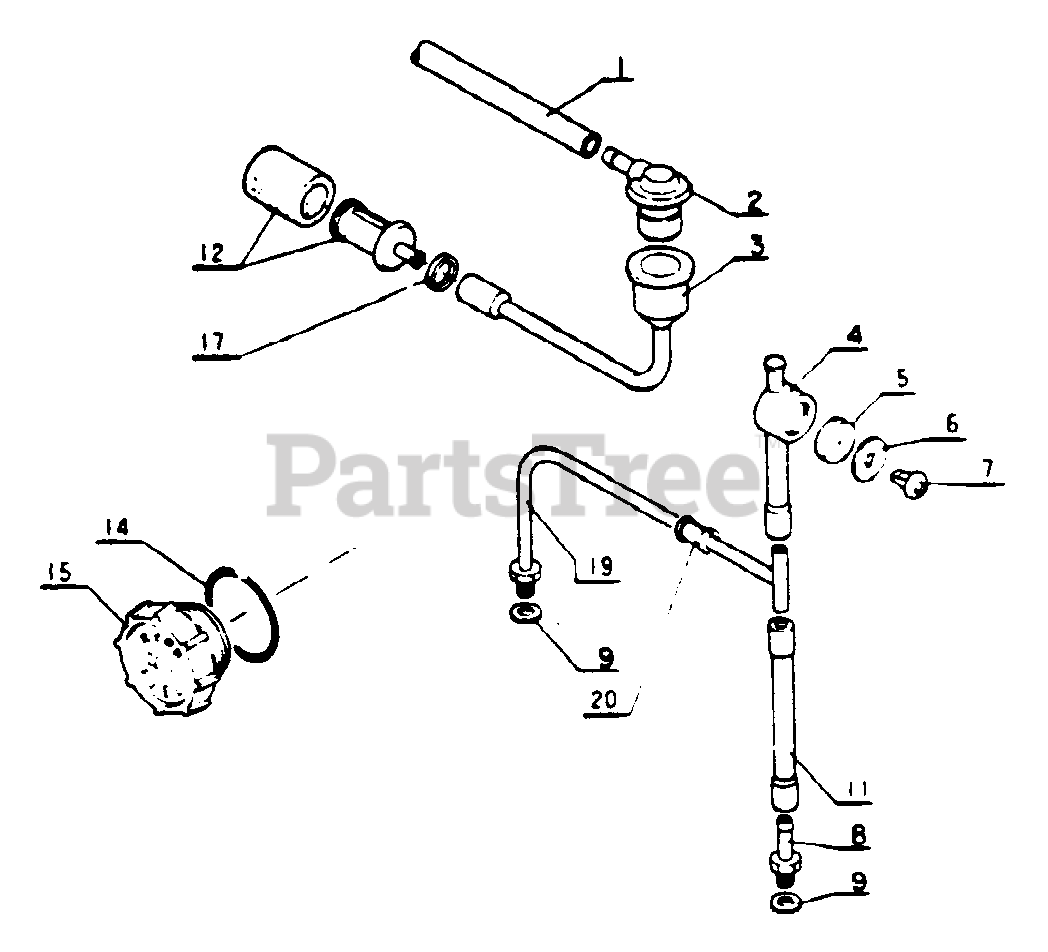

Fuel System Parts Diagram

  • Title

1

Echo 13201200130

PIPE - FUEL - OUTER
(Superseded to Discontinued)

$

$

Not available

2

Echo 13201100130

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

3

Echo 13201000130

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

4

Echo 13131200130

PIPE - AIR
(Superseded to Discontinued)

$

$

Not available

5

Echo 13131500330

FILTER

$0.99

$

Usually ships in 2-4 days

0

6

Echo 13131300330

HOLDER, VENT

$0.99

$

Usually ships in 2-4 days

0

7

------------------

VALVE, CHECK

Note: NOT USED ON THIS MODEL

$

$

Not available

8

Echo 13131100331

NIPPLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13131000230

GASKET

$0.99

$

Usually ships in 2-4 days

0

11

Echo 13132000130

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

12

Echo 13120500230

FILTER, FUEL
(Superseded to 13120530830)

$9.99

$

In Stock, Qty 20+

0

14

Echo 13102800230

O-RING
(Superseded to 90072000029)

$3.99

$

In Stock, Qty 16

0

15

Echo 13101700130

CAP
(Superseded to Discontinued)

$

$

Not available

17

Echo 13201300130

RETAINER, PIPE
(Superseded to Discontinued)

$

$

Not available

19

Echo 13130500131

PIPE - AIR

$

$

Currently unavailable

20

Echo 43741000130

GROMMET

$

$

Currently unavailable
