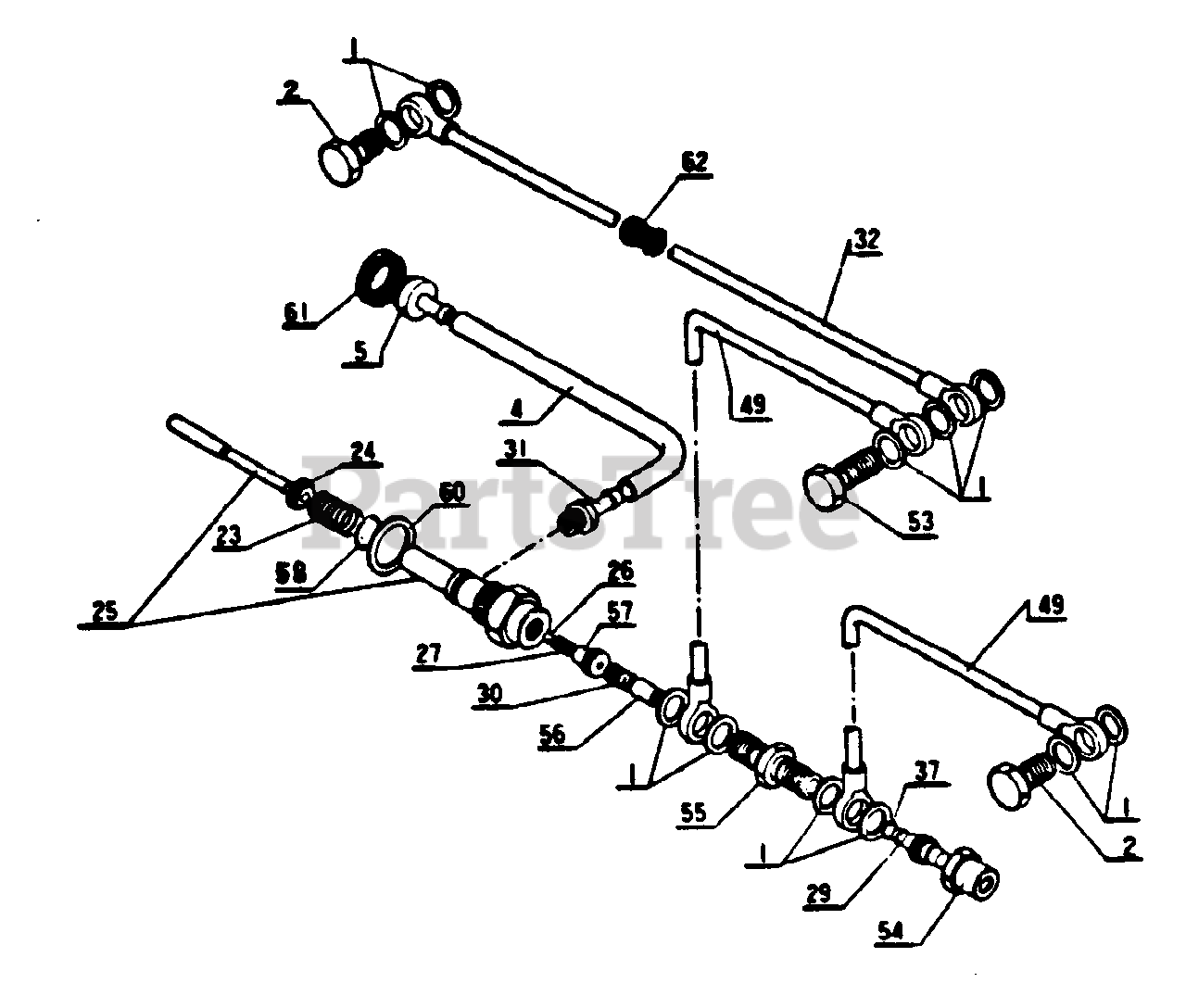

CS-100 - Echo Chainsaw Oiler, Auto Parts Diagram

Chainsaw

Oiler, Auto Parts Diagram

  • Title

1

Echo 43721900130

GASKET
(Superseded to Discontinued)

$

$

Not available

2

Echo 43722000130

BOLT
(Superseded to Discontinued)

$

$

Not available

4

Echo 43721000130

PIPE, OIL - INNER
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

5

Echo 43620500130

FILTER, OIL
(Superseded to Discontinued)

$

$

Not available

23

Echo 43701900430

SPRING
(Superseded to Discontinued)

$

$

Not available

24

Echo 43701800130

CASE, SPRING
(Superseded to Discontinued)

$

$

Not available

25

Echo 43700200630

CYLINDER, OIL
(Superseded to Discontinued)

$

$

Not available

26

Echo 43701200130

VALVE, BALL
(Superseded to Discontinued)

$

$

Not available

27

Echo 43701300230

SPRING, VALVE
(Superseded to 43701300330)

$0.99

$

In Stock, Qty 9

0

29

Echo 43701600130

SCREW, ADJUST
(Superseded to Discontinued)

$

$

Not available

30

Echo 43701500130

SPRING
(Superseded to Discontinued)

$

$

Not available

31

Echo 13131100130

NIPPLE

Note: Used on CS-100 (JIS)

$

$

Currently unavailable

31

Echo 13131100131

NIPPLE

Note: Used on CS-100 (ISO)

$

$

Currently unavailable

32

Echo 43720600130

PIPE - OIL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

37

Echo 43703000130

O-RING
(Superseded to Discontinued)

$

$

Not available

49

Echo 43720800130

PIPE - OIL

$

$

Currently unavailable

53

Echo 43722200130

BOLT
(Superseded to Discontinued)

$

$

Not available

54

Echo 43703200130

NUT, ADJUST
(Superseded to Discontinued)

$

$

Not available

55

Echo 43702800130

PUMP ADJUSTER
(Superseded to Discontinued)

$

$

Not available

56

Echo 43702900130

SPACER, PUMP
(Superseded to Discontinued)

$

$

Not available

57

Echo 43701400130

SEAT, VALVE
(Superseded to Discontinued)

$

$

Not available

58

Echo 43702000130

O-RING
(Superseded to 90072000007)

$0.99

$

Usually ships in 2-4 days

0

60

Echo 43702500130

PACKING
(Superseded to Discontinued)

$

$

Not available

61

Echo 43621200130

COVER, OIL FILTER
(Superseded to Discontinued)

$

$

Not available

62

Echo 43741000130

GROMMET

$

$

Currently unavailable
