CS-1001 VL - Echo Chainsaw Decals Parts Diagram

Model: CS-1001VL Engine: air-cooled, 2-cycle, cylinder Displacement: 6.08 cu in (55 x 42 mm) Revolution: counterclockwise (magneto side) Magneto: NGK BPM-7A Carburetor: Tillotson HS-180A or Walbro SDC-52 Fuel: gasoline + mobile oil 20:1 Cooling: forced air Starter: recoil or automatic Lubrication: Kioritz chain oil, centrifugal clutch Fuel tank: 1.08 L (2.33 pt) Oil tank: 0.44 L (0.95 pt) Chain: 0.404" pitch, 0.063" gauge, 80 links, 65 cm bar Weight: 10 kg dry (22.2 lb)

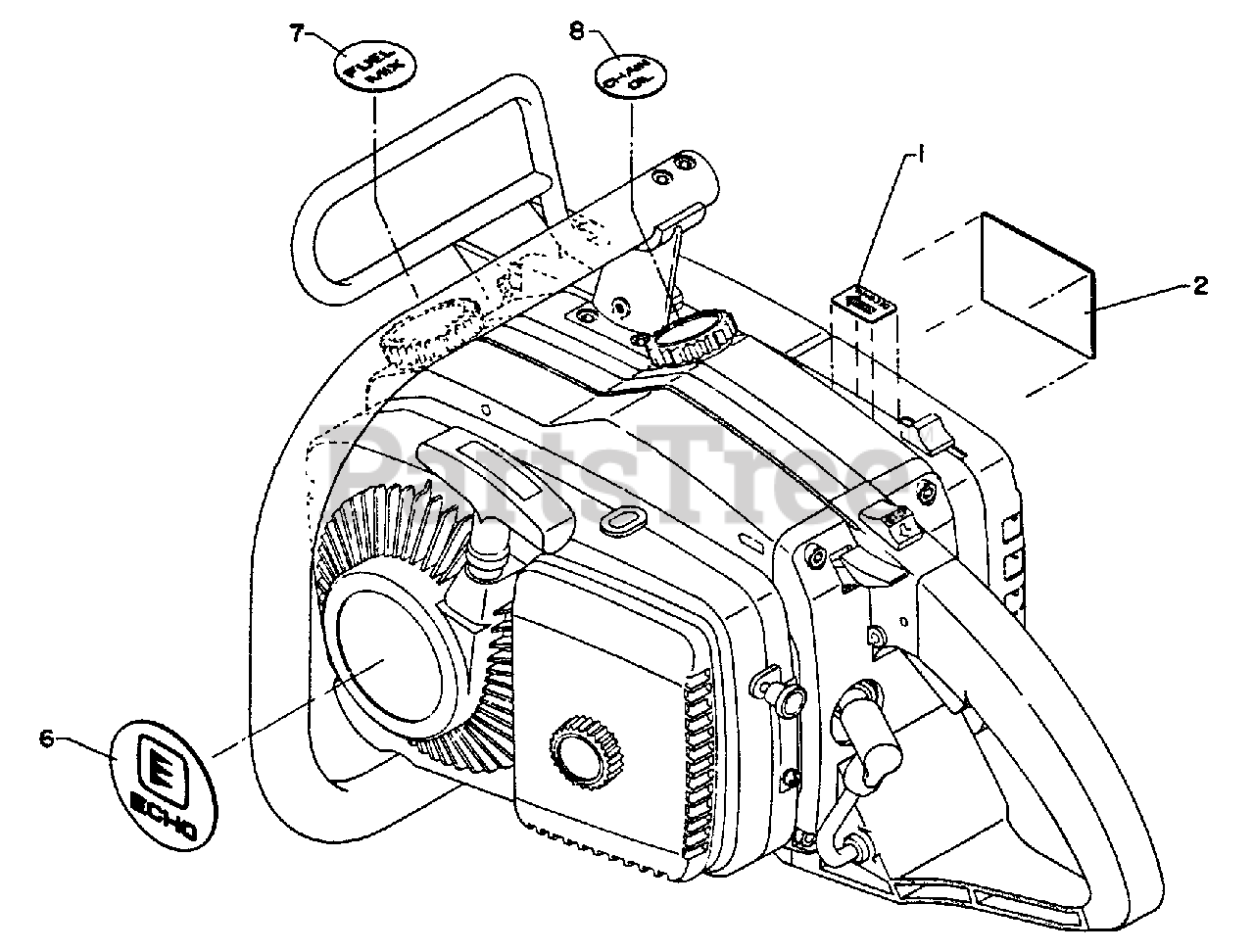

Decals Parts Diagram

  • Title

1

Echo 89014903730

LABEL - DECOMPRESSION
(Superseded to Discontinued)

$

$

Not available

2

Echo 89002110630

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

6

Echo 89001210632

NAME PLATE

$

$

Currently unavailable

7

Echo 89014710230

LABEL - FUEL MIX
(Superseded to 89015412730)

$

$

Not available

8

Echo 89015310630

LABEL - OIL
(Superseded to 89015313030)

$1.49

$

Usually ships in 2-4 days
