CS-1001 VL - Echo Chainsaw Engine, Exhaust, Crankcase, Intake, Exhaust Parts Diagram

Chainsaw

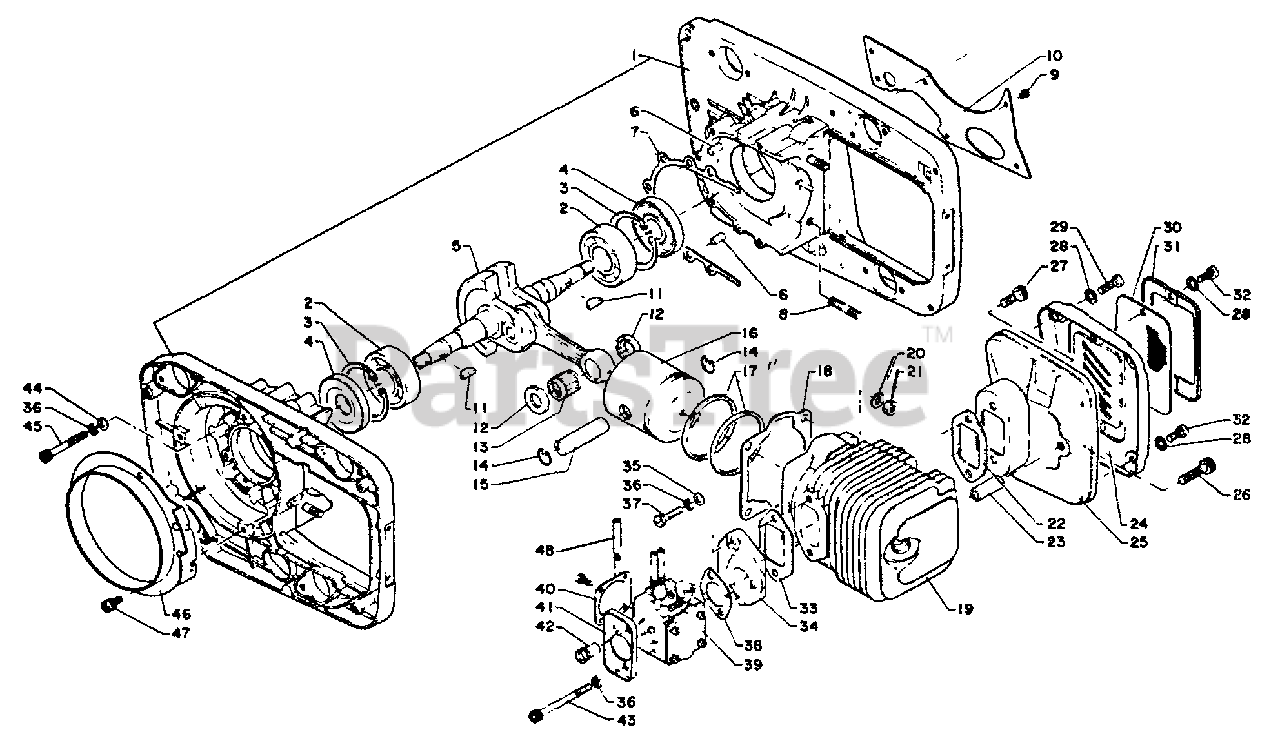

Engine, Exhaust, Crankcase, Intake, Exhaust Parts Diagram

  • Title

1

Echo 10020010630

CRANKCASE KIT
(Superseded to Discontinued)

Note: (With key No. 9 & 10)

$

$

Not available

2

Echo 90081006204

BEARING, BALL - 6204C3

$10.99

$

Usually ships in 2-4 days

0

3

Echo 90070200047

RING, RETAINING - 47
(Superseded to Discontinued)

$

$

Not available

4

Echo 10021310630

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

5

Echo 10010010630

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

6

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

7

Echo 10024210630

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

8

Echo 27001500610

STUD
(Superseded to Discontinued)

$

$

Not available

9

Echo 89001110630

RIVET
(Superseded to Discontinued)

$

$

Not available

10

Echo 10062110630

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

11

Echo 90032203014

KEY - 3X14
(Superseded to 90032303014)

$1.49

$

In Stock, only 2 left!

0

12

Echo 10001410630

SPACER, PISTON
(Superseded to Discontinued)

$

$

Not available

13

Echo 10001210631

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

14

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

15

Echo 10001300430

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

16

Echo 10001010631

PISTON
(Superseded to Discontinued)

$

$

Not available

17

Echo 10001110630

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

18

Echo 10101010630

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

19

Echo 10101110631

CYLINDER
(Superseded to Discontinued)

$

$

Not available

20

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 14551010630

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

23

Echo 14566610630

SPACER
(Superseded to Discontinued)

$

$

Not available

24

Echo 14560610630

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

25

Echo 14560510631

MUFFLER
(Superseded to Discontinued)

$

$

Not available

26

Echo 90010506030

SCREW - 6X30
(Superseded to Discontinued)

$

$

Not available

27

Echo 90010506015

SCREW - 6X15
(Superseded to Discontinued)

$

$

Not available

28

Echo 90041000005

LOCKWASHER - 5

$

$

Currently unavailable

29

Echo 90022005016

SCREW - 5X16

$0.99

$

In Stock, Qty 10

0

30

Echo 14586210630

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

31

Echo 14586310630

RETAINER, SCREEN
(Superseded to Discontinued)

$

$

Not available

32

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

33

Echo 13001010630

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

34

Echo 13001710632

INSULATOR, INTAKE

$

$

Currently unavailable

35

Echo 13003110630

WASHER
(Superseded to Discontinued)

$

$

Not available

36

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

37

Echo 90010505030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

38

Echo 13001610630

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

39

Echo 12300010633

CARBURETOR SDC-76
(Superseded to Discontinued)

$

$

Not available

40

Echo 12900710630

COVER, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

41

Echo 13071110630

ADAPTOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

42

Echo 17821210630

GROMMET
(Superseded to Discontinued)

$

$

Not available

43

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 20+

0

44

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

45

Echo 90010505040

SCREW - 5X40

$1.49

$

In Stock, Qty 5

0

46

Echo 10061410630

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

47

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

48

Echo 12902510630

TUBE
(Superseded to Discontinued)

$

$

Not available
