CS-1001 VL - Echo Chainsaw Fuel System, Oil Tank Parts Diagram

Chainsaw

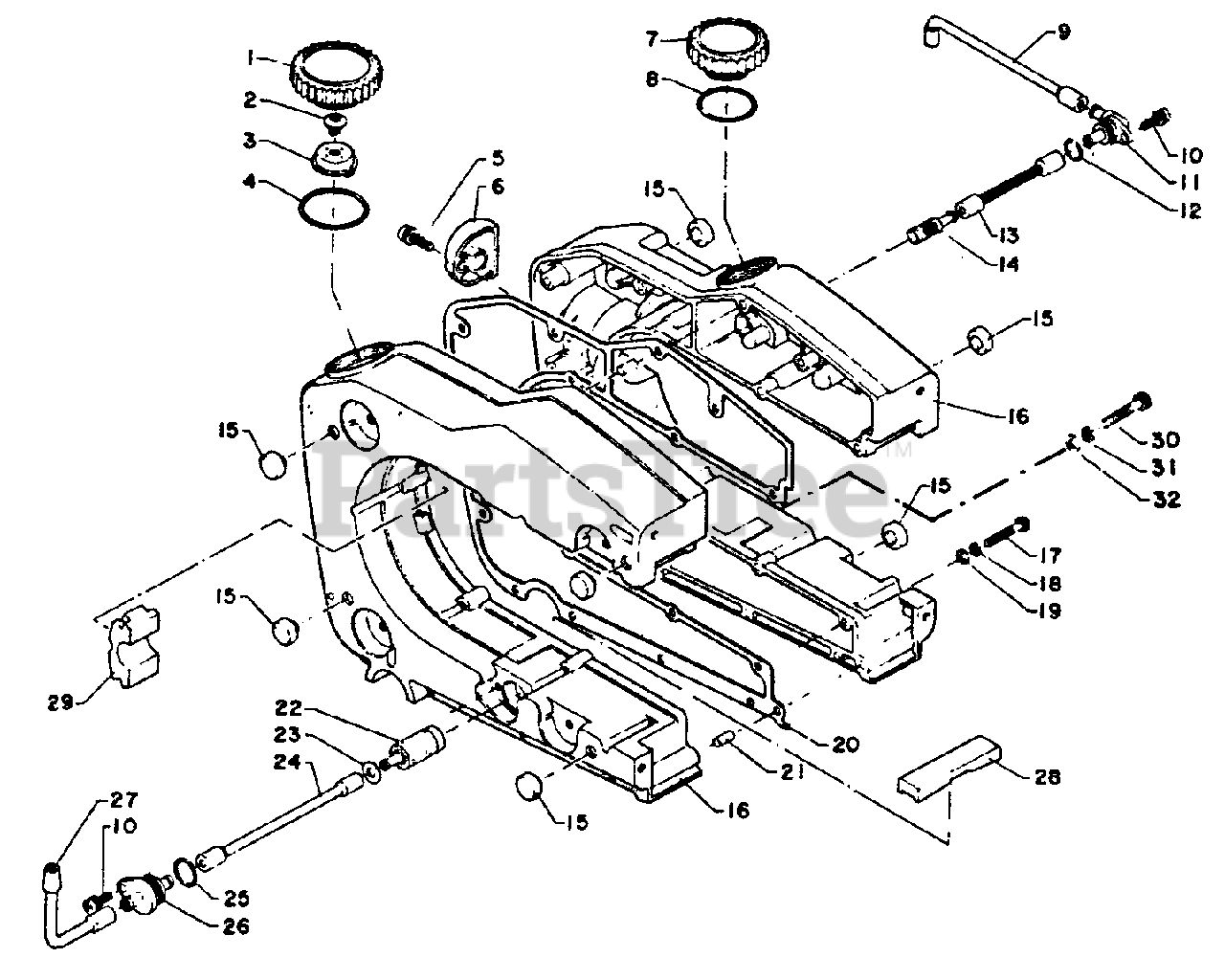

Fuel System, Oil Tank Parts Diagram

  • Title

1

Echo 13100110231

CAP ASSY
(Superseded to 13160010231)

$

$

Not available

2

Echo 13131400330

VENT

$11.99

$

In Stock, Qty 5

0

3

Echo 13101500830

HOLDER, VENT

$3.49

$

In Stock, only 1 left!

0

4

Echo 90072000029

O-RING - 29

$3.49

$

In Stock, Qty 18

0

5

Echo 90024205015

SCREW - 5X15

$0.99

$

In Stock, only 2 left!

0

6

Echo 43760510630

COVER, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

7

Echo 43600010632

CAP, OIL TANK
(Superseded to 43600213030)

$9.99

$

Usually ships in 2-4 days

0

8

Echo 90072000025

O-RING - 25
(Superseded to Discontinued)

$

$

Not available

9

Echo 43721110630

PIPE, OIL - OUTER
(Superseded to 43731110631)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

10

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

11

Echo 43721210630

CONNECTOR, PIPE
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

12

Echo 90072000009

O-RING - 9
(Superseded to Discontinued)

$

$

Not available

13

Echo 43721010631

PIPE - INNER
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

14

Echo 43620502832

FILTER, OIL

$8.99

$

In Stock, Qty 19

0

15

Echo 10025110630

CUSHION
(Superseded to Discontinued)

$

$

Not available

16

Echo 13100110631

TANK, FUEL

$

$

Currently unavailable

17

Echo 90010504025

SCREW - 4X25

$1.49

$

In Stock, Qty 10

0

18

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

19

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 17

0

20

Echo 13101110631

GASKET, FUEL TANK

$

$

Currently unavailable

21

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

22

Echo 13120005230

FILTER, FUEL
(Superseded to 13120002830)

$8.99

$

In Stock, Qty 20+

0

23

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

24

Echo 43721010231

PIPE - INNER
(Superseded to 43731010231)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

25

Echo 90072000012

O-RING - 12

$1.49

$

In Stock, only 2 left!

0

26

Echo 13201110630

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

27

Echo 13201203930

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

28

Echo 10025210630

CUSHION
(Superseded to Discontinued)

$

$

Not available

29

Echo 10025310630

STOPPER
(Superseded to Discontinued)

$

$

Not available

30

Echo 90010545025

SCREW - 5X25

$

$

Currently unavailable

31

Echo 90060540006

LOCKWASHER - 5

$

$

Currently unavailable

32

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available
