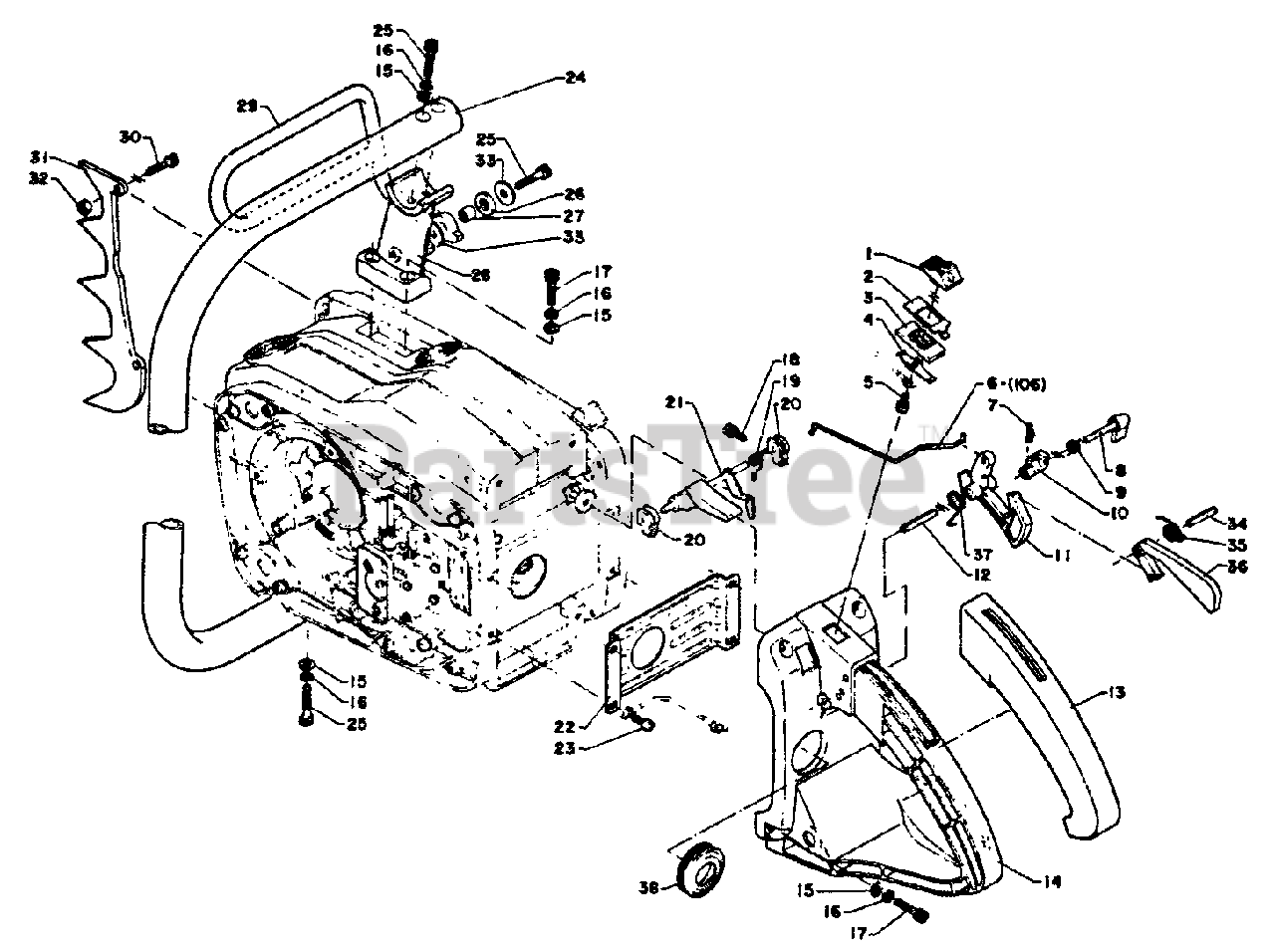

CS-1001 VL - Echo Chainsaw Handles Parts Diagram

Chainsaw

Handles Parts Diagram

  • Title

1

Echo 16341002830

KNOB, SWITCH
(Superseded to Discontinued)

$

$

Not available

2

Echo 16341302830

PLATE - GROUND

$1.49

$

Usually ships in 2-4 days

0

3

Echo 16341102830

GUIDE, SWITCH

$3.49

$

Usually ships in 2-4 days

0

4

Echo 16341200630

CONTACT, SWITCH

$1.49

$

Usually ships in 2-4 days

0

5

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

6

Echo 17801110631

ROD, THROTTLE

$

$

Currently unavailable

7

Echo 17804510630

PIN - LOCKING

$1.49

$

In Stock, Qty 5

0

8

Echo 17800803430

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 17801303430

SPRING, LOCKOUT LEVER

$1.49

$

Usually ships in 2-4 days

0

10

Echo 17801210631

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17801010631

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 90034050028

PIN - SPRING -- 5X28
(Superseded to Discontinued)

$

$

Not available

13

Echo 35101210631

COVER, HANDLE
(Superseded to Discontinued)

$

$

Not available

14

Echo 35101010631

HANDLE - RIGHT
(Superseded to Discontinued)

$

$

Not available

15

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

16

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

17

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

18

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

19

Echo 70701710630

Lever spring
(Superseded to Discontinued)

$

$

Not available

20

Echo 70711010630

BUSHING
(Superseded to Discontinued)

$

$

Not available

21

Echo 70700510632

LEVER, PUMP

$

$

Currently unavailable

22

Echo 10022610630

BRACKET
(Superseded to Discontinued)

$

$

Not available

23

Echo 90024104014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

24

Echo 35120510630

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

25

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 20+

0

26

Echo 35182810630

WASHER
(Superseded to Discontinued)

$

$

Not available

27

Echo 35182710630

GUARD
(Superseded to Discontinued)

$

$

Not available

28

Echo 35122510630

Left handle support
(Superseded to Discontinued)

$

$

Not available

29

Echo 35182610630

GUARD
(Superseded to Discontinued)

$

$

Not available

30

Echo 90010505015

SCREW - 5X15

$1.49

$

Usually ships in 2-4 days

0

31

Echo 88021010631

SPIKE
(Superseded to Discontinued)

$

$

Not available

32

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

33

Echo 30021700610

WASHER

$0.99

$

In Stock, Qty 20+

0

34

Echo 90034040025

PIN - SPRING -- 4X25

$

$

Currently unavailable

35

Echo 17809110630

SPRING, LOCKOUT LEVER
(Superseded to Discontinued)

$

$

Not available

36

Echo 17809010630

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

37

Echo 17804310630

SPRING, TRIGGER
(Superseded to Discontinued)

$

$

Not available

38

Echo 15901510630

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available
