CS-1001 VL - Echo Chainsaw Oiler And Decomp Parts Diagram

Model: CS-1001VL Engine: air-cooled, 2-cycle, cylinder Displacement: 6.08 cu in (55 x 42 mm) Revolution: counterclockwise (magneto side) Magneto: NGK BPM-7A Carburetor: Tillotson HS-180A or Walbro SDC-52 Fuel: gasoline + mobile oil 20:1 Cooling: forced air Starter: recoil or automatic Lubrication: Kioritz chain oil, centrifugal clutch Fuel tank: 1.08 L (2.33 pt) Oil tank: 0.44 L (0.95 pt) Chain: 0.404" pitch, 0.063" gauge, 80 links, 65 cm bar Weight: 10 kg dry (22.2 lb)

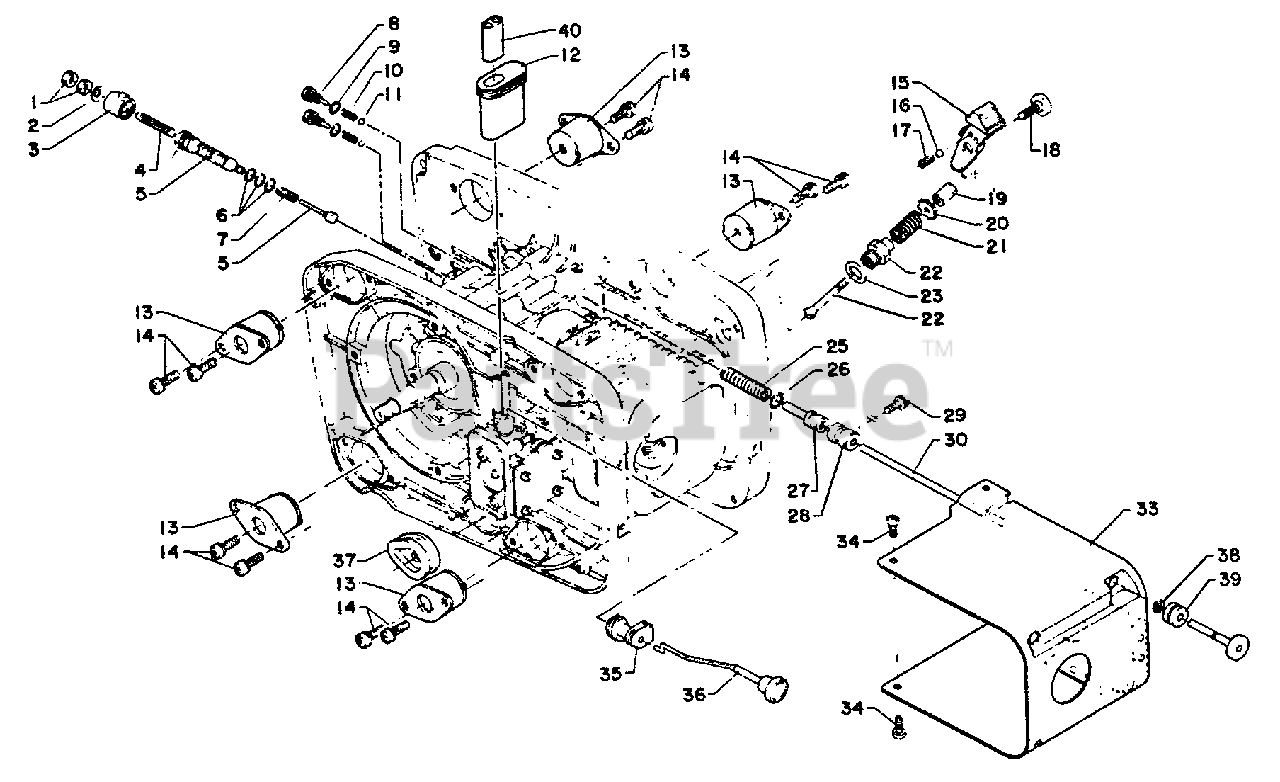

Oiler And Decomp Parts Diagram

  • Title

1

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

2

Echo 43703610630

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

3

Echo 43703910630

DIAL, AUTO-OILER
(Superseded to Discontinued)

$

$

Not available

4

Echo 43701610630

SCREW, ADJUST
(Superseded to Discontinued)

$

$

Not available

5

Echo 43700203431

PUMP KIT
(Superseded to 43700003430)

$

$

Not available

6

Echo 43702002830

O-RING

$2.49

$

In Stock, Qty 7

0

7

Echo 43701902830

SPRING

$1.49

$

In Stock, only 3 left!

0

8

Echo 43712110630

ADAPTER, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

9

Echo 43705602830

O-RING

$1.99

$

Usually ships in 2-4 days

0

10

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$1.49

$

In Stock, Qty 5

0

11

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, only 4 left!

0

12

Echo 12901010631

GROMMET

$

$

Currently unavailable

13

Echo 13190510630

CUSHION, RUBBER
(Superseded to Discontinued)

$

$

Not available

14

Echo 90024105012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

15

Echo 17980510631

LEVER, PRESSURE RELEASE
(Superseded to Discontinued)

$

$

Not available

16

Echo 43711700130

VALVE, BALL
(Superseded to Discontinued)

$

$

Not available

17

Echo 17981703630

SPRING

$0.99

$

Usually ships in 2-4 days

0

18

Echo 17981603630

SCREW, SET
(Superseded to Discontinued)

$

$

Not available

22

Echo 10110010630

DECOMPRESSION ASSY
(Superseded to Discontinued)

$

$

Not available

Echo 14551010630

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

Echo 14560610630

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

19

Echo 10111610630

NUT
(Superseded to Discontinued)

$

$

Not available

20

Echo 10111402831

WASHER

$2.49

$

Usually ships in 2-4 days

0

21

Echo 10111302830

SPRING

$1.49

$

Usually ships in 2-4 days

0

23

Echo 10111210630

VALVE SEAT PACKING
(Superseded to Discontinued)

$

$

Not available

25

Echo 43711100130

PUMP SPRING
(Superseded to Discontinued)

$

$

Not available

26

Echo 90072000006

O-RING 6 MM

$1.49

$

Usually ships in 2-4 days

0

27

Echo 43711210630

PISTON, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

28

Echo 43711510630

PUMP PISTON COVER
(Superseded to Discontinued)

$

$

Not available

29

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

30

Echo 70700610631

PUMP ROD

$

$

Currently unavailable

33

Echo 10150610630

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

34

Echo 90022044010

SCREW - 4×10

$

$

Currently unavailable

35

Echo 17881010630

GROMMET
(Superseded to Discontinued)

$

$

Not available

36

Echo 17851010632

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

37

Echo 13211510630

GROMMET
(Superseded to Discontinued)

$

$

Not available

38

Echo 90070000003

E-RING 3

$0.99

$

In Stock, Qty 9

0

39

Echo 70721010630

GROMMET
(Superseded to Discontinued)

$

$

Not available

40

Echo 12902610630

GUIDE
(Superseded to Discontinued)

$

$

Not available
