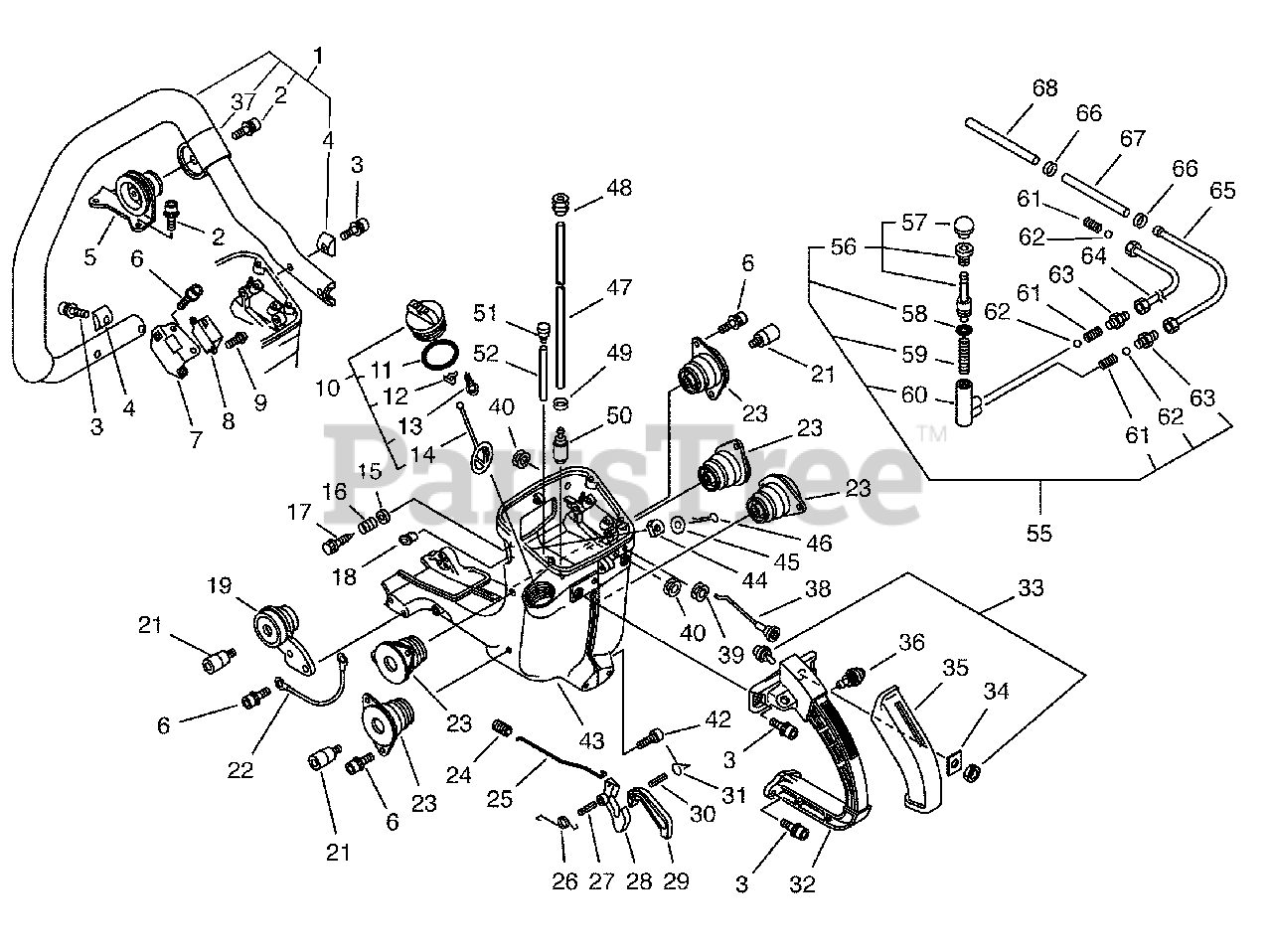

CS-1201 - Echo Chainsaw (Original Version) Handles, Fuel System, Throttle Control Parts Diagram

Chainsaw

Handles, Fuel System, Throttle Control Parts Diagram

  • Title

1

Echo 35160405260

HANDLE ASSY, FRONT

$110.99

$

Usually ships in 2-4 days

0

2

Echo 900162-06020

BOLT 6×20

$1.49

$

In Stock, only 4 left!

0

2

Echo 900162-06020

BOLT 6×20

$1.49

$

In Stock, only 4 left!

0

3

Echo 90016206025

BOLT 6×25

$1.99

$

Usually ships in 2-4 days

0

4

Echo 35161116430

WASHER

$7.49

$

Usually ships in 2-4 days

0

5

Echo 35160516430

CUSHION
(Superseded to Discontinued)

$

$

Not available

6

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

7

Echo 152615-60730

BRACKET, MODULE

$

$

Not available

8

Echo 152605-60730

MODULE

$198.99

$

Usually ships in 2-4 days

0

9

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

10

Echo 13100460730

CAP ASSY, FUEL

$17.99

$

Usually ships in 2-4 days

0

11

Echo 90072000032

O-RING 32

$2.99

$

Usually ships in 2-4 days

0

12

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

13

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

14

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, only 1 left!

0

15

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

16

Echo 12902014730

SPRING, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 12901314730

SCREW

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12901014730

GROMMET
(Superseded to Discontinued)

$

$

Not available

19

Echo 10091716430

CUSHION

$31.99

$

Usually ships in 2-4 days

0

21

Echo 10091516430

FASTENER, CUSHION

$4.49

$

Usually ships in 2-4 days

0

22

Echo 16201014732

LEAD - GROUND

$3.49

$

Usually ships in 2-4 days

0

23

Echo 10091016430

CUSHION
(Superseded to 10091016431)

$19.99

$

Usually ships in 2-4 days

0

24

Echo 17821105260

GROMMET
(Superseded to Discontinued)

$

$

Not available

25

Echo 17801116430

ROD, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

26

Echo 17804316430

SPRING, THROTTLE RETURN

$2.49

$

Usually ships in 2-4 days

0

27

Echo 90034250025

PIN, SPRING Ø5×25 MM

$1.99

$

In Stock, Qty 8

0

28

Echo 17801005260

CONTROL, THROTTLE
(Superseded to Discontinued)

$

$

Not available

29

Echo 17809016430

LOCKOUT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

30

Echo 90034240018

PIN, SPRING - 4×18
(Superseded to Discontinued)

$

$

Not available

31

Echo 17809116430

SPRING
(Superseded to Discontinued)

$

$

Not available

32

Echo 35111016431

HANDLE

$74.99

$

Usually ships in 2-4 days

0

33

Echo 16340019830

SWITCH, ON-OFF

$11.99

$

In Stock, only 2 left!

0

34

Echo 89015716430

LABEL, ON-OFF

$1.49

$

Usually ships in 2-4 days

0

35

Echo 35111116430

GRIP, REAR HANDLE
(Superseded to 35111116431)

$24.99

$

Usually ships in 2-4 days

0

36

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

37

Echo 35161305260

BRACKET, HANDLE

$29.99

$

Usually ships in 2-4 days

0

38

Echo 17851016430

ROD, CHOKE

$7.99

$

Usually ships in 2-4 days

0

39

Echo 17881002830

GROMMET, RUBBER

$0.99

$

Usually ships in 2-4 days

0

40

Echo 15611406330

BUSHING
(Superseded to Discontinued)

$

$

Not available

42

Echo 90010505014

BOLT 5×14

$1.49

$

In Stock, Qty 17

0

43

Echo 13100260732

TANK, FUEL

$322.99

$

Usually ships in 2-4 days

0

44

Echo 13141000330

PACKING
(Superseded to Discontinued)

$

$

Not available

45

Echo 90060000002

WASHER 2 MM

$

$

Not available

46

Echo 90030020015

PIN, COTTER
(Superseded to Discontinued)

$

$

Not available

47

Echo 13201005260

PIPE

$10.99

$

Usually ships in 2-4 days

0

48

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 11

0

49

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

50

Echo 13120519830

FILTER, FUEL
(Superseded to 13120519831)

$9.99

$

In Stock, Qty 20+

0

51

Echo 13130016430

VENT ASSY

$8.99

$

Usually ships in 2-4 days

0

52

Echo 13131216430

PIPE, VENT

$1.49

$

Usually ships in 2-4 days

0

55

Echo 43710016430

OIL PUMP ASSY

$61.99

$

Usually ships in 2-4 days

0

56

Echo 43710114730

PUMP PISTON

$14.99

$

Usually ships in 2-4 days

0

57

Echo 43711914731

PUSH BUTTON

$3.99

$

Usually ships in 2-4 days

0

58

Echo 90072000006

O-RING 6 MM

$1.49

$

In Stock, only 1 left!

0

59

Echo 43711100231

SPRING, OIL PUMP

$2.49

$

Usually ships in 2-4 days

0

60

Echo 43710216430

BODY, OIL PUMP

$47.99

$

Usually ships in 2-4 days

0

61

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$1.49

$

In Stock, Qty 5

0

61

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$1.49

$

In Stock, Qty 5

0

62

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 5

0

62

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 5

0

63

Echo 43705200330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

64

Echo 43720616430

PIPE

$26.99

$

Usually ships in 2-4 days

0

65

Echo 43720732930

PIPE

$21.99

$

Usually ships in 2-4 days

0

66

Echo 43722116430

CLIP

$1.49

$

Usually ships in 2-4 days

0

67

Echo 43721116431

PIPE

$0.99

$

In Stock, Qty 20+

0

68

Echo 43741216430

PROTECTOR, TUBE

$2.49

$

Usually ships in 2-4 days

0
