CS 16H42 B - Electrolux/AYP Lawn Tractor (1997)

Lawn Tractor

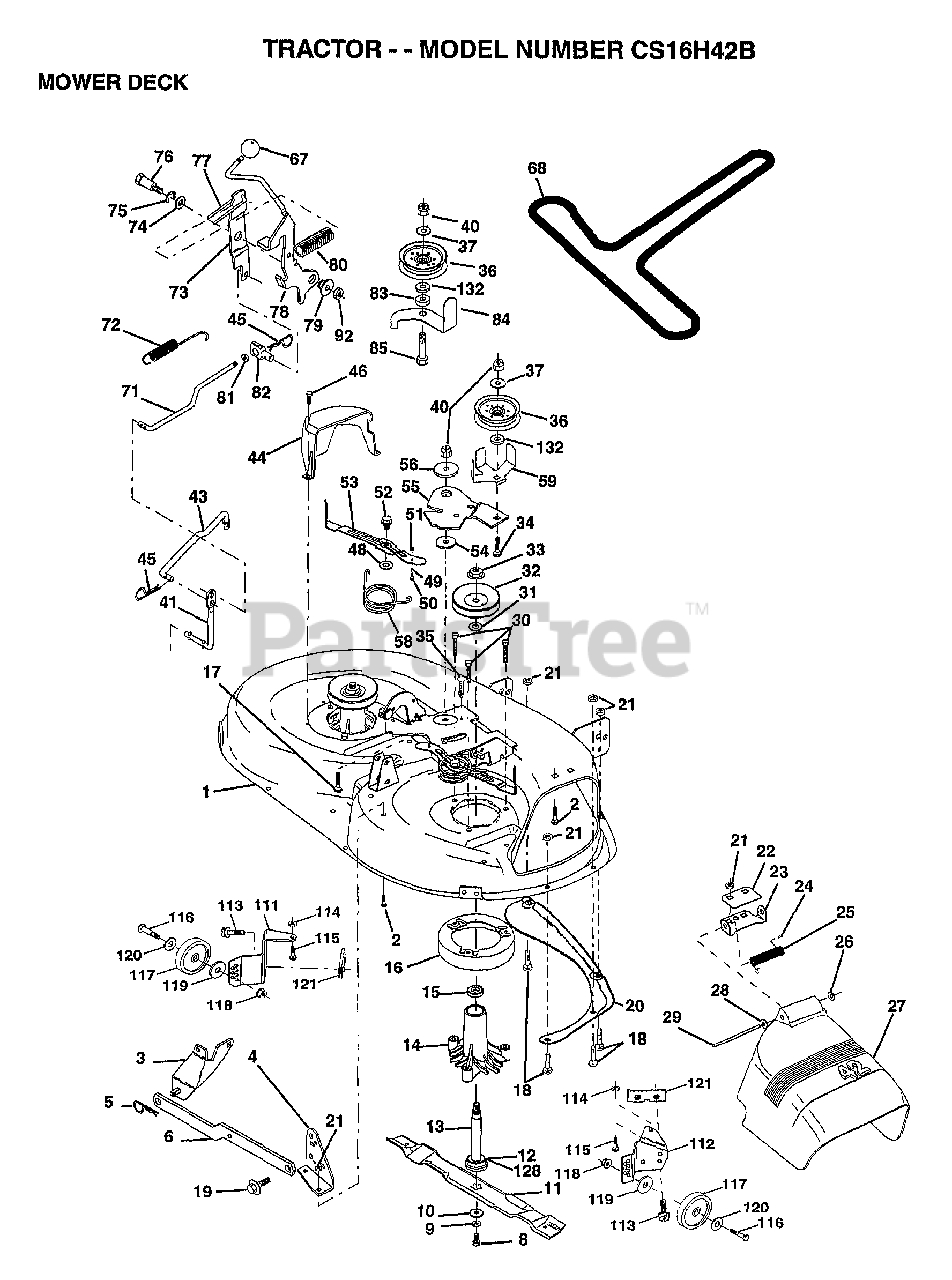

CS 16H42 B - Electrolux/AYP Lawn Tractor (1997) > Parts Diagrams (12) > MOWER DECK

  • Title
144393

1

DECK.WELD.42.

Part# 144393 (Superseded to 532144393)

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140506

2

BOLT

Part# 72140506 (Superseded to 872140506)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $1.67

138017

3

BRKT ASM SWAY BAR

Part# 138017 (Superseded to 532138017)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $8.93

138440

4

BRKT DECK SW BAR

Part# 138440 (Superseded to 532138440)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

4939M

5

SUB= 85902

Part# 4939M

OEM Warranty Repair Part for Murray

Not available

130832

6

SUB= 130833

Part# 130832 (Superseded to 532130832)

OEM Warranty Repair Part for Electrolux/AYP

Not available

850857

8

BLADE BOLT

Part# 850857 (Superseded to 532850857)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

10030600

9

SUB= 10040600

Part# 10030600 (Superseded to 810030600)

OEM Warranty Repair Part for Electrolux/AYP

Not available

140296

10

WASHER.HARD.BLADE

Part# 140296 (Superseded to 532140296)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

138498

11

"BLADE.42"" HIPERF"

Part# 138498

OEM Warranty Repair Part for Electrolux/AYP

Not available

129895

12

BEARING.BALL

Part# 129895 (Superseded to 532129895)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $7.82

137645

13

SUB= 137646

Part# 137645 (Superseded to 532137645)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $20.11

128774

14

HSG ASM MANDREL

Part# 128774 (Superseded to 532128774)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $25.70

110485X

15

BEARING

Part# 110485X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $8.93

140329

16

STRIPPER RND MWR

Part# 140329 (Superseded to 532128961)

OEM Warranty Repair Part for Electrolux/AYP

Not available

72110610

17

BOLT RDHD 3/8-16

Part# 72110610

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140505

18

BOLT

Part# 72140505

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

132827

19

BOLT SHD 5/16-18

Part# 132827 (Superseded to 532132827)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

136888

20

SUB= 918136888

Part# 136888 (Superseded to 532136888)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73680500

21

SUB= 73690500

Part# 73680500

OEM Warranty Repair Part for Murray

Not available

134753

22

STIFFENER BRKT

Part# 134753 (Superseded to 532134753)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $6.70

131267

23

DEFLECTOR BRKT

Part# 131267 (Superseded to 532131267)

OEM Warranty Repair Part for Electrolux/AYP

Not available

105304X

24

CAP-SLEEVE LT

Part# 105304X (Superseded to 532105304)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

123713X

25

SPRING TORSION

Part# 123713X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.58

110452X

26

NUT PUSH M

Part# 110452X (Superseded to 532110452)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.76

130968

27

DEFLECTOR.SHIELD

Part# 130968 (Superseded to 532130968)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $25.70

19111016

28

WASHER

Part# 19111016 (Superseded to 819111016)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

131491

29

HINGE ROD

Part# 131491 (Superseded to 532131491)

OEM Warranty Repair Part for Electrolux/AYP

Not available

157722

30

"SCREW-THD ROLL,WA"

Part# 157722 (Superseded to 532157722)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.23

129963

31

WASHER

Part# 129963 (Superseded to 532129963)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

153535

32

PULLEY.MANDREL.42

Part# 153535

OEM Warranty Repair Part for Murray

Not available

137266

33

SUB= 139729

Part# 137266 (Superseded to 532137266)

OEM Warranty Repair Part for Electrolux/AYP

Not available

72110614

34

BOLT

Part# 72110614 (Superseded to 872110614)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

133835

35

XMAS TREE FASTNER

Part# 133835 (Superseded to 532133835)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

131494

36

FLAT IDLER PULLEY

Part# 131494 (Superseded to 532104360)

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131316

37

WASHER

Part# 19131316 (Superseded to 819131316)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

73680600

40

SUB= 73690600

Part# 73680600 (Superseded to 873680600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

133551

41

PIVOT ROD

Part# 133551 (Superseded to 532133551)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

140083

43

ROD CLUTCH W/NIBS

Part# 140083 (Superseded to 532140083)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $8.93

140088

44

GUARD MAND LH BLK

Part# 140088

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $16.76

4497H

45

RETAINER M

Part# 4497H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

137729

46

SCREW.1/4-20X5/8

Part# 137729 (Superseded to 532137729)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.78

133944

48

HARD SMALL WASHER

Part# 133944 (Superseded to 532133944)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

155066

49

ROLLER ASM-CAM

Part# 155066 (Superseded to 532155066)

OEM Warranty Repair Part for Electrolux/AYP

Not available

131340

50

SHOULDER BOLT

Part# 131340 (Superseded to 532131340)

OEM Warranty Repair Part for Electrolux/AYP

Not available

69180

51

LOCKNUT

Part# 69180 (Superseded to 532069180)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

139888

52

BOLT.SHLD.5/16-18

Part# 139888

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

131845X900

53

SUB= 131845

Part# 131845X900

OEM Warranty Repair Part for Electrolux/AYP

Not available

133943

54

HARDENED WASHER

Part# 133943 (Superseded to 532133943)

OEM Warranty Repair Part for Electrolux/AYP

Not available

155046

55

ARM-IDLER

Part# 155046

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $8.93

122052X

56

SPACER RETAINER

Part# 122052X (Superseded to 532122052)

OEM Warranty Repair Part for Electrolux/AYP

Not available

140086

58

SPRING TORSN BRAK

Part# 140086 (Superseded to 532140086)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

141043

59

GUARD IDLER TUV

Part# 141043 (Superseded to 532141043)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

106932X

67

KNOB T(3/8 HOLE)

Part# 106932X (Superseded to 532106932)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

144200

68

BELT.V.T-PATH

Part# 144200 (Superseded to 532144200)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $34.65

142427

71

ROD CLUTCH 38/42

Part# 142427 (Superseded to 532142427)

OEM Warranty Repair Part for Electrolux/AYP

Not available

131870

72

RETURN SPRING

Part# 131870 (Superseded to 532131870)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $19.25

127847

73

CLUTCH ARM SECOND

Part# 127847 (Superseded to 532127847)

OEM Warranty Repair Part for Electrolux/AYP

Not available

121748X

74

WASHER

Part# 121748X (Superseded to 532121748)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

12000029

75

RING

Part# 12000029 (Superseded to 812000029)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

128903

76

SHOULDER BOLT

Part# 128903 (Superseded to 532128903)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

127845

77

SPRING KEEPER

Part# 127845 (Superseded to 532127845)

OEM Warranty Repair Part for Electrolux/AYP

Not available

154809

78

LEVER ASM-CLUTCH

Part# 154809 (Superseded to 532154809)

OEM Warranty Repair Part for Electrolux/AYP

Not available

127498

79

BUSHING

Part# 127498 (Superseded to 532127498)

OEM Warranty Repair Part for Electrolux/AYP

Not available

153701

80

SPRING.CLUTCH.MWR

Part# 153701 (Superseded to 532153701)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $5.58

142028

81

TRUNION ADJ

Part# 142028

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

73350600

82

NUT

Part# 73350600

OEM Warranty Repair Part for Electrolux/AYP

Not available

120958X

83

WASHER

Part# 120958X (Superseded to 532120958)

OEM Warranty Repair Part for Electrolux/AYP

Not available

156084

84

"KEEPER-BELT,FIXED"

Part# 156084 (Superseded to 532156084)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

72140618

85

BOLT RDHD 3/8-16

Part# 72140618 (Superseded to 872140618)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73800600

92

NUT

Part# 73800600

OEM Warranty Repair Part for Electrolux/AYP

Not available

155197

111

BRACKET.GWHL.LH.

Part# 155197

OEM Warranty Repair Part for Electrolux/AYP

Not available

155198

112

BRACKET.GWHL.RH.

Part# 155198

OEM Warranty Repair Part for Electrolux/AYP

Not available

17490512

113

SCREW

Part# 17490512 (Superseded to 817490512)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

73510500

114

NUT

Part# 73510500

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.25

72110504

115

SUB= 872110504

Part# 72110504 (Superseded to 872110504)

OEM Warranty Repair Part for Electrolux/AYP

Not available

4898H

116

BOLT M

Part# 4898H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.76

105455X

117

WHEEL.GAGE.BLK.PL

Part# 105455X (Superseded to 532105455)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $13.41

73930600

118

LOCKNUT

Part# 73930600

OEM Warranty Repair Part for Electrolux/AYP

Not available

19121414

119

WASHER

Part# 19121414 (Superseded to 819121414)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.03

19171512

120

WASHER

Part# 19171512 (Superseded to 819171512)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

143723

121

BRACKET.EXTRD.GWL

Part# 143723 (Superseded to 532143723)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $8.93

153390

128

WASHER.FELT.

Part# 153390 (Superseded to 532153390)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

19132203

132

WASHER GT

Part# 19132203 (Superseded to 819132203)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

130794

MANDREL ASM

Part# 130794 (Superseded to 532130794)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $44.66

144783

SUB= 164962

Part# 144783

OEM Warranty Repair Part for Electrolux/AYP

Not available
