CS 16H42 B - Electrolux/AYP Lawn Tractor (1997)

Lawn Tractor

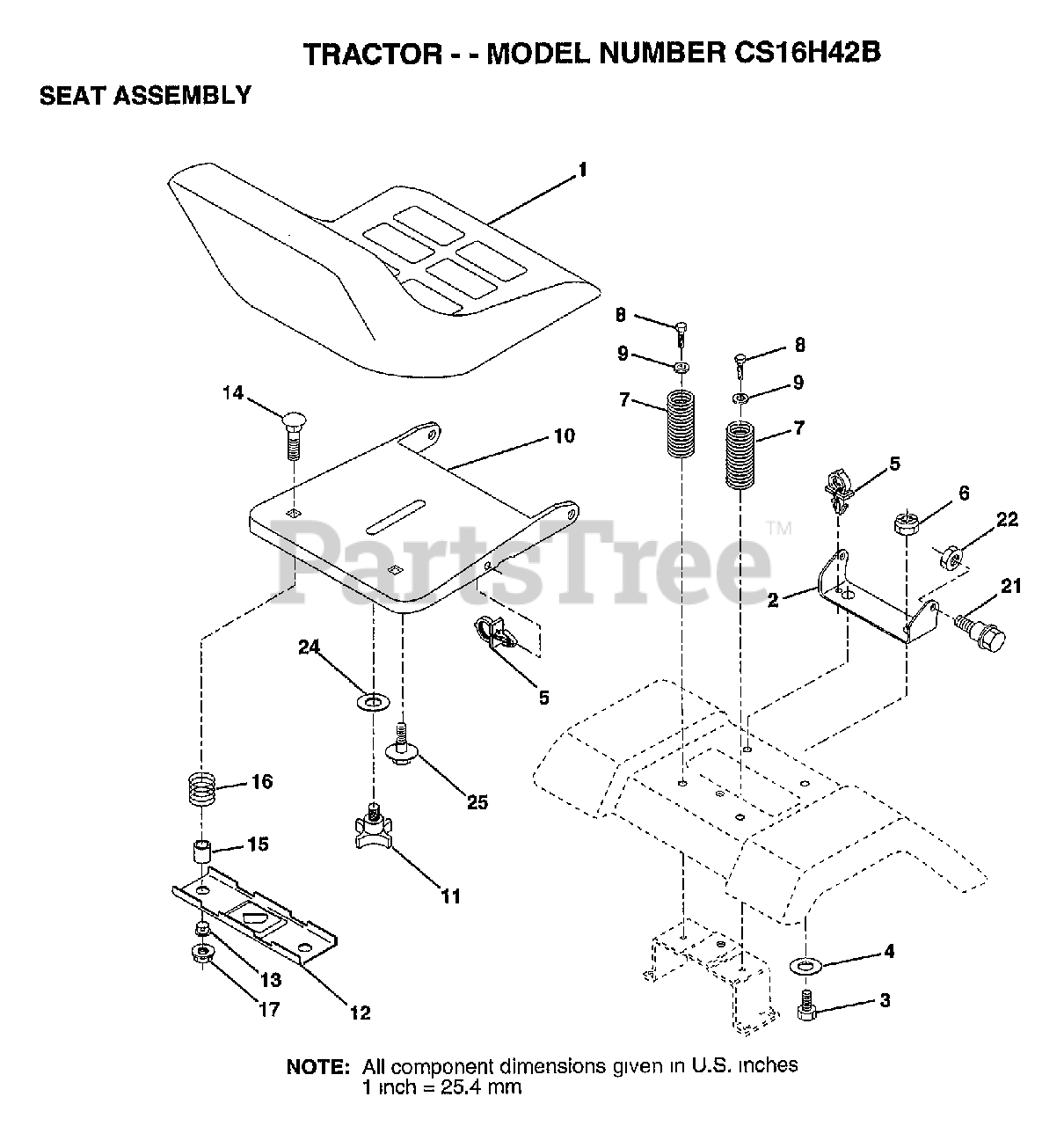

CS 16H42 B - Electrolux/AYP Lawn Tractor (1997) > Parts Diagrams (12) > SEAT ASSEMBLY

  • Title
127428

1

SUB= 140119

Part# 127428 (Superseded to 532127428)

OEM Warranty Repair Part for Electrolux/AYP

Not available

140551

2

BRACKET PVT SEAT

Part# 140551

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

74760616

3

BOLT

Part# 74760616

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131610

4

WASHER PM

Part# 19131610 (Superseded to 819131610)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

145006

5

CLIP.PUSH-IN.HING

Part# 145006 (Superseded to 532145006)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

73800600

6

NUT

Part# 73800600

OEM Warranty Repair Part for Electrolux/AYP

Not available

124181X

7

SPRING COMPRESSIO

Part# 124181X (Superseded to 532124181)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

17490616

8

SCREW GTV

Part# 17490616 (Superseded to 817490616)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

19131614

9

WASHER

Part# 19131614

OEM Warranty Repair Part for Murray

Not available

155925

10

PAN-SEAT

Part# 155925 (Superseded to 532155925)

OEM Warranty Repair Part for Electrolux/AYP

Not available

120068X

11

"KNOB 1/2"" YT"

Part# 120068X (Superseded to 532120068)

OEM Warranty Repair Part for Electrolux/AYP

Not available

121246X

12

BRKT SWITCH

Part# 121246X (Superseded to 532121246)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

121248X

13

BUSHING

Part# 121248X (Superseded to 532121248)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

72050411

14

SUB= 872050411

Part# 72050411

OEM Warranty Repair Part for Electrolux/AYP

Not available

134300

15

SPLIT SPACER

Part# 134300 (Superseded to 532134300)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

121250X

16

SPRING

Part# 121250X (Superseded to 532121250)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

123976X

17

SUB= 73900400

Part# 123976X

OEM Warranty Repair Part for Electrolux/AYP

Not available

153236

21

"BOLT,SHOULDER"

Part# 153236 (Superseded to 532153236)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73800500

22

NUT

Part# 73800500 (Superseded to 873800500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

19171912

24

WASHER

Part# 19171912 (Superseded to 819171912)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

127018X

25

"BOLT,SHOULDER"

Part# 127018X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

10040800

26

LOCKWASHER

Part# 10040800 (Superseded to 810040800)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46
