CS 2040 - Jonsered Chainsaw (2003-01) CARBURETOR DETAILS Parts Diagram

Chainsaw

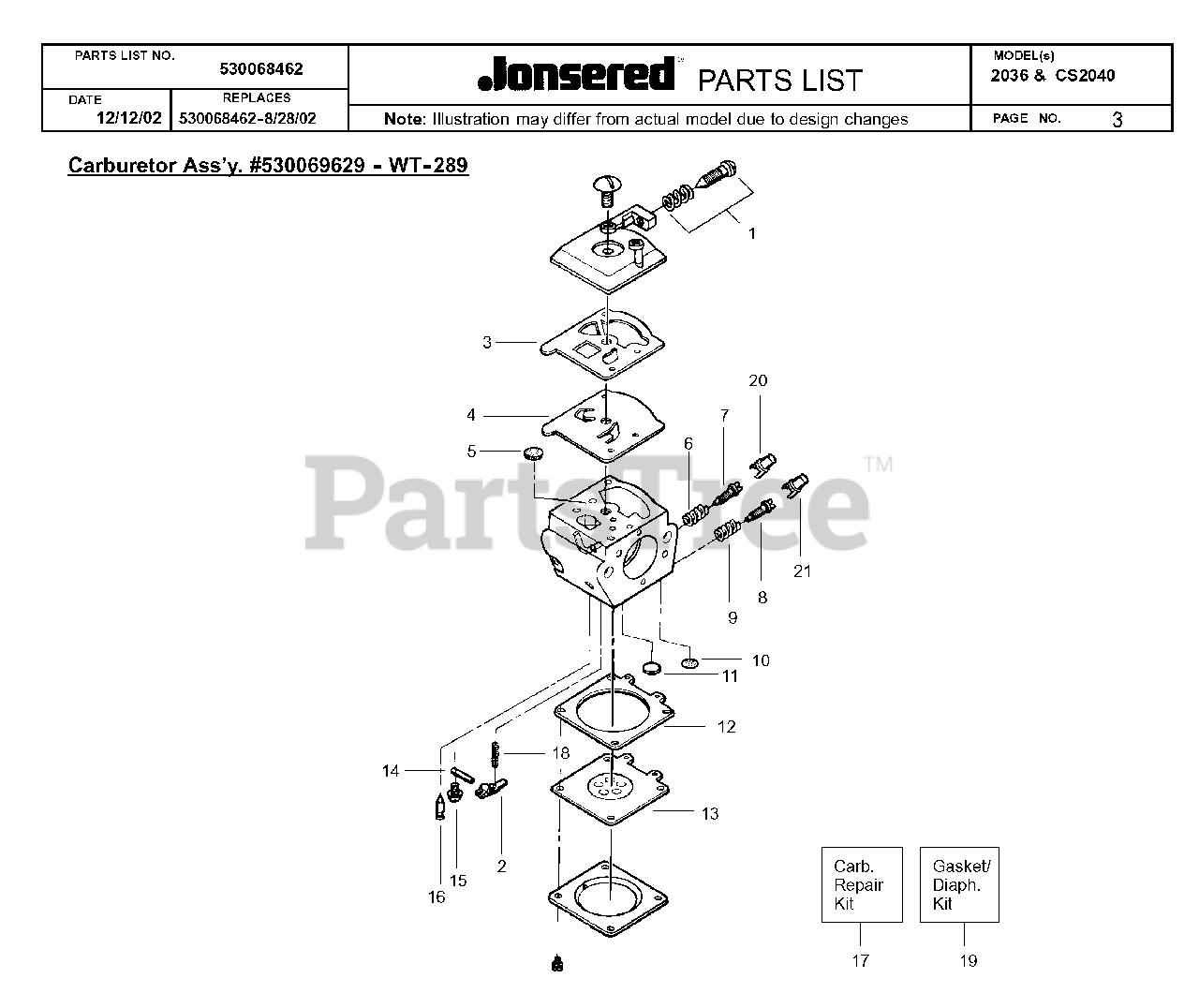

CARBURETOR DETAILS Parts Diagram

  • Title

1

Jonsered 530035296

IDLE ADV SCREW KIT

$10.99

$

Usually ships in 3-10 days

0

2

Jonsered 530035031

LEVER
(Superseded to 505520127)

$

$

Not available

3

Jonsered 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

4

Jonsered 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$6.49

$

In Stock, Qty 10

0

5

Jonsered 507432582

FILTER SCREEN
(Superseded to 530035249)

$6.99

$

Usually ships in 3-10 days

0

6

Jonsered 530035293

NEEDLE SPRING

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 530035293

NEEDLE SPRING

$4.99

$

Usually ships in 3-10 days

0

530035281

Jonsered 530035281

LOW SPEED NEEDLE

$9.99

$

In Stock, only 1 left!

0

530035383

Jonsered 530035383

LOW SPEED NEEDLE

$

$

Not available

8

Jonsered 530035383

LOW SPEED NEEDLE

$

$

Not available

530035294

Jonsered 530035294

No Description Available

$

$

Not available

530035384

Jonsered 530035384

NEEDLE HIGH SPEED

$7.49

$

Usually ships in 3-10 days

0

9

Jonsered 530035295

NEEDLE SPRING

$3.99

$

In Stock, only 1 left!

0

10

Jonsered 530035162

WELCH PLUG

$

$

Not available

11

Jonsered 530035225

CUP PLUG

$3.99

$

Usually ships in 3-10 days

0

12

Jonsered 530035165

No Description Available

$

$

Not available

13

Jonsered 530035014

DIAPHRAGM
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

14

Jonsered 530035028

PIN
(Superseded to 505520125)

$3.49

$

In Stock, only 3 left!

0

15

Jonsered 530035016

SCREW

$3.49

$

In Stock, Qty 6

0

16

Jonsered 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$

$

Not available

17

Jonsered 530069826

CARB REPAIR KIT

$34.99

$

In Stock, only 4 left!

0

18

Jonsered 530035188

No Description Available

$4.99

$

In Stock, Qty 11

0

19

Jonsered 530069844

GASKET/DIAPHRAGM KIT

$18.99

$

Usually ships in 3-10 days

0

20

Jonsered 530038478

LIMITER CAP-LOW

$3.99

$

In Stock, Qty 19

0

21

Jonsered 530038479

LIMITER CAP-HIGH

$3.99

$

Usually ships in 3-10 days

0

530031157

Jonsered 530031157

LIMITER CAP REMOVAL TOOL
(Superseded to 540068201)

$12.99

$

Usually ships in 3-10 days

0

530031160

Jonsered 530031160

INSERT TOOL

$21.99

$

Usually ships in 3-10 days

0
