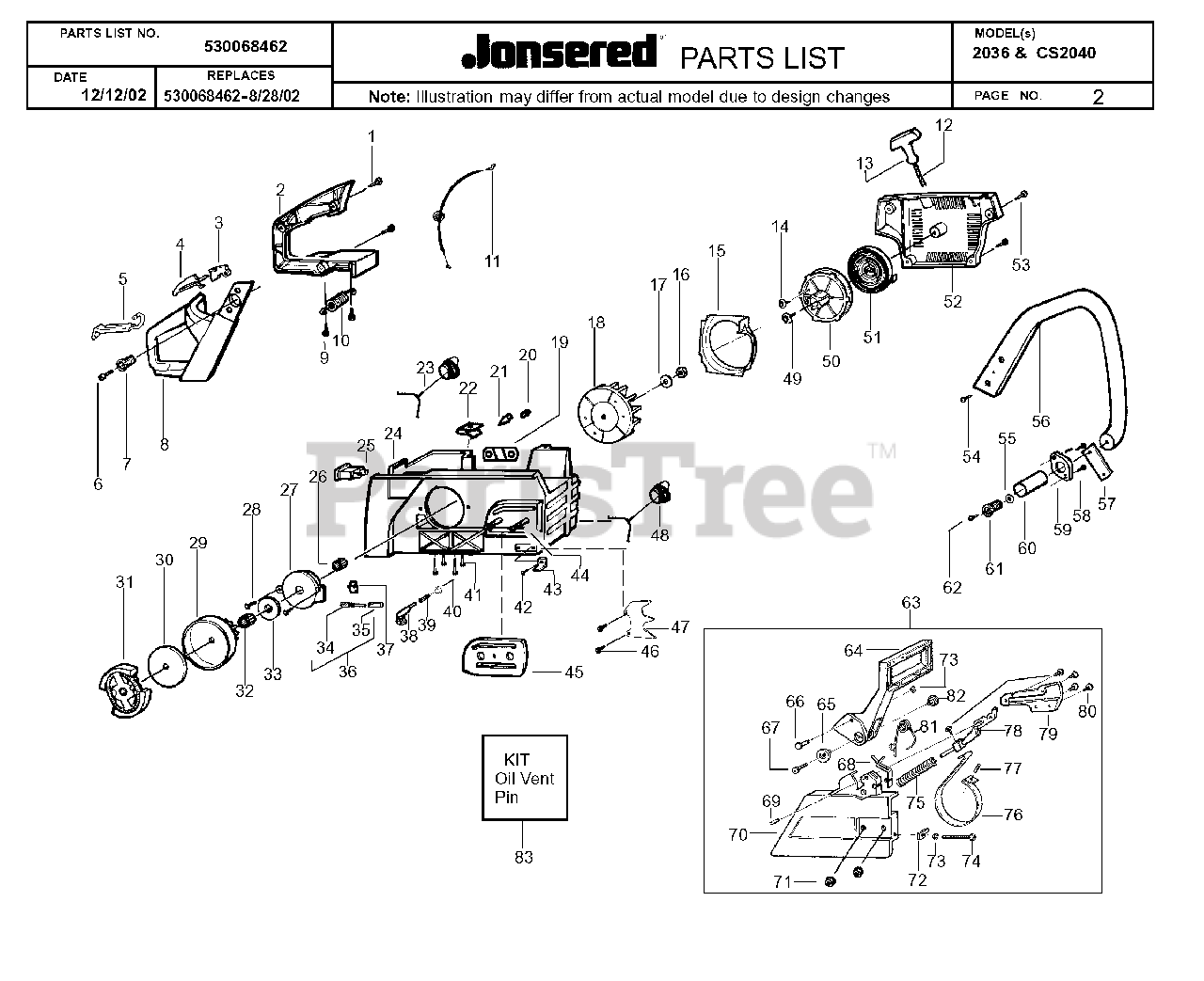

CS 2040 - Jonsered Chainsaw (2003-01) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

1

Jonsered 530015957

SCREW

$4.99

$

In Stock, Qty 7

0

2

Jonsered 530036491

HANDLE
(Superseded to 530071272)

$

$

Not available

3

Jonsered 530036097

THROTTLE TRIGGER

$4.99

$

In Stock, only 3 left!

0

4

Jonsered 530036098

THROTTLE LOCK

$

$

Not available

5

Jonsered 530053443

CHOKE LEVER

$

$

Not available

6

Jonsered 530015937

SCREW

$6.49

$

Usually ships in 3-10 days

0

7

Jonsered 530038985

SPRING

$4.99

$

Usually ships in 3-10 days

0

8

Jonsered 530036130

HANDLE
(Superseded to 530071272)

$

$

Not available

9

Jonsered 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, Qty 6

0

10

Jonsered 530038986

SPRING

$

$

Not available

11

Jonsered 530038471

THROTTLE WIRE

$

$

Not available

12

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

13

Jonsered 530037357

HANDLE

$

$

Not available

14

Jonsered 530016080

SCREW

$6.49

$

In Stock, Qty 10

0

15

Jonsered 530037457

AIR CONDUCTOR

$

$

Not available

16

Jonsered 530016134

NUT-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 530015127

WASHER-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 530039147

ROTOR COMPL. 36/41
(Superseded to 575635502)

$17.99

$

In Stock, Qty 7

0

19

Jonsered 530036043

PLATE,BAR MOUNT

$5.99

$

In Stock, only 4 left!

0

20

Jonsered 530029868

VENT,FUEL TANK 36/41

$6.49

$

In Stock, Qty 12

0

21

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 13

0

22

Jonsered 530015922

CLIP

$6.49

$

In Stock, Qty 5

0

23

Jonsered 530010845

FUEL CAP CPL

$

$

Not available

24

Jonsered 530054578

No Description Available

$

$

Not available

25

Jonsered 530069572

SWITCH

$8.99

$

In Stock, only 3 left!

0

26

Jonsered 530029833

OILER GEAR 36/41

$8.99

$

In Stock, Qty 14

0

27

Jonsered 530029835

OIL PUMP HOUSING
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

28

Jonsered 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

29

Jonsered 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

530047061

Jonsered 530047061

CLUTCH DRUM ASSY

$17.99

$

In Stock, Qty 20+

0

530069342

Jonsered 530069342

SPUR SPRKT .325 7T 36/41

$40.99

$

In Stock, Qty 11

0

30

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, Qty 20+

0

31

Jonsered 530014949

CLUTCH ASSEMBLY

$13.99

$

In Stock, Qty 16

0

32

Jonsered 530032119

NEEDLE BEARINGS 36/41

$9.99

$

In Stock, Qty 9

0

33

Jonsered 530015907

DUST COVER 36/41

$

$

Not available

34

Jonsered 530029838

PLUNGER & GEAR ASSEMBLY
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

35

Jonsered 530029834

OIL PUMP BARREL
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

36

Jonsered 530014410

OILER ASS'Y 36/41
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

37

Jonsered 530019174

PRESSURE SEAL,OILER 36/41
(Superseded to 545037101)

$10.99

$

In Stock, Qty 20+

0

38

Jonsered 530037057

OIL PICK-UP
(Superseded to 545047801)

$6.49

$

In Stock, Qty 12

0

39

Jonsered 530037821

FILTER
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 530030189

PLUG
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 530016037

SCREW M5-0.8X35M TAP

$

$

Not available

42

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

43

Jonsered 530029850

CHAIN CATCHER 36/41

$6.49

$

In Stock, Qty 19

0

44

Jonsered 530015877

BAR BOLT 36/41

$7.49

$

In Stock, only 1 left!

0

45

Jonsered 530047855

BAR PLATE

$

$

Not available

46

Jonsered 530015805

SCREW-10-16 X 1/2, TYPE 2
(Superseded to 530015886)

$6.49

$

In Stock, Qty 15

0

47

Jonsered 530014381

SPIKE 36/41

$9.99

$

In Stock, Qty 16

0

48

Jonsered 530010846

OIL TANK CAP
(Superseded to 530057236)

$

$

Not available

49

Jonsered 530015920

SCREW

$6.49

$

In Stock, Qty 8

0

50

Jonsered 530069313

PULLEY 36/41

$7.49

$

Usually ships in 3-10 days

0

51

Jonsered 530015891

RETURN SPRING
(Superseded to 545008005)

$

$

Not available

52

Jonsered 530054547

STARTER DEVICE

$

$

Not available

53

Jonsered 530015892

SCREW,STRTR CVR 36/41

$6.49

$

In Stock, Qty 20+

0

54

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

55

Jonsered 530015123

WASHER

$4.99

$

In Stock, only 4 left!

0

56

Jonsered 530038327

%HANDLE
(Superseded to 530053955)

$15.99

$

Usually ships in 3-10 days

0

57

Jonsered 530036113

STRAP

$6.49

$

In Stock, only 1 left!

0

58

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

59

Jonsered 530036101

PLATE

$

$

Not available

60

Jonsered 530036142

SLEEVE

$

$

Not available

61

Jonsered 530038985

SPRING

$4.99

$

Usually ships in 3-10 days

0

62

Jonsered 530015984

BOLT

$2.49

$

Usually ships in 3-10 days

0

63

Jonsered 530054871

CHAIN BRAKE JONS RED

$

$

Not available

64

Jonsered 506158601

HANDGUARD

$

$

Not available

65

Jonsered 530056531

JOURNAL, RIGHT

$4.99

$

Usually ships in 3-10 days

0

66

Jonsered 530029879

PIVOT PIN

$4.99

$

In Stock, only 2 left!

0

67

Jonsered 530016384

SCREW

$3.49

$

Usually ships in 3-10 days

0

68

Jonsered 530029878

SPRING-POSITION

$6.49

$

In Stock, Qty 10

0

69

Jonsered 530015915

PIN

$

$

Not available

70

Jonsered 530053666

COVER
(Superseded to 530054871)

$

$

Not available

71

Jonsered 530015917

BAR NUT

$3.99

$

In Stock, Qty 20+

0

72

Jonsered 530015826

ADJUST PIN,BAR 36/41

$4.99

$

In Stock, Qty 20+

0

73

Jonsered 530038593

RETAINER

$4.99

$

In Stock, Qty 20+

0

74

Jonsered 530069611

RETAINER

$4.99

$

In Stock, Qty 20+

0

75

Jonsered 530016237

%COMPRESSION SPRING
(Superseded to 545137301)

$8.99

$

Usually ships in 3-10 days

0

76

Jonsered 530052232

BRAKE BAND
(Superseded to 545137401)

$7.49

$

In Stock, Qty 14

0

77

Jonsered 530015913

PIN

$4.99

$

In Stock, Qty 6

0

78

Jonsered 530054741

KNEE LINK

$6.49

$

Usually ships in 3-10 days

0

79

Jonsered 530053129

No Description Available

$

$

Not available

80

Jonsered 530015911

SCREW
(Superseded to 574780301)

$7.49

$

In Stock, only 1 left!

0

81

Jonsered 506164801

SPRING

$8.99

$

In Stock, only 1 left!

0

82

Jonsered 530029881

SHAFT PIVOT

$3.99

$

In Stock, only 1 left!

0

83

Jonsered 530069583

No Description Available

$

$

Not available
