CS 2137 - Jonsered Chainsaw (2004-05) CYLINDER PISTON MUFFLER Parts Diagram

Chainsaw

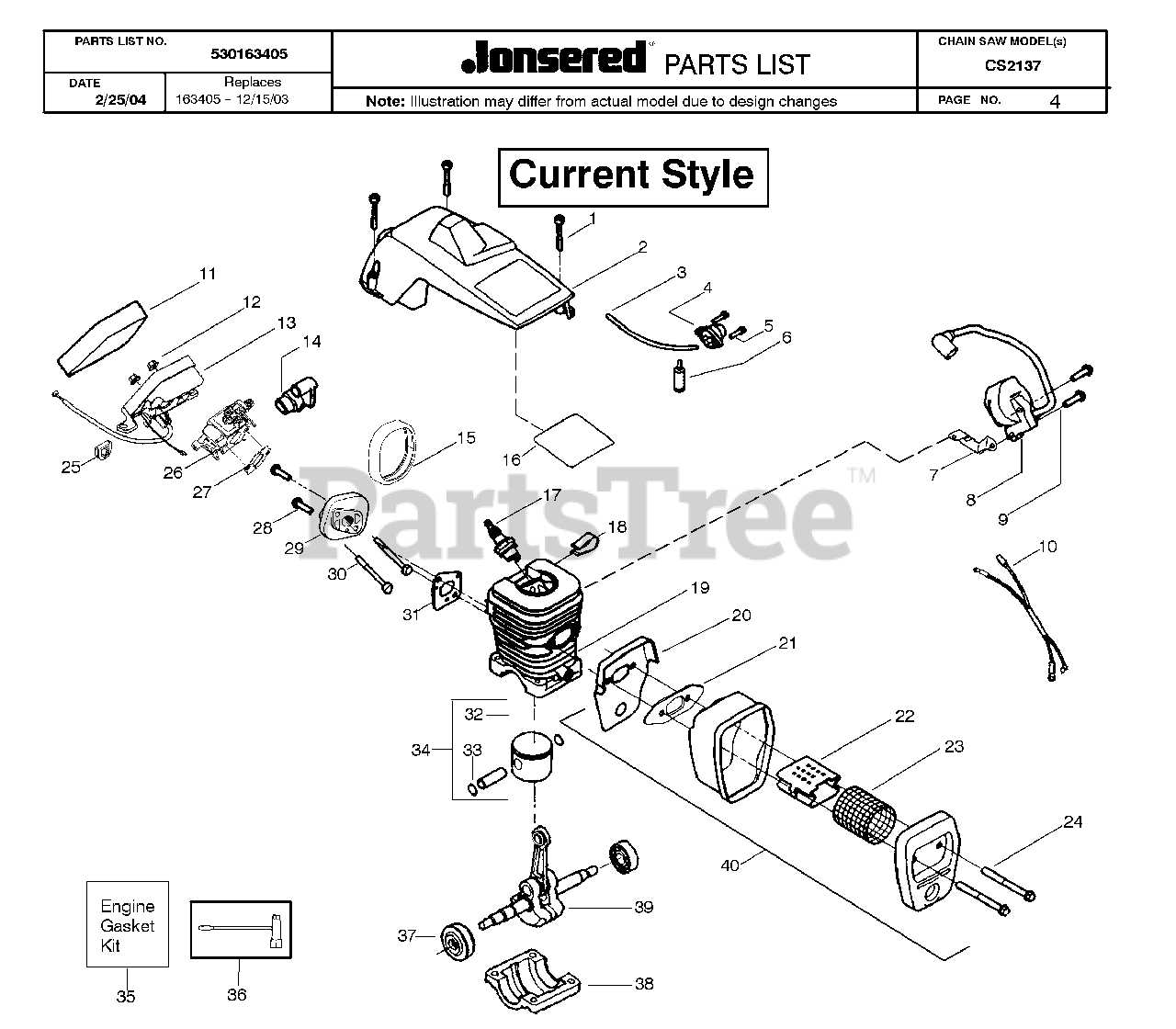

CYLINDER PISTON MUFFLER Parts Diagram

  • Title

1

Jonsered 530016153

SCREW

$6.49

$

In Stock, Qty 15

0

2

Jonsered 530056914

CYL SHIELD ASSY

$24.99

$

Usually ships in 3-10 days

0

3

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

4

Jonsered 530047213

No Description Available
(Superseded to 530071835)

$8.99

$

In Stock, Qty 20+

0

5

Jonsered 530015780

No Description Available

$6.49

$

In Stock, only 3 left!

0

6

Jonsered 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

7

Jonsered 530047442

GROUND STRAP

$3.99

$

Usually ships in 3-10 days

0

8

Jonsered 530039198

No Description Available

$47.99

$

In Stock, only 4 left!

0

9

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

10

Jonsered 530057475

WIRE HARNESS ASSY

$8.49

$

Usually ships in 3-10 days

0

11

Jonsered 530037793

AIR FILTER

$4.99

$

In Stock, Qty 20+

0

12

Jonsered 530016101

NUT

$6.49

$

In Stock, Qty 8

0

14

Jonsered 530035526

GROMMET-CARB ADJUST

$

$

Not available

15

Jonsered 530054144

SEAL

$

$

Not available

16

Jonsered 530055698

No Description Available

$3.99

$

In Stock, only 1 left!

0

17

Jonsered 952030150

SPARK PLUG (RCJ-7Y)
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

18

Jonsered 530016136

No Description Available

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 530012550

CYLINDER

$31.99

$

Usually ships in 3-10 days

0

20

Jonsered 530049870

PLATE

$6.49

$

Usually ships in 3-10 days

0

21

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

22

Jonsered 530037813

FLAME PROTECTION

$4.99

$

In Stock, only 2 left!

0

23

Jonsered 530036103

SCREEN

$

$

Not available

24

Jonsered 530016132

BOLT

$6.49

$

In Stock, Qty 10

0

25

Jonsered 530047631

GROMMET

$2.49

$

In Stock, only 2 left!

0

530071820

Jonsered 530071820

CARBURETOR
(Superseded to 545081885)

$34.99

$

In Stock, Qty 11

0

27

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

28

Jonsered 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

29

Jonsered 530049700

PARTITION

$7.49

$

In Stock, only 2 left!

0

30

Jonsered 530016187

SCREW

$6.49

$

Usually ships in 3-10 days

0

31

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

32

Jonsered 530038729

RING-PISTON
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

33

Jonsered 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

34

Jonsered 530071408

PISTON

$

$

Not available

35

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

36

Jonsered 530031135

SCRENCH
(Superseded to 530031163)

$9.99

$

In Stock, Qty 17

0

37

Jonsered 530056363

BEARING & SEAL ASSEMBLY

$18.99

$

In Stock, Qty 7

0

38

Jonsered 530037935

COVER

$10.99

$

Usually ships in 3-10 days

0

39

Jonsered 530047062

CRANKSHAFT
(Superseded to 545113101)

$72.99

$

Usually ships in 3-10 days

0

40

Jonsered 530047207

MUFFLER
(Superseded to 530071904)

$

$

Not available
