CS 2137 - Jonsered Chainsaw (2005-01) CYLINDER PISTON MUFFLER Parts Diagram

Chainsaw

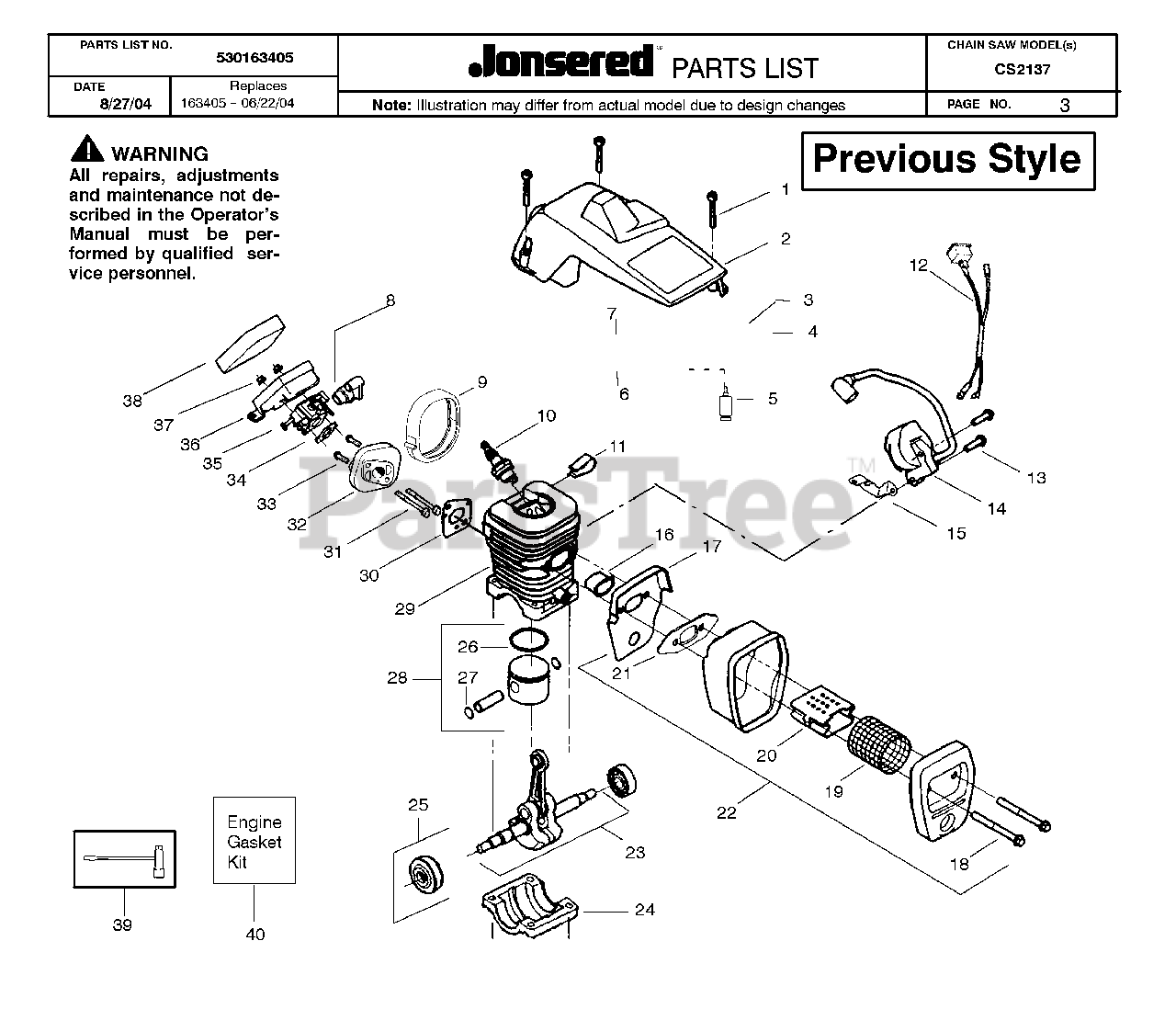

CYLINDER PISTON MUFFLER Parts Diagram

  • Title

1

Jonsered 530016153

SCREW

$6.49

$

In Stock, Qty 15

0

2

Jonsered 530056914

CYL SHIELD ASSY

$24.99

$

Usually ships in 3-10 days

0

3

Jonsered 530047213

No Description Available
(Superseded to 530071835)

$8.99

$

In Stock, Qty 20+

0

4

Jonsered 530015780

No Description Available

$6.49

$

In Stock, only 3 left!

0

5

Jonsered 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

6

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

7

Jonsered 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0

8

Jonsered 530035526

GROMMET-CARB ADJUST

$

$

Not available

9

Jonsered 530054144

SEAL

$

$

Not available

10

Jonsered 952030150

SPARK PLUG (RCJ-7Y)
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

11

Jonsered 530016136

No Description Available

$3.99

$

Usually ships in 3-10 days

0

12

Jonsered 530049117

WIRE HARNESS ASS'Y

$

$

Not available

13

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

14

Jonsered 530039167

MODULE-IGNITION
(Superseded to 530071905)

$66.99

$

In Stock, only 4 left!

0

15

Jonsered 530047442

GROUND STRAP

$3.99

$

Usually ships in 3-10 days

0

16

Jonsered 530037652

HEAT INSULATOR

$

$

Not available

17

Jonsered 530049870

PLATE

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 530016132

BOLT

$6.49

$

In Stock, Qty 10

0

19

Jonsered 530036103

SCREEN

$

$

Not available

20

Jonsered 530037813

FLAME PROTECTION

$4.99

$

In Stock, only 2 left!

0

21

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

22

Jonsered 530047207

MUFFLER
(Superseded to 530071904)

$

$

Not available

23

Jonsered 530047062

CRANKSHAFT
(Superseded to 545113101)

$72.99

$

Usually ships in 3-10 days

0

24

Jonsered 530037935

COVER

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 530056363

BEARING & SEAL ASSEMBLY

$18.99

$

In Stock, Qty 7

0

26

Jonsered 530038729

RING-PISTON
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

27

Jonsered 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

28

Jonsered 530071408

PISTON

$

$

Not available

29

Jonsered 530071412

KIT-CYLINDER
(Superseded to 530012550)

$31.99

$

Usually ships in 3-10 days

0

30

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

31

Jonsered 530016187

SCREW

$6.49

$

Usually ships in 3-10 days

0

32

Jonsered 530049700

PARTITION

$7.49

$

In Stock, only 2 left!

0

33

Jonsered 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

34

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

530069722

Jonsered 530069722

CARBURETOR
(Superseded to 530071621)

$

$

Not available

530071621

Jonsered 530071621

KIT-CARBURETOR (WT-625)

$

$

Not available

37

Jonsered 530016101

NUT

$6.49

$

In Stock, Qty 8

0

38

Jonsered 530037793

AIR FILTER

$4.99

$

In Stock, Qty 20+

0

39

Jonsered 530031135

SCRENCH
(Superseded to 530031163)

$9.99

$

In Stock, Qty 17

0

40

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

530047630

Jonsered 530047630

DECAL STOP

$3.99

$

Usually ships in 3-10 days

0

530038317

Jonsered 530038317

LIMITER CAP (LOW-BLUE)

$3.99

$

Usually ships in 3-10 days

0

530038318

Jonsered 530038318

No Description Available

$3.99

$

In Stock, Qty 20+

0
