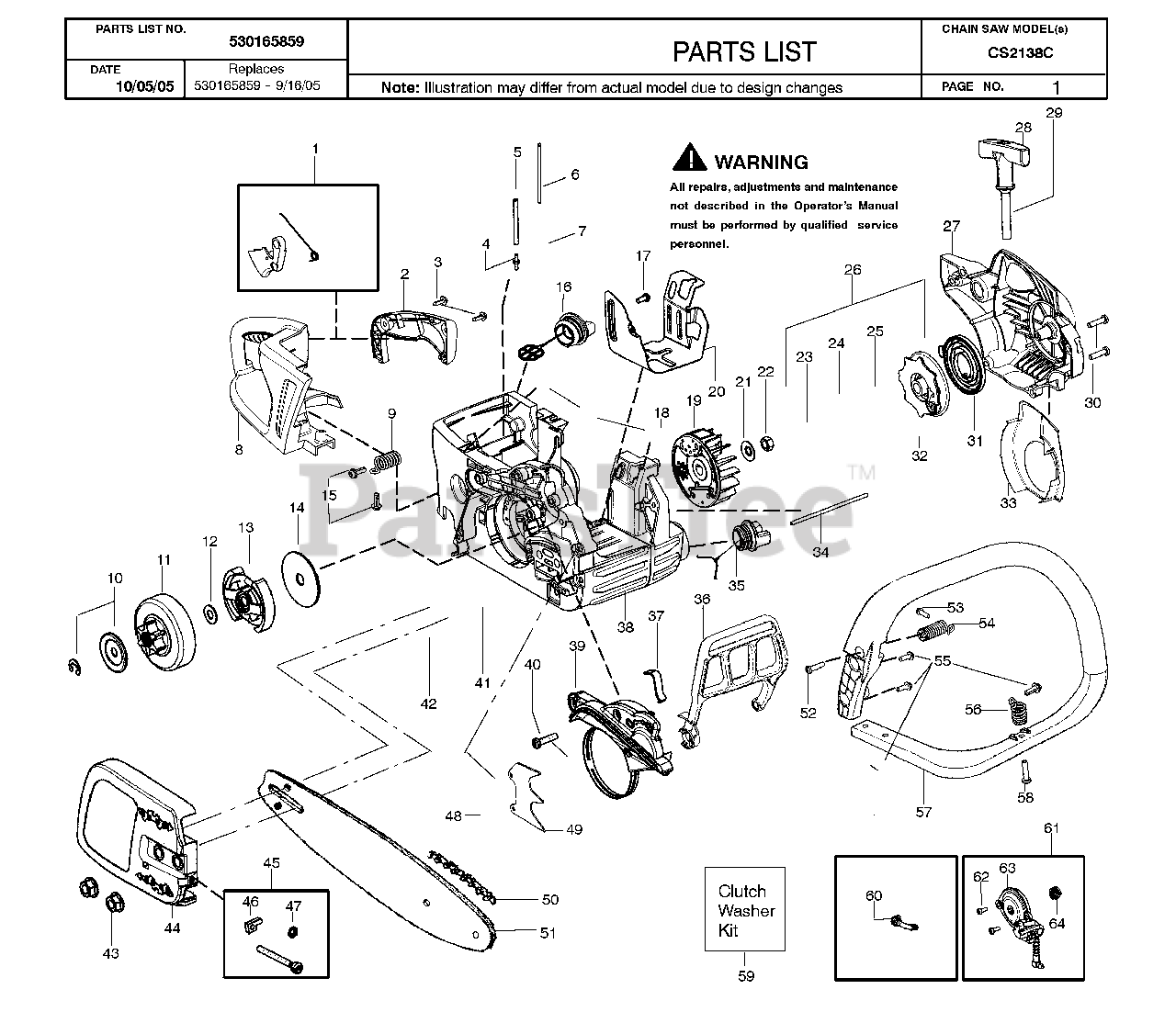

CS 2138 C - Jonsered Chainsaw (2006-01) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

1

Jonsered 530071927

KIT SAV TRIGGER & LOCKOUT

$10.99

$

In Stock, Qty 6

0

2

Jonsered 545011912

No Description Available

$

$

Not available

3

Jonsered 530016433

SCREW

$6.49

$

In Stock, Qty 5

0

4

Jonsered 530023877

FUEL LINE FITTING

$4.99

$

In Stock, Qty 19

0

5

Jonsered 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0

6

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

7

Jonsered 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

8

Jonsered 545012112

No Description Available

$

$

Not available

9

Jonsered 530059475

SPRING ISOLATOR

$8.99

$

Usually ships in 3-10 days

0

10

Jonsered 530071945

KIT SAS CLUTCH WASHER

$6.49

$

In Stock, Qty 18

0

11

Jonsered 530057905

ASSY CLUTCH DRUM 3/8
(Superseded to 501628301)

$9.99

$

In Stock, Qty 20+

0

12

Jonsered 530071945

KIT SAS CLUTCH WASHER

$6.49

$

In Stock, Qty 18

0

13

Jonsered 530057907

ASSY CLUTCH

$9.99

$

Usually ships in 3-10 days

0

14

Jonsered 530016419

WASHER CLUTCH LARGE

$6.49

$

In Stock, Qty 6

0

15

Jonsered 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, Qty 6

0

16

Jonsered 530047192

TANK CAP
(Superseded to 580940901)

$6.49

$

In Stock, Qty 20+

0

17

Jonsered 530016064

SCREW

$4.99

$

In Stock, Qty 6

0

18

Jonsered 530015922

CLIP

$6.49

$

In Stock, Qty 5

0

19

Jonsered 530039231

No Description Available
(Superseded to 573992801)

$

$

Not available

20

Jonsered 530057911

SHIELD HEAT

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 530015127

WASHER-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

22

Jonsered 530016134

NUT-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 530021179

SCREW SHOULDER

$6.49

$

Usually ships in 3-10 days

0

24

Jonsered 530059677

HUB STARTER EPS

$9.99

$

In Stock, Qty 9

0

25

Jonsered 530021180

SPRING EPS

$6.49

$

In Stock, only 4 left!

0

26

Jonsered 530071966

KIT EPS STARTER

$26.99

$

In Stock, Qty 12

0

27

Jonsered 545011708

No Description Available

$15.99

$

Usually ships in 3-10 days

0

28

Jonsered 530056402

HANDLE STARTER

$6.49

$

In Stock, only 2 left!

0

29

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

30

Jonsered 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 20+

0

31

Jonsered 530042095

SPRING STARTER
(Superseded to 545008013)

$6.49

$

In Stock, Qty 5

0

32

Jonsered 530016080

SCREW

$6.49

$

In Stock, Qty 11

0

33

Jonsered 530057868

BAFFLE FLYWHEEL

$6.70

$

Usually ships in 3-10 days

0

34

Jonsered 530058786

ASSEMBLY-OIL-VENT

$6.49

$

In Stock, only 1 left!

0

35

Jonsered 530057236

OIL TANK CAP

$

$

Not available

36

Jonsered 530057880

HANDGUARD CHAIN BRAKE
(Superseded to 585600601)

$

$

Not available

37

Jonsered 530016416

SPRING HANDGUARD

$6.49

$

In Stock, only 4 left!

0

38

Jonsered 545011808

No Description Available

$42.99

$

Usually ships in 3-10 days

0

39

Jonsered 530071893

KIT CHAIN BRAKE

$26.99

$

In Stock, Qty 13

0

40

Jonsered 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 20+

0

41

Jonsered 530016133

BOLT

$6.49

$

In Stock, only 4 left!

0

42

Jonsered 530057910

PLATE BAR MOUNTING

$4.99

$

In Stock, Qty 13

0

43

Jonsered 530015917

BAR NUT

$3.99

$

In Stock, Qty 20+

0

44

Jonsered 545012208

No Description Available

$15.99

$

Usually ships in 3-10 days

0

45

Jonsered 530069611

RETAINER

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 530015826

ADJUST PIN,BAR 36/41

$4.99

$

In Stock, Qty 20+

0

47

Jonsered 530038593

RETAINER

$4.99

$

In Stock, Qty 20+

0

48

Jonsered 530016439

SCREW

$6.49

$

In Stock, only 1 left!

0

49

Jonsered 530014381

SPIKE 36/41

$9.99

$

In Stock, Qty 16

0

52

Jonsered 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 20+

0

53

Jonsered 530016443

M5.0X0.8X16 TT TRX SEMS

$4.99

$

In Stock, only 1 left!

0

54

Jonsered 530059480

SPRING ISOLATOR ASSEMBLY

$7.49

$

In Stock, only 3 left!

0

55

Jonsered 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, Qty 6

0

56

Jonsered 530059479

SPRING ISOLATOR ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

57

Jonsered 530057878

HANDLE FRONT

$21.99

$

Usually ships in 3-10 days

0

58

Jonsered 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 20+

0

59

Jonsered 530071945

KIT SAS CLUTCH WASHER

$6.49

$

In Stock, Qty 18

0

60

Jonsered 530057924

ASSY PICK UP OIL TANK

$6.49

$

In Stock, Qty 11

0

61

Jonsered 530071891

KIT OIL PUMP

$31.99

$

In Stock, only 3 left!

0

62

Jonsered 530016064

SCREW

$4.99

$

In Stock, Qty 6

0

63

Jonsered 530057931

ASSY OIL PUMP
(Superseded to 581071401)

$17.99

$

Usually ships in 3-10 days

0

64

Jonsered 530037820

WORM GEAR

$6.49

$

In Stock, only 4 left!

0
